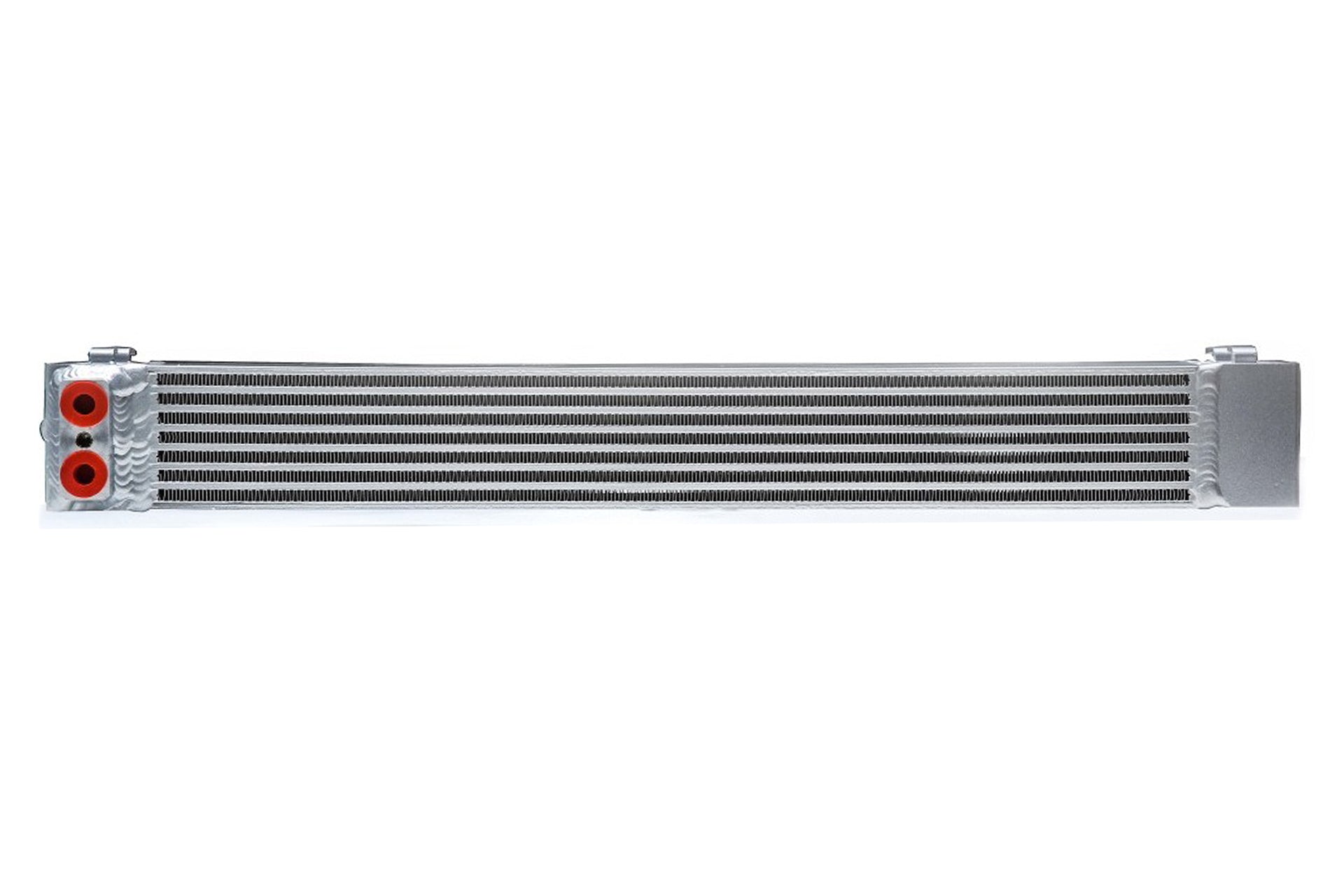

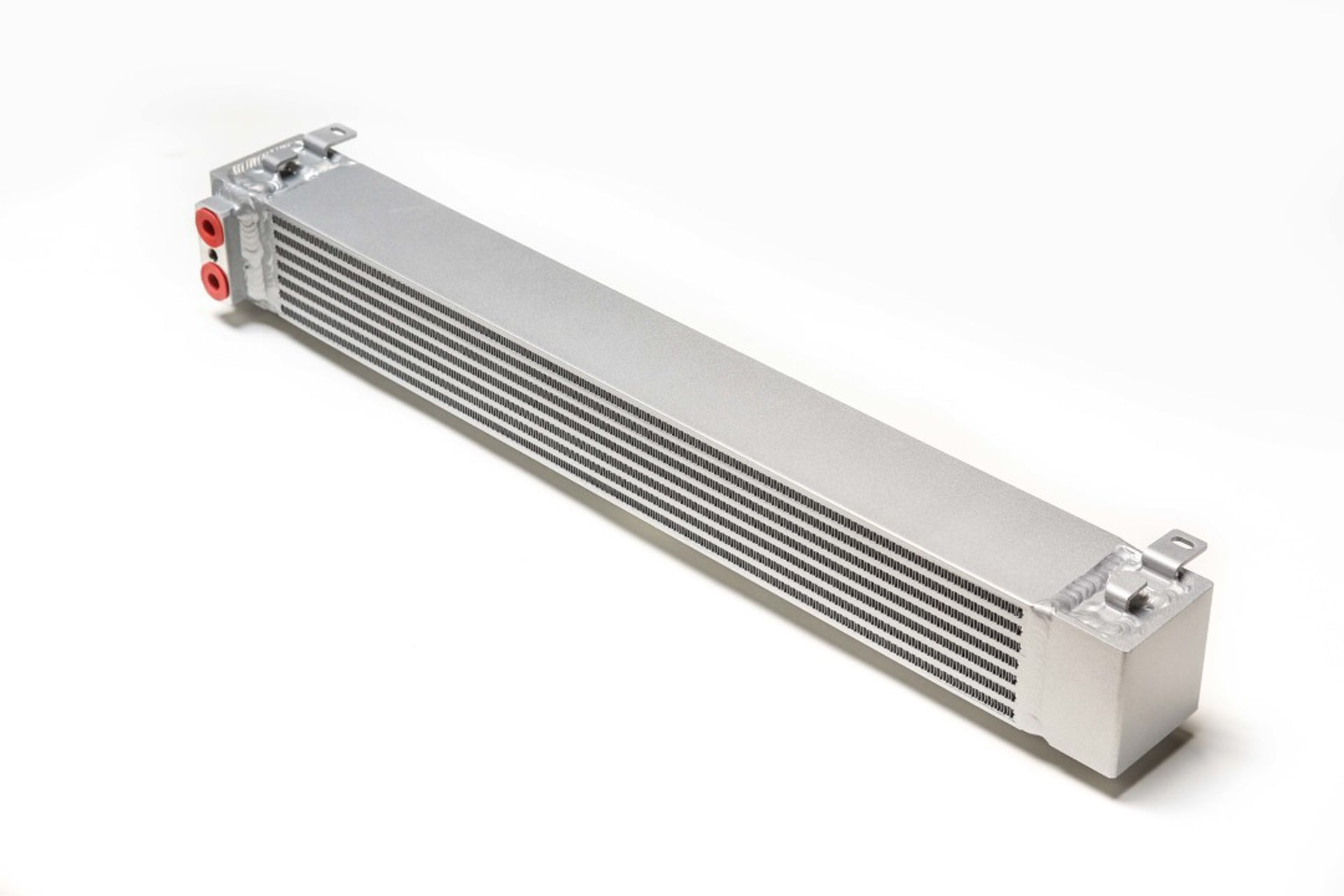

BMW E46 M3 / E39 M5 Race-Spec Dual-Pass Oil Cooler

The CSF x Rogue oil cooler uses a Bar & Plate construction (vs. tube and fin) in a top/bottom configuration. The Bar & Plate design makes the cooler much more robust and able to take abuse from debris hitting it at high speeds on the road or track. The cooler uses extruded end tanks which means it is a much stronger design than simple bent aluminum sheet construction found on the oem unit. The cooler is a bolt on design for the factory radiator or the CSF High-Performance Radiators (E46 M3 - CSF #7058 / E39 M5 - #7064) and uses the factory oil cooler lines.

• Designed, Developed, and Track Proven in Collaboration with BMW M3 Tuning Specialist and Parts Manufacturer, Rogue Engineering
• Replaces OEM Unit Single-Pass Design and Plastic Shroud with a Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
• "Drop-in Fit" Requiring No Modifications to Install - Accepts Factory Oil-Line Connections

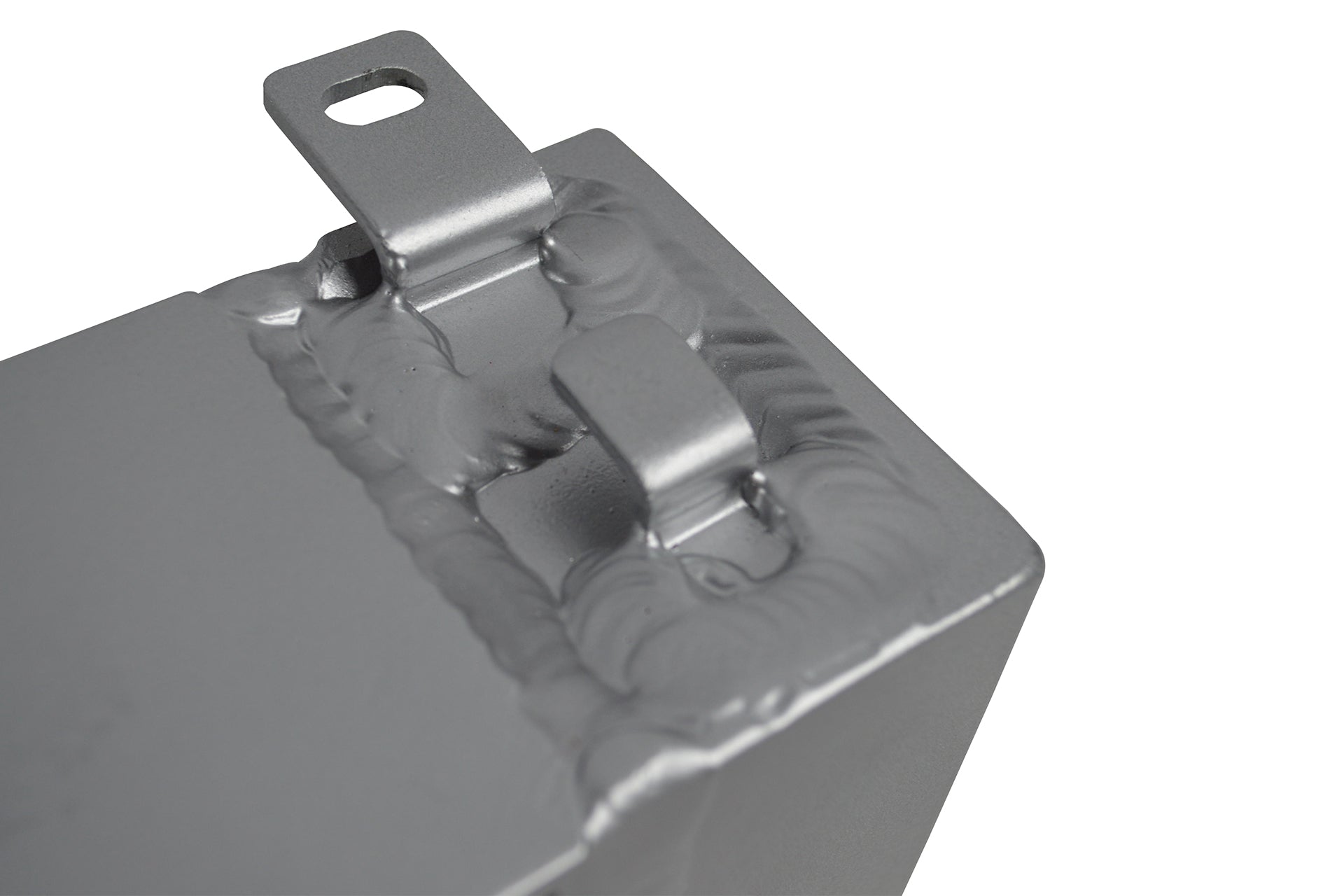

• Fully TIG-Welded Extruded-Endtank Design vs. OEM Mechanically Jointed and Tack-Welded Design for Superior Reliability & Durability
• Fits Precisely with the Contour of the OEM Bumper - No Issues with Aftermarket Splitter Attachment
• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available for the Platform
• 8 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
• Designed to Work with OEM Radiator Brackets or CSF's All-Aluminum Triple-Pass Radiator (CSF #7058)
• Motorsport Silver Finish

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353080320
• ADD-ON: 8241
• Cable Included: No
• Color: Motorsport Silver Finish
• Core Charge Applicable: No
• Core Color: Gray
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Tube: No
• Core Type: Bar-and-Plate
• Finish: Powder Coat
• Grade Type: Performance
• Inlet Fitting Type: OE Type Connection
• Inlet Gender: Male
• Installation Type: Drop-In Fit Installation
• Mounting Hardware Included: No
• Outlet Fitting Gender: Female
• Outlet Fitting Type: OE Type Connection
• Strap Included: No
• Tube Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 29 x 7 x 7 inches
• Weight: 11 POUNDS
