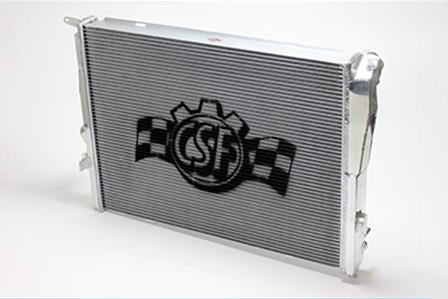

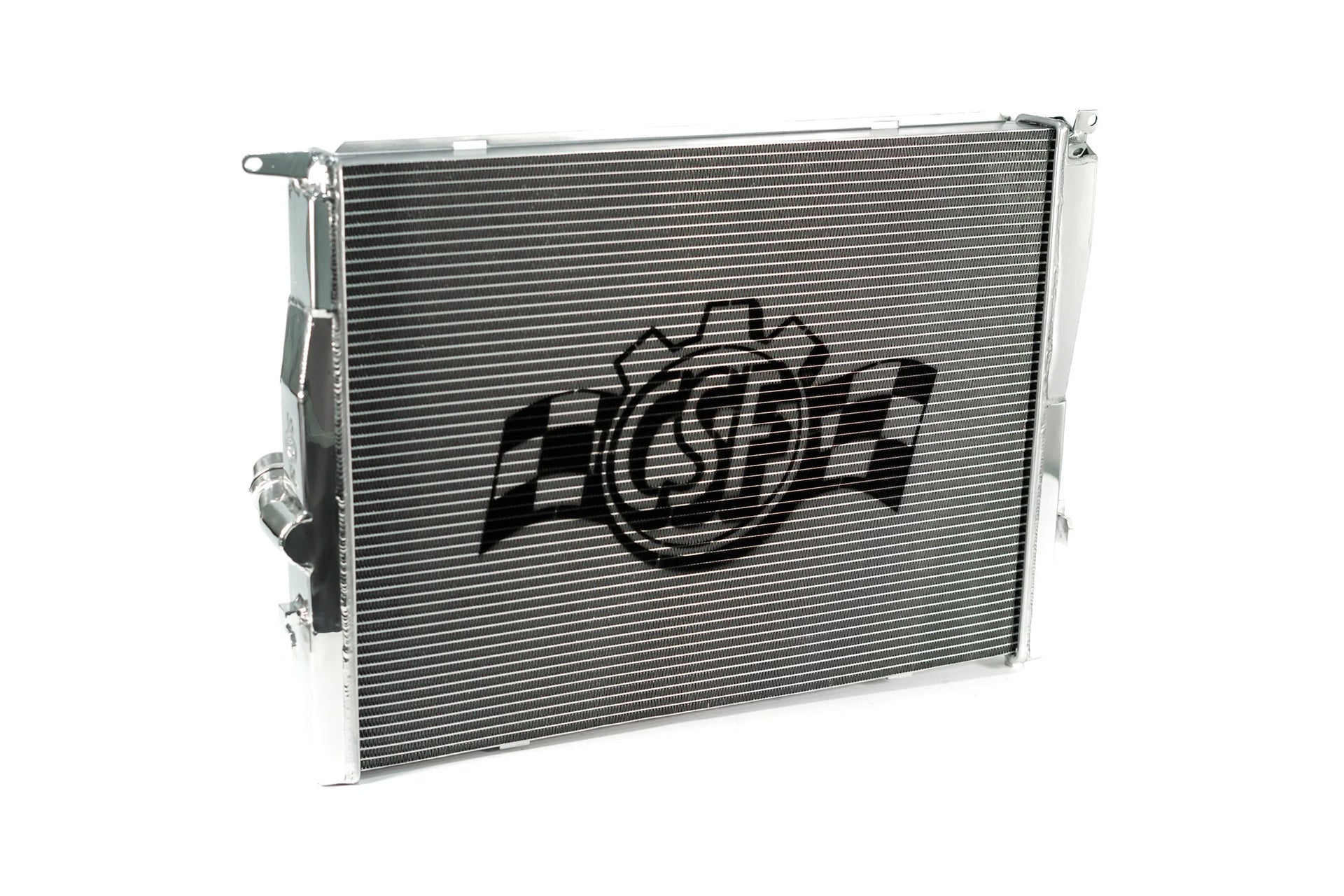

Continue shoppingBMW E9X M3 Triple Pass High-Performance All-Aluminum Radiator
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$645.00
-0%
Regular price
$645.00
Regular price
$645.00
Unit price
per
Couldn't load pickup availability
Fast Shipping
Free Returns
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
The CSF E9X M3 radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket.
- 2 Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- Triple-Pass Flow Structure Allows the Coolant to Flow Across the Core of the Radiator Three Times Before Exiting for Lowest Outlet Temperatures Possible
- CNC Machined "Quick-Connect" Inlet/Outlet Connections
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- All-Aluminum Race Style Drain Plug
- Smooth Satin Finish
- "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
- Replaces OEM Part Number: 17112283468
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353070598
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 23.625 in.
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.625 in.
- Core Width: 18 in.
- Down Flow Or Cross Flow Type: Cross Flow
- Finish/Color: Satin
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Quick Connect
- Inlet Diameter: 1.5 in.
- Inlet Location: Top Right
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Quick Connect
- Outlet Diameter: 1.5 in.
- Outlet Location: Bottom Left
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
Extended Information:
- Country of Origin: ID
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 30 x 7 x 23 inches
- Weight: 16 POUNDS
