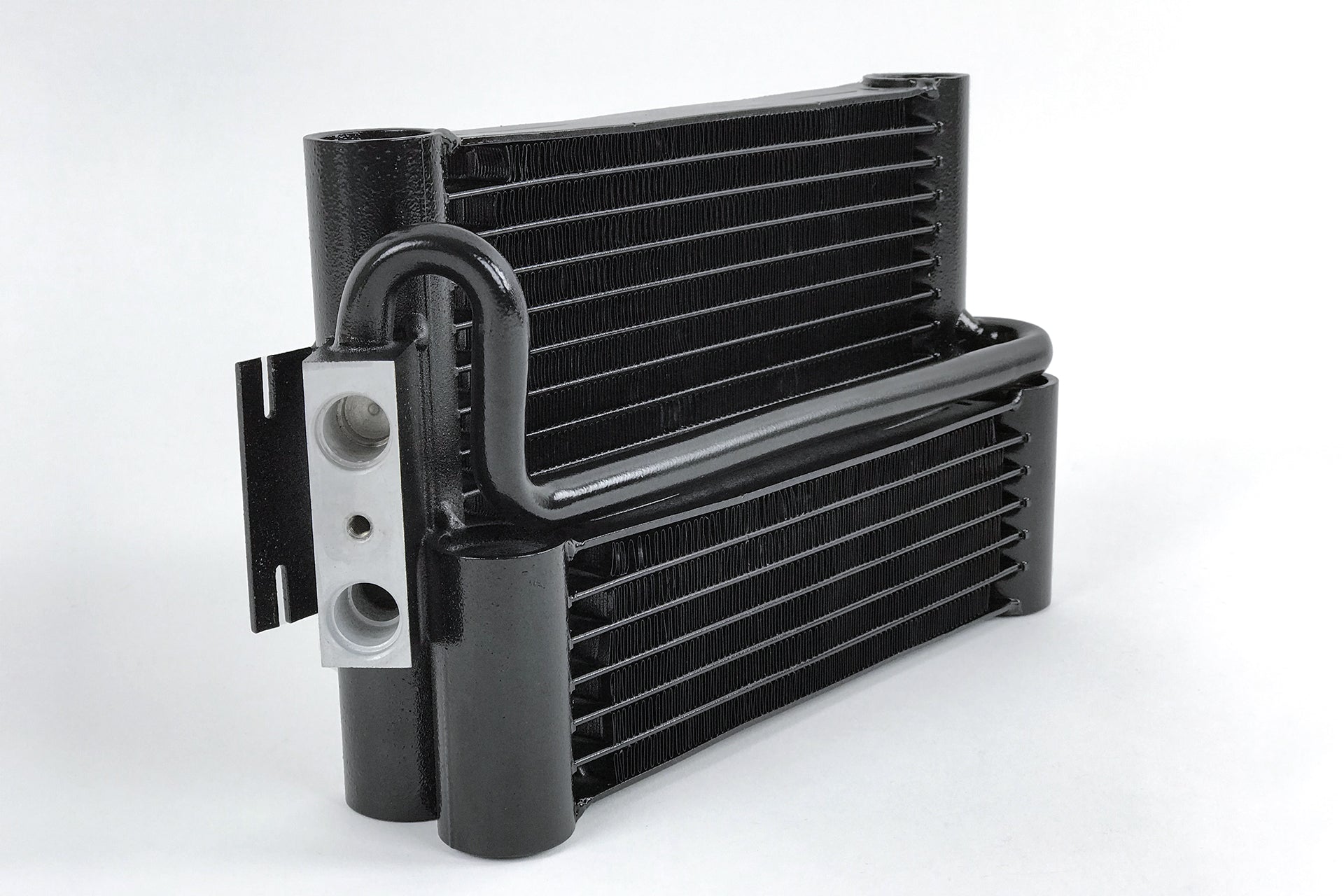

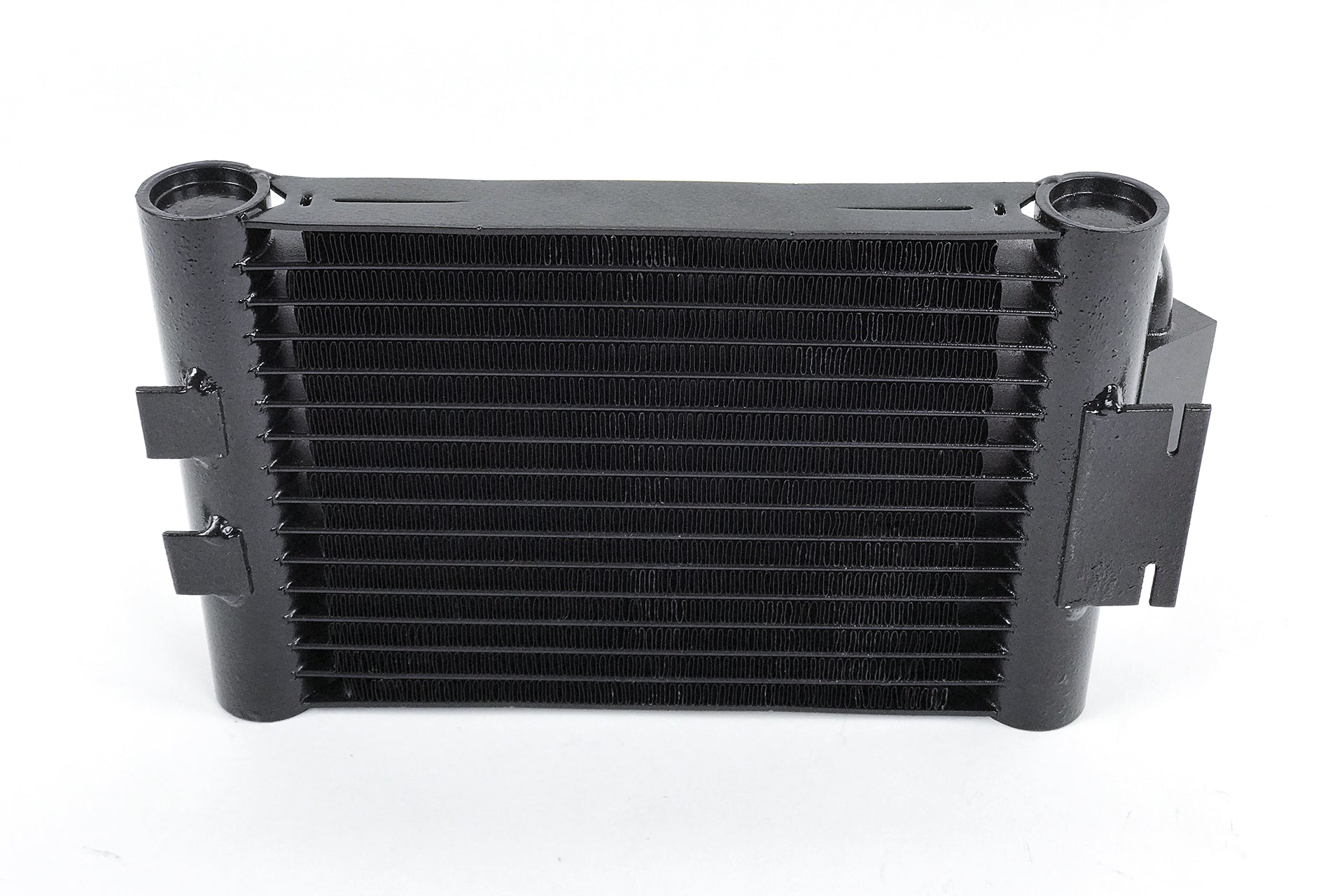

Utilizing CSF's AC Condenser technology, their innovative dual-core in-series system features an additional 5 rows of super-high pressure multi-channel micro-tubes on the rear side of the oil cooler. The high performance tube spec, along with the high-efficiency multi-louvered fin design allows for maximum surface area contact and an approximate 40% increase in heat rejection. The High-Performance Race-Spec Oil Cooler directly replaces the factory unit, easily bringing engine oil temperatures down to a consistent and manageable level, even under extreme & extensive driving conditions.
- Innovative 2-Core In-Series System
- Secondary In-Series Backside Cooler has an Additional 5 Rows of Cooling for a 40% Increase in Heat Rejection
- Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 26mm Multi-Channel Microtube
- High-Density Multi-Louvered Fin Design for Maximum Surface Area Contact
- Converted to a Single-Pass Design with High Pressure Return Line for Optimal Flow
- "Drop-In Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including Oil-Line Connections, Mounting Brackets and Shroud/Ducting
- World's 1st and Only True "Plug-And-Play" Upgraded Engine Oil Cooler for the BMW N55 Engine
- Track Tested and Proven by Hittman Racing's M235iR Endurance Race Car
- Requires Additional Half Quart for Proper Fill-up During Installation (OEM Cooler: 7 Qts./ CSF's Upgrade Race-Spec N55 Oil Cooler: 7.5 Quarts)
Attributes:
-
Brand Name: CSF Cooling - Racing & High Performance Division
-
GTIN: 00710353081457
-
Cable Included: No
-
Color: Black
-
Core Charge Applicable: No
-
Core Color: Black
-
Core Material: Aluminum
-
Core Row Quantity: 2
-
Core Tube: No
-
Core Type: Tube-and-Fin
-
Finish: Paint
-
Grade Type: Performance
-
Inlet Fitting Type: OE Type Connection
-
Inlet Gender: Female
-
Installation Type: Drop-In Fit Installation
-
Mounting Hardware Included: No
-
Outlet Fitting Gender: Female
-
Outlet Fitting Type: OE Type Connection
-
Strap Included: No
-
Tube Included: No
Extended Information:
-
Country of Origin: China
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 16 x 4 x 11 inches
-
Weight: 4 POUNDS
