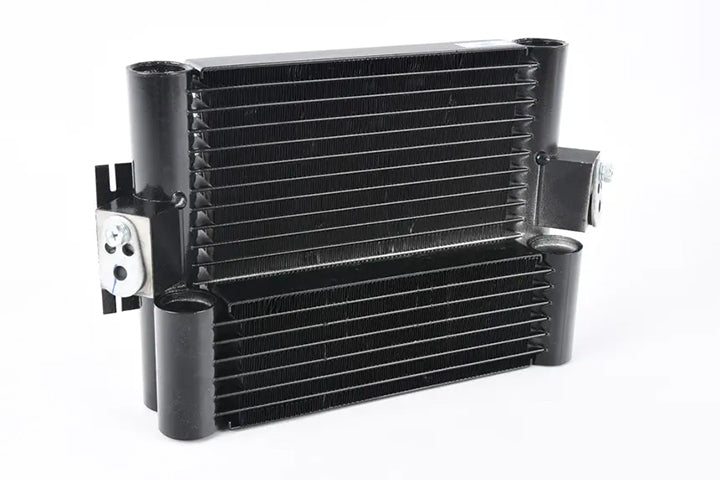

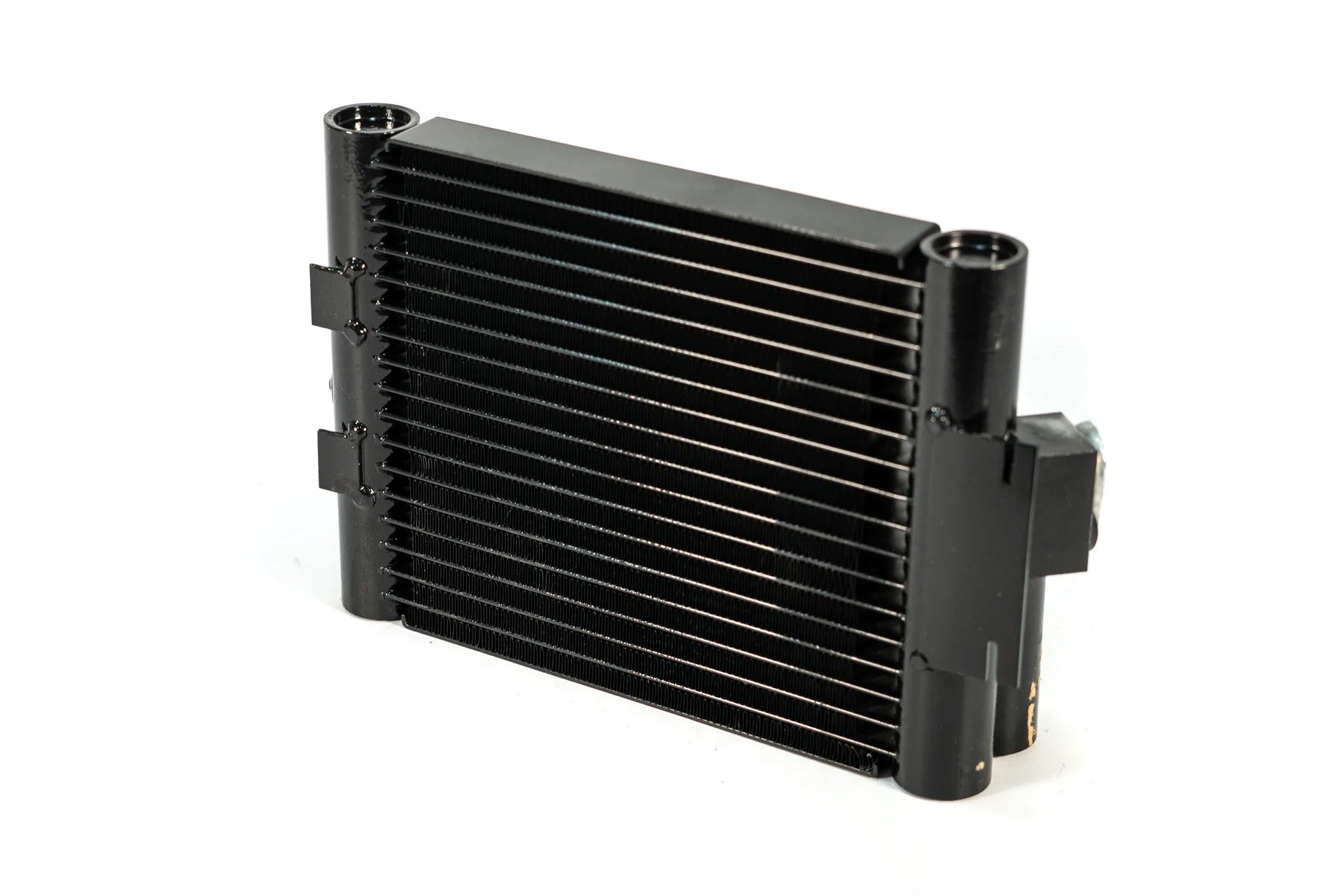

BMW F87 M2 (N55) Race-Spec Oil Cooler

BMW M drivers demand nothing but the best from and for their vehicles. While the F87 M2 (N55) is very capable on the street and track, it does suffer from heat issues in extreme conditions. Extensive track testing reveals the engine oil temps reaching upwards of 280? which will send the M2 into limp mode. The CSF Oil Cooler has been track tested in 103? (115 ? Heat Index) and keep the oil temps much lower than factory with a maximum temperature recorded at 240? throughout testing. The extra cooling performance is accomplished in a design that is a true "drop-in fit" requiring no modifications to install. It accepts all attaching oem components including oil-line connections, mounting brackets and shroud/ducting. This is accomplished by utilizing CSF's AC Condenser Technology with a 1-Row super-high pressure 26mm multi-channel microtube. The front full-size core has 17 cooling tubes vs. oem 15 tubes while the backside cooler has an additional 6 rows. This also increases the overall oil volume of the system by 0.5 quarts (0.47 liters).

• Innovative 2-Core In-Series System
• Additional Half Quart of Oil Required for Proper Fill-up During Installation (OEM Cooler 7 Qts./CSF's Upgraded Race-Spec M2 Oil Cooler Requires 7.5 Qts.)
• Front Full-Size Core has 17 Cooling Tubes vs. OEM 15 Tubes
• Secondary In-Series Backside Cooler has an Additional 6 Rows of Cooling
• Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 26mm Multi-Channel Microtube
• High-Density Multi-Louvered Fin Design for Maximum Surface Area Contact
• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including Oil-Line Connections, Mounting Brackets and Shroud/Ducting
• World's 1st and Only True "Plug-and-Play" Upgraded Engine Oil Cooler for the BMW N55 Engine in the BMW F87 M2 (2016+)
• Track Tested in 103? (115 ? Heat Index) - Max. Oil Temperature Achieved 240?
• This is a Reduction from 275/280? Track Oil Temperatures (Limp Mode) When Testing with the Upgraded CSF Cooler on the Vehicle vs. the OEM Cooler

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353081044
• ADD-ON: 8355
• Cable Included: No
• Color: Black
• Core Charge Applicable: No
• Core Color: Black
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 26mm
• Core Tube: No
• Core Type: Tube-and-Fin
• Finish: Paint
• Grade Type: Performance
• Inlet Fitting Type: OE Type Connection
• Inlet Gender: female
• Installation Type: Drop-In Fit Installation
• Mounting Hardware Included: No
• Outlet Fitting Gender: Female
• Outlet Fitting Type: OE Type Connection
• Strap Included: No
• Tube Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 4 x 11 inches
• Weight: 4 POUNDS
