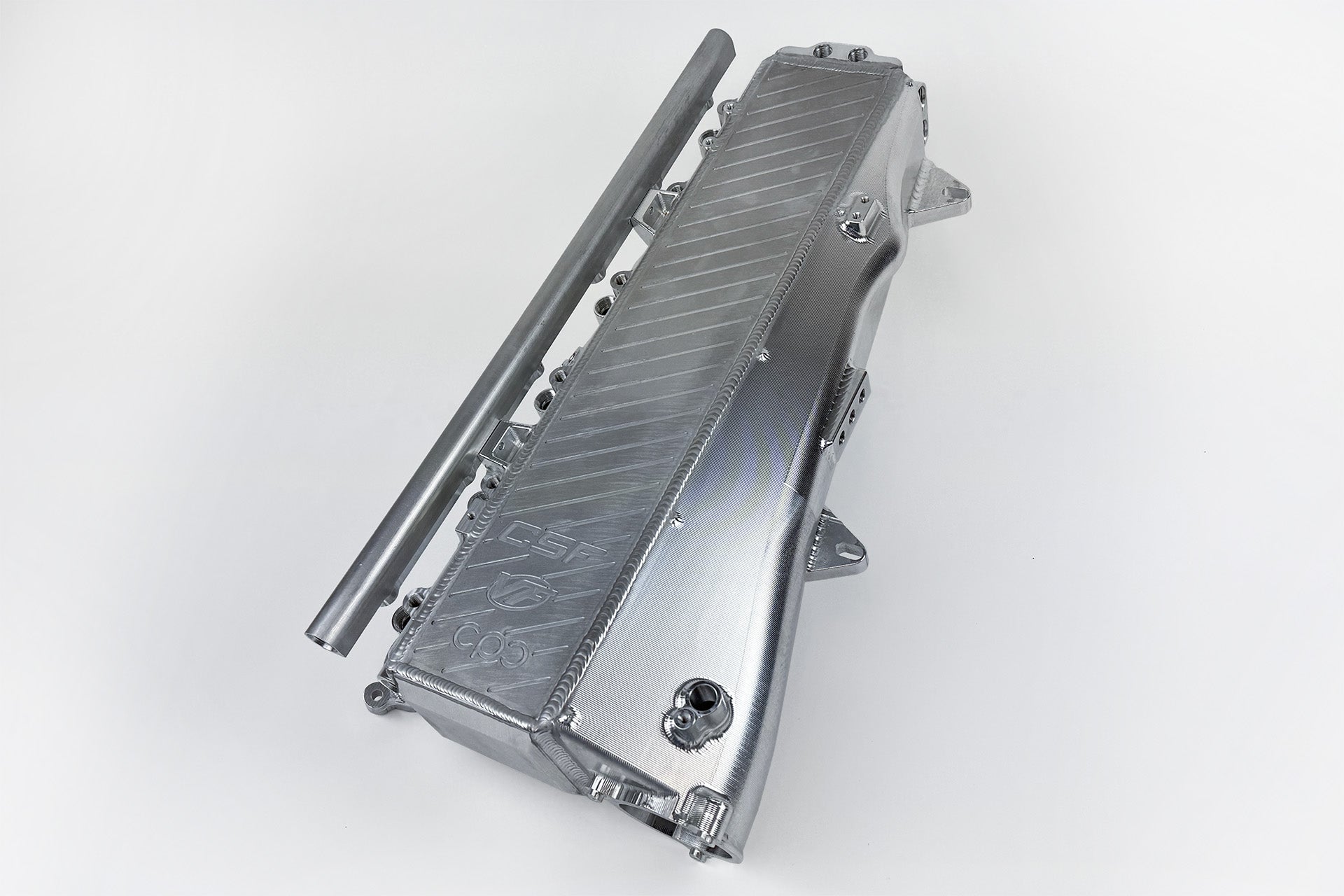

BMW Gen 1 B58 Charge Air Cooler Manifold - Custom Finish

Thermal Rejection Competition Spacer: Made from KIYLEX, a patented revolutionary high-performance final stage polymer. KIYLEX is as strong as aluminum and can withstand temperatures up to 1100 deg F. This spacer is designed to insulate the intake manifold from conductive heat transfer from the cylinder head. This thermal barrier reduces manifold temperatures which helps lower Intake Air Temperatures (IATs), improve charge air cooler efficiency, and combats heat soak. CSF is the exclusive distributor for the KIYLEX Intake Manifold Spacer for the B58 Motor.

• Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
• Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
• Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
• Plug-and-Play design, Requiring No Modifications to Install

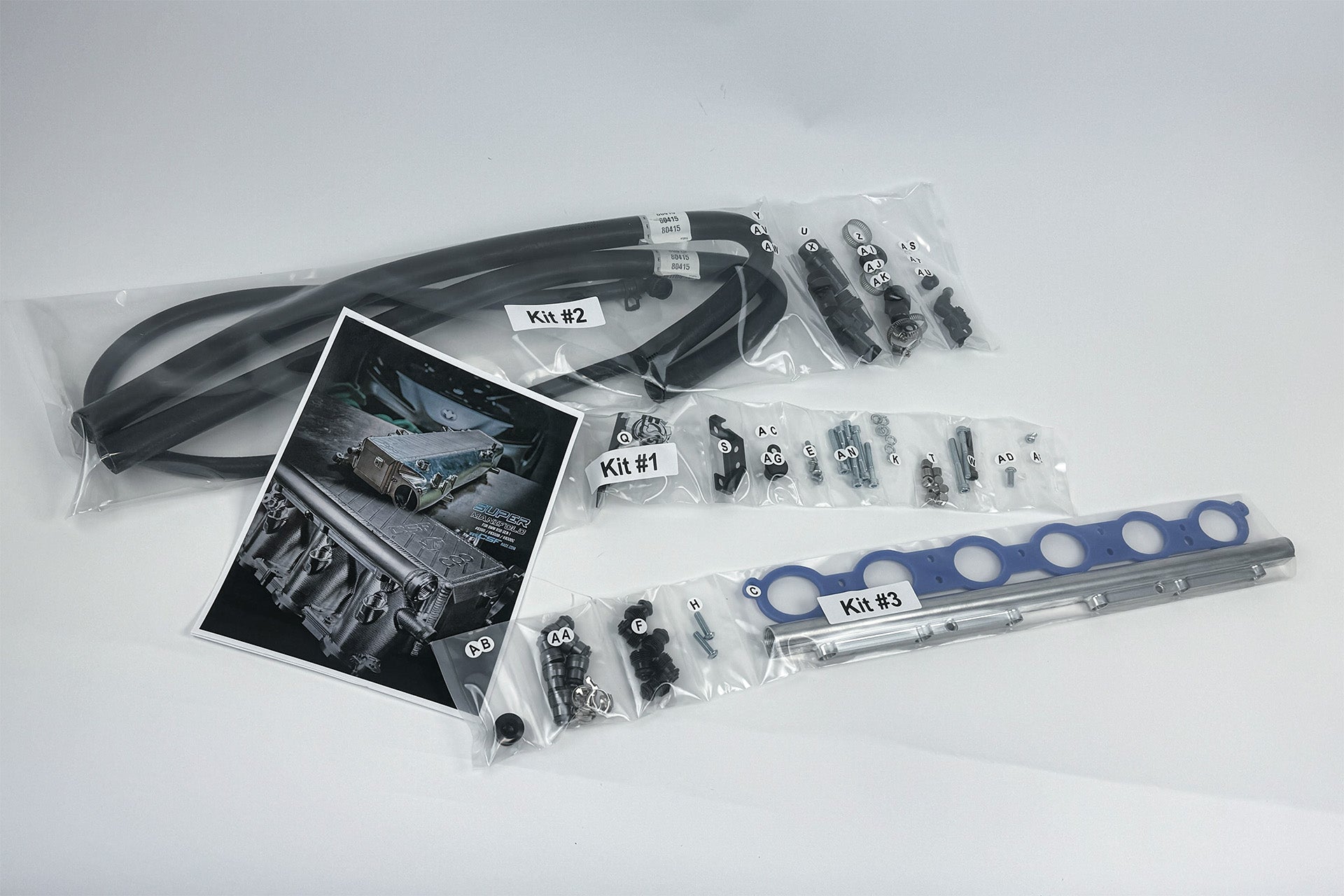

• Includes Hardware and Installation Kit with Picture Diagrams Containing 32 Different Parts for Easy Installation

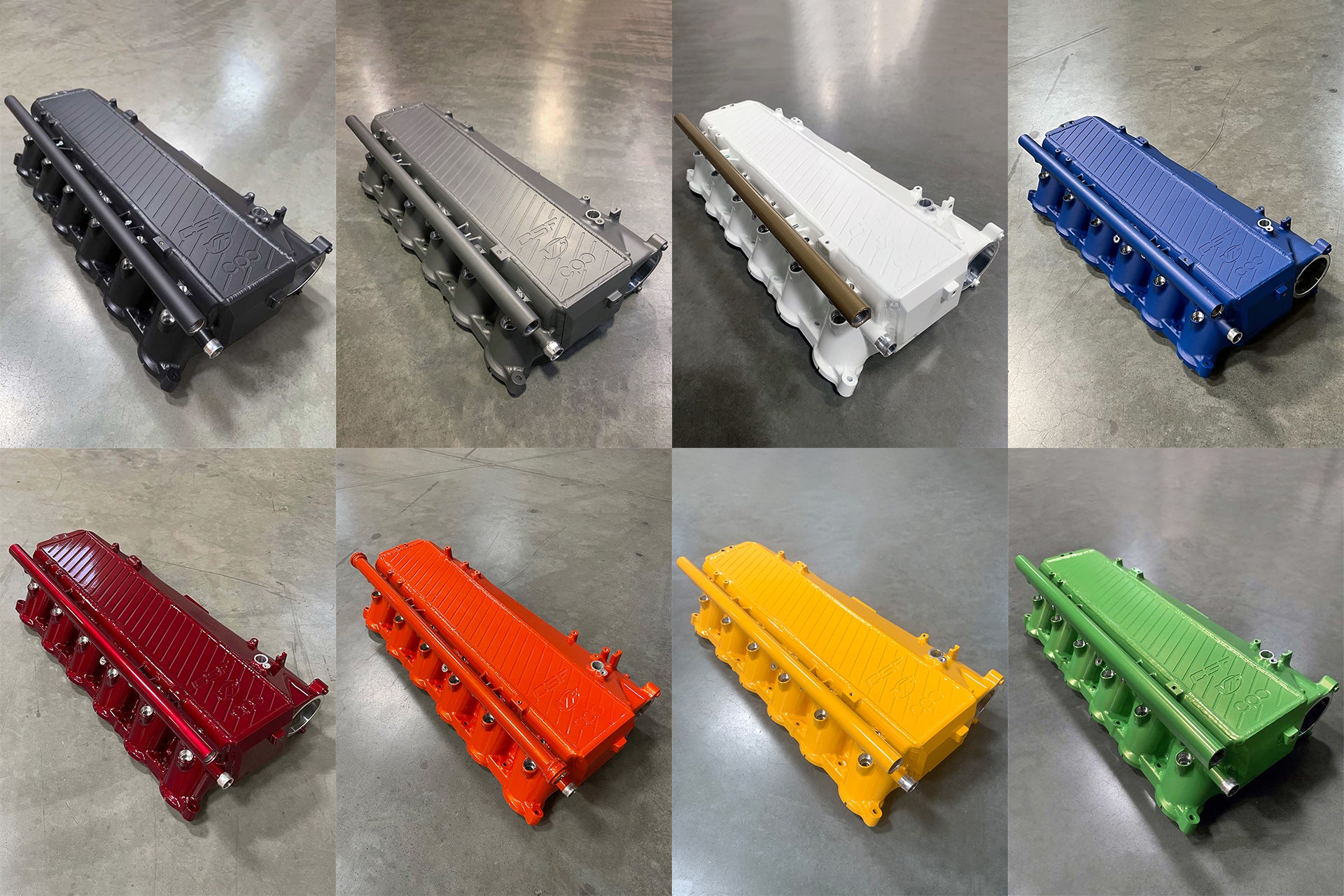

• Custom Finish (Available in Raw Billet - CSF #8300 or Thermal Black Heat Dispersion Cerakote - CSF #8300B)
• Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
• Significantly Lower Pressure Drop Across the Core Compared to OEM
• Designed in SolidWorks Using Computational Fluid Dynamics (CFD) - Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
• Improved slotted mounting holes on throttle body side for easier installation.
• Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change - Counter Balanced Design for Optimized Airflow
• Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters
• Included Optional Fuel Rail for Top Feed Port Injection
• Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
• Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353083000
• ADD-ON: 8131
• Color: Custom FInish
• Core Color: Raw Aluminum
• Core Height: 101mm
• Core Length: 103mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 101mm
• Core Width: 540mm
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Tank Material: Billet Aluminum
• Installation Type: Drop-In Fit Installation
• Mounting Hardware Included: Yes
• Outlet Fitting Gender: Male
• Outlet Thread Size: 3/4" - 10
• Outlet Thread Type Standard: UNC
• Outlet Type: Threaded Fitting
• Type: Air-to-Water
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: Australia
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 28 x 15 x 10 inches
• Weight: 22 POUNDS
