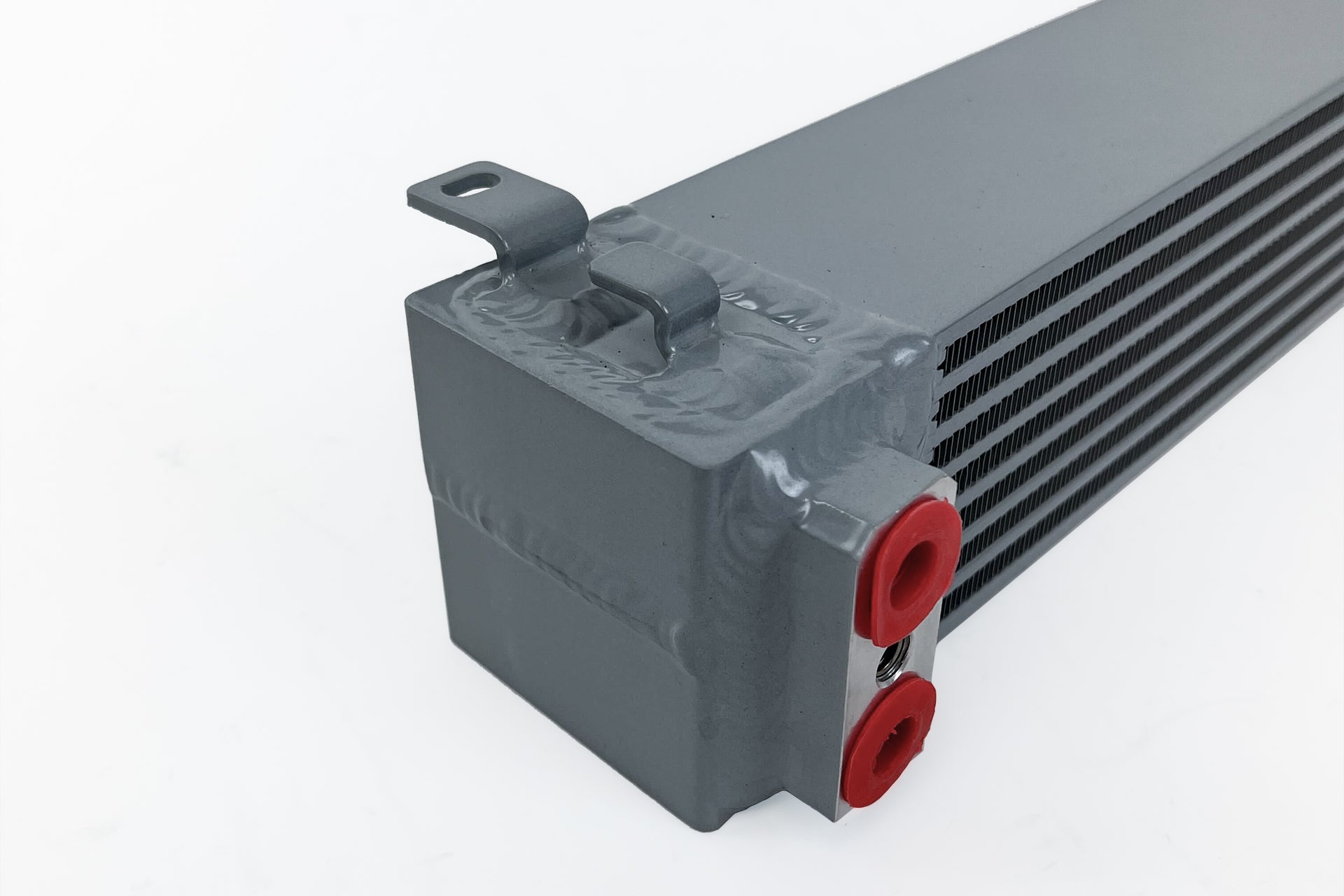

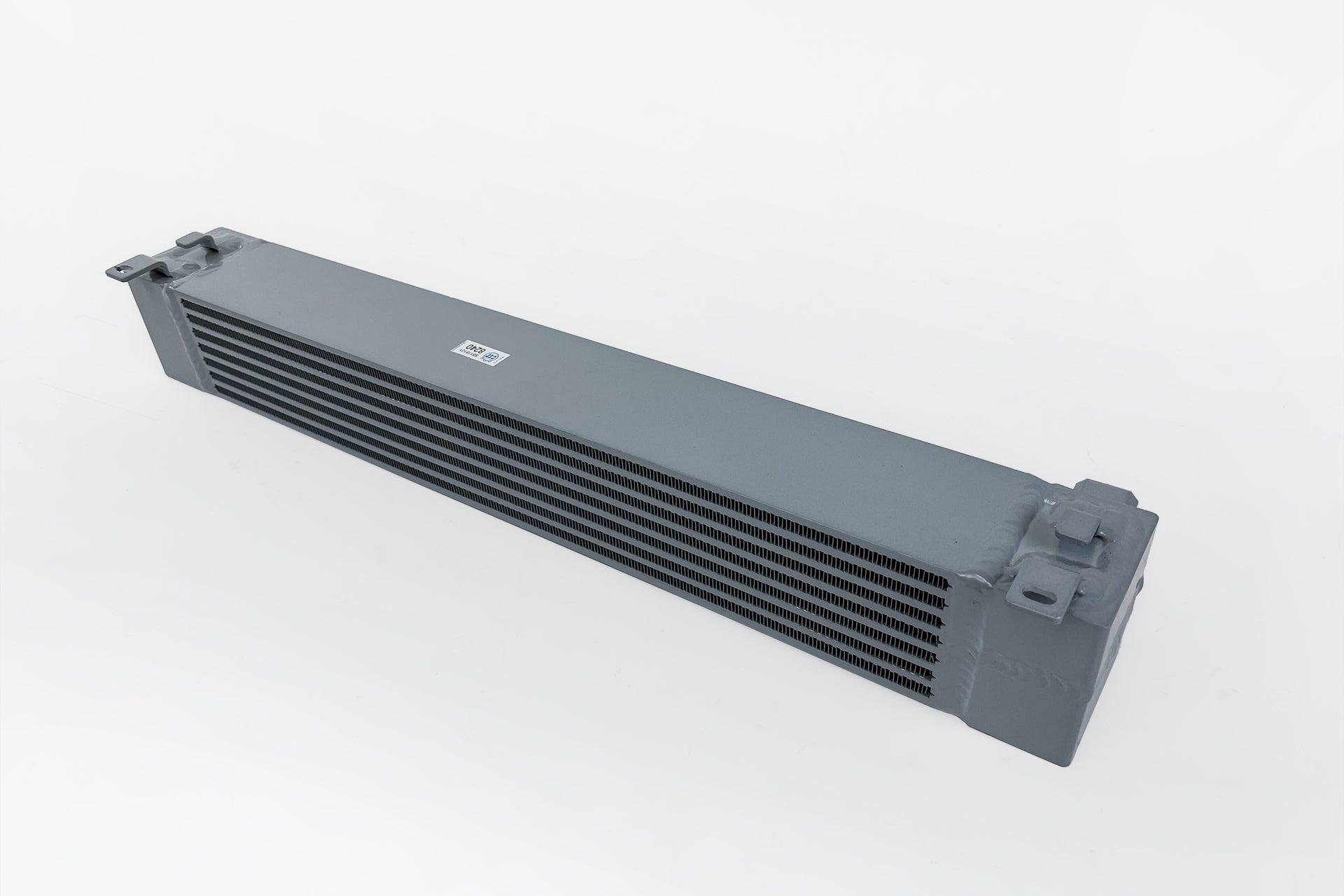

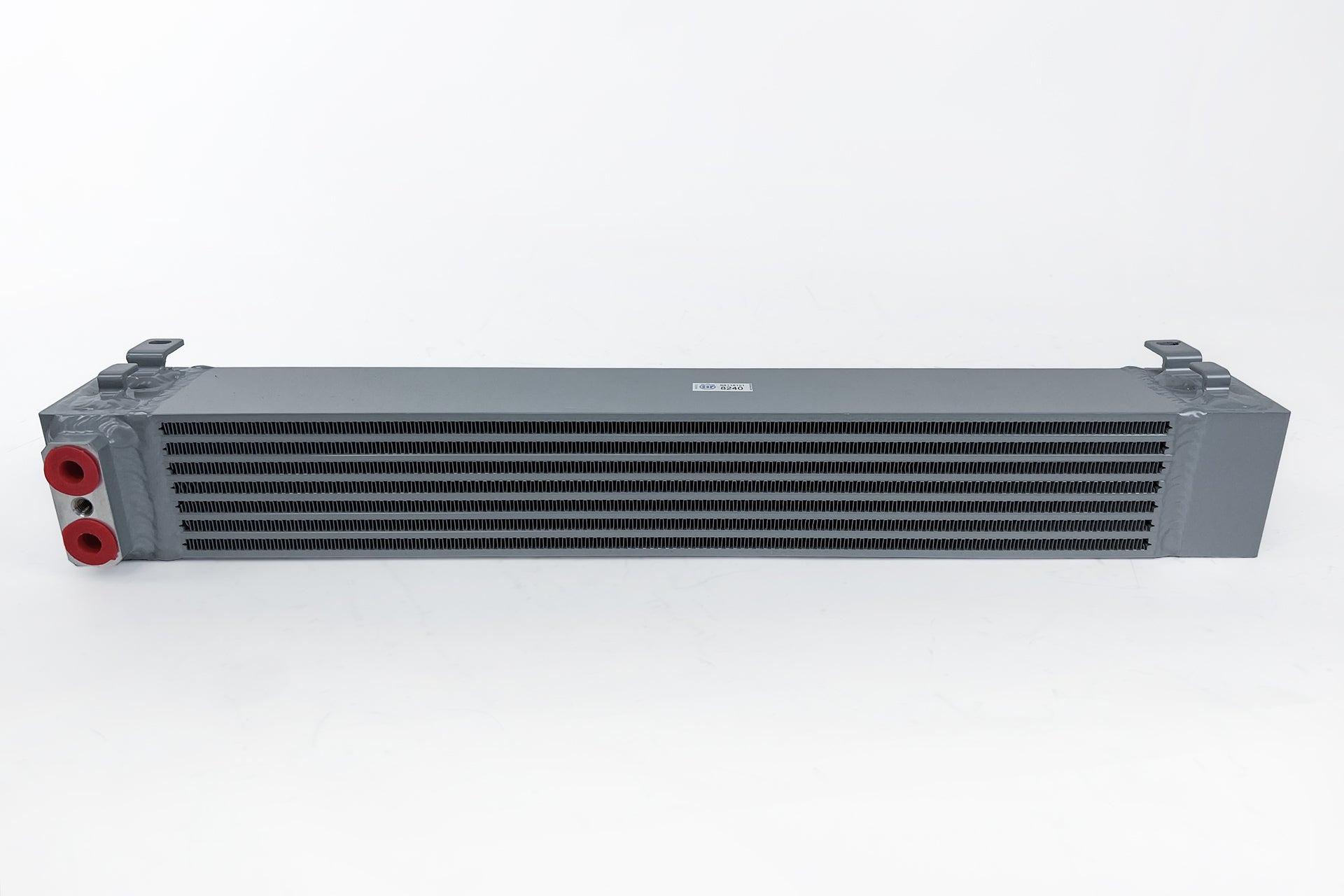

BMW S54 Swap E36 Race-Spec Dual-Pass Oil Cooler

Enter the new CSF S54 Swap Race Spec Oil Cooler. This new oil cooler is shorter on the right hand side allowing owners to run the A/C lines in the OEM path. Even though the #8240 is slightly smaller than the #8032, you can expect similar performance levels as they both feature a dual pass design with 8 cooling rows and are the same turbulated heavy-duty bar/plate construction. Both oil coolers utilize the S54 OEM oil line connections. However, CSF will be offering a fitting kit with -10 AN hookups for customers looking to run custom oil lines. This fitting kit should be available by the second quarter of 2023.

• Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
• Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
• 8 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
• Designed to Work with CSF's S54 Swap All-Aluminum Radiator (CSF #7211)
• Motorsport Silver Finish
• Accepts Factory Oil-Line Connections
• For S54 Swap Vehicles with Air Conditioning (A/C)
• For S54 Swap Vehicles without Air Conditioning (A/C) see CSF #8032

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353082409
• ADD-ON: 8241
• Cable Included: No
• Color: Motorsport Silver Finish
• Core Charge Applicable: No
• Core Color: Gray
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 75mm
• Core Tube: No
• Core Type: Bar-and-Plate
• Finish: Powder Coat
• Grade Type: Performance
• Inlet Fitting Type: OE Type Connection
• Inlet Gender: Female
• Installation Type: Engine Swap Application
• Mounting Hardware Included: No
• Outlet Fitting Gender: Female
• Outlet Fitting Type: OE Type Connection
• Strap Included: No
• Tube Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 7 x 7 inches
• Weight: 10 POUNDS
