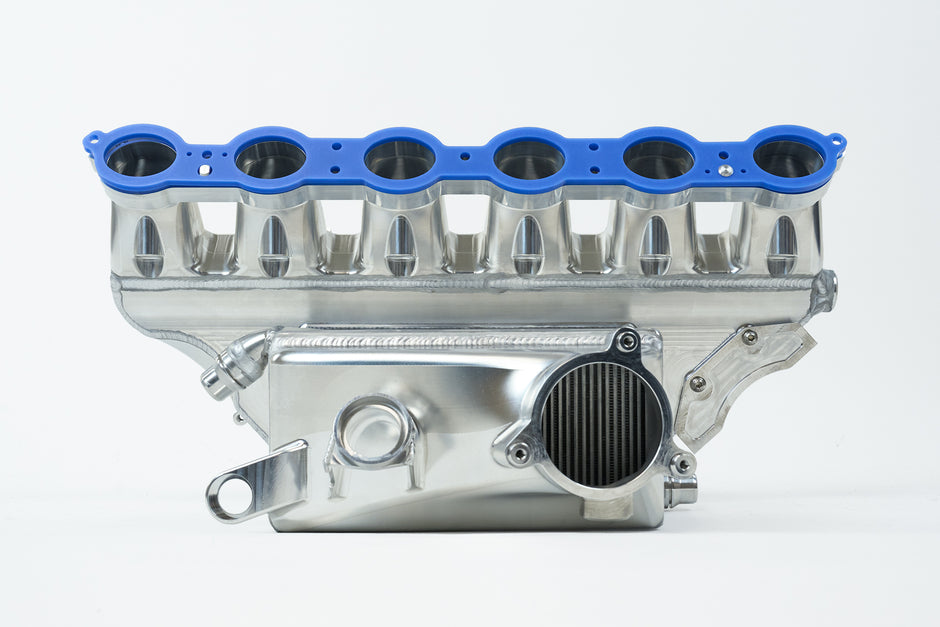

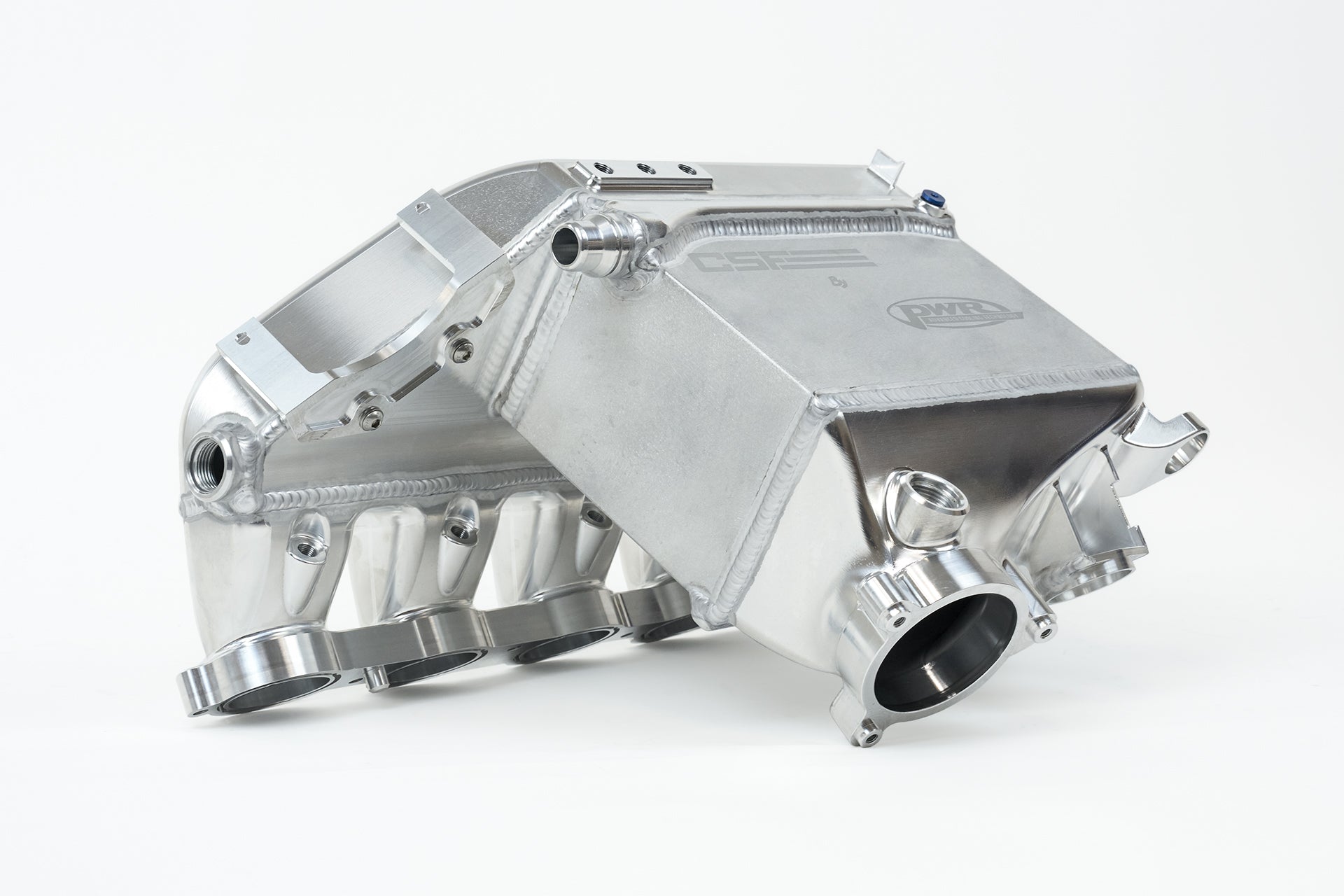

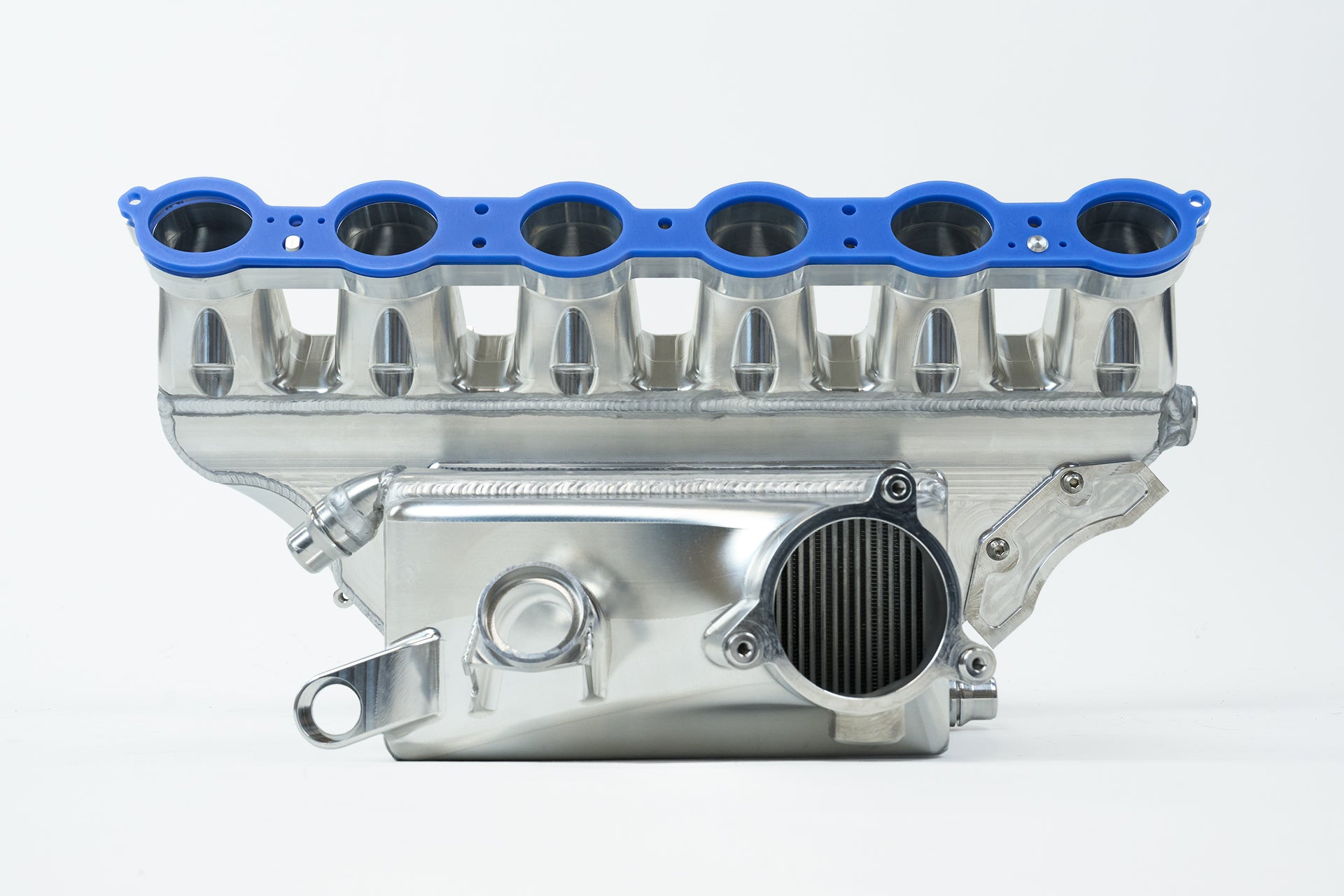

BMW S58 "Level-Up" Charge Air Cooler Manifold - Raw Billet

• Reduced Intake Air Temperatures (IATs) compared to OEM
• Integrated port injection with fuel rail (provided with block-off bungs if not running port injection)
• Integrated nitrous ports (provided with block-off bungs if not running nitrous)
• Integrated hose stand-offs for proper routing of EVAP hoses across manifold
• Integrated coolant reservoir mounting locations on rear of manifold for perfect fitment
• Various wire harness provisions for perfect routing of wiring harness around manifold
• Integrated bleeder screw
• OEM teeth on intake manifold flange for secure seating of gaskets
• Machined coolant hose quick connects
• Removable machined engine cover pin for perfect fitment with engine cover
• Raw Billet Aluminum Finish
• Less pressure drop compared to OEM core
• All necessary brackets, hardware, and instructions to install
• Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core
• High performance bar/plate intercooler core by PWR pressure tested to 120psi
• KYLEX thermal spacer for the best resistance to heat soak of the manifold.
• Perimeter pad machined into top of intake manifold for up to 3 additional sensors
• Rear of the intake manifold has been clearance for easy access to the engine oil filter
• CNC front wire harness bracket for OEM fitment and slotted easy installation
• Upper crank case ventilation adapter and Lower crank case ventilation adapter

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353082331
• ADD-ON: 8266
• Color: Raw Billet Aluminum
• Core Color: Raw Aluminum
• Core Length: 152mm
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 110mm
• Core Width: 239mm
• Fins Per Inch: 28 Fins/Inch
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Tank Material: Billet Aluminum
• Installation Type: Drop-In Fit Installation
• Mounting Hardware Included: Yes
• Outlet Fitting Gender: Male
• Type: Air-to-Water
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 16 x 18 inches
• Weight: 26 POUNDS
