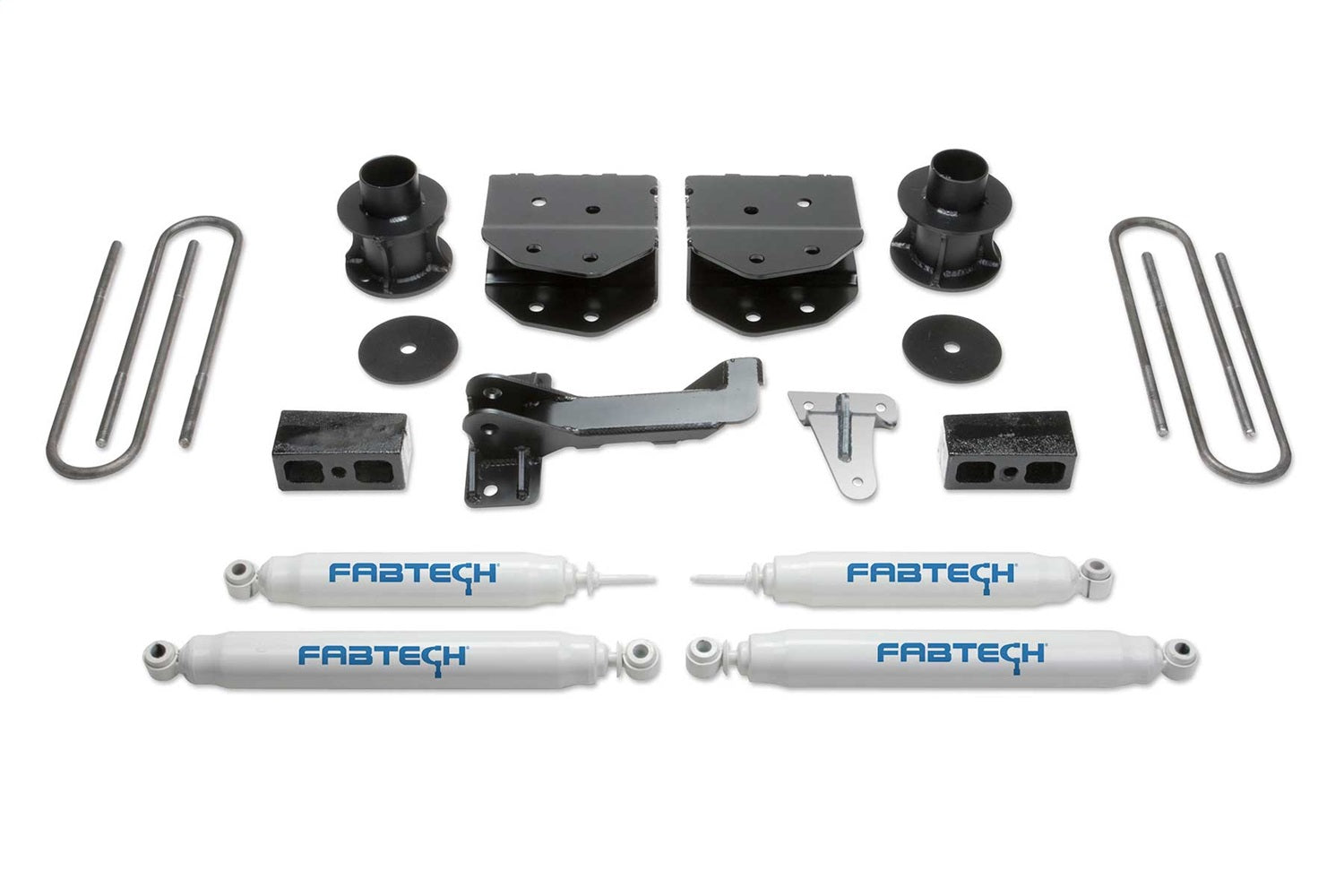

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4 Budget System. The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35 tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

Retains Factory Front Coil Springs For Stock Ride
Drop Brackets For Proper Caster w/Increased Height
Trac Bar Works w/Factory Pitman Arm
Trac Bar Relocated To Center Axle
Includes Driveshaft Carrier Bearing
Ample Clearance For 33 in. Tires

Attributes:

Brand Name: Fabtech
GTIN: 00674866036253
Lift/Drop Height: 4
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

Extended Information:

Country of Origin: US
Emissions : CARB Eligible

Packing Information:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 24.0000 x 24.5200 x 15.5900 inches
Weight: 138.4000 POUNDS

Budget Lift System W/Shock
