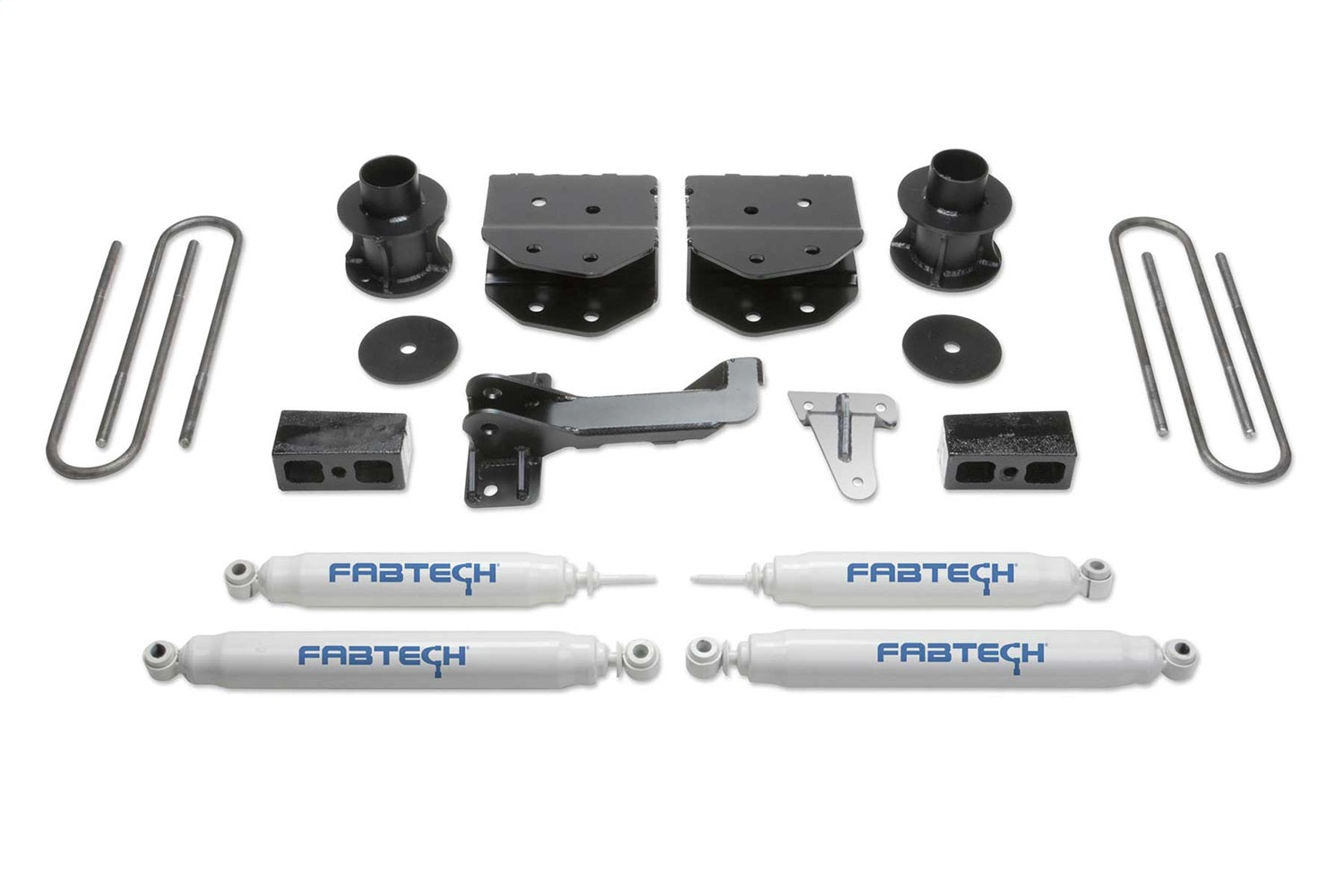

Budget Lift System W/Shock

The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35 tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

• Retains Factory Front Coil Springs For Stock Ride
• Drop Brackets For Proper Caster w/Increased Height
• Trac Bar Works w/Factory Pitman Arm
• Trac Bar Relocated To Center Axle
• Includes Driveshaft Carrier Bearing
• Ample Clearance For 33 in. Tires

Attributes:

• Brand Name: Fabtech
• GTIN: 00674866036352
• Lift/Drop Height: 4
• WARNING CA Proposition 65: Yes
• WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 24.0000 x 24.5200 x 15.5900 inches
• Weight: 133.8000 POUNDS

PDF:
