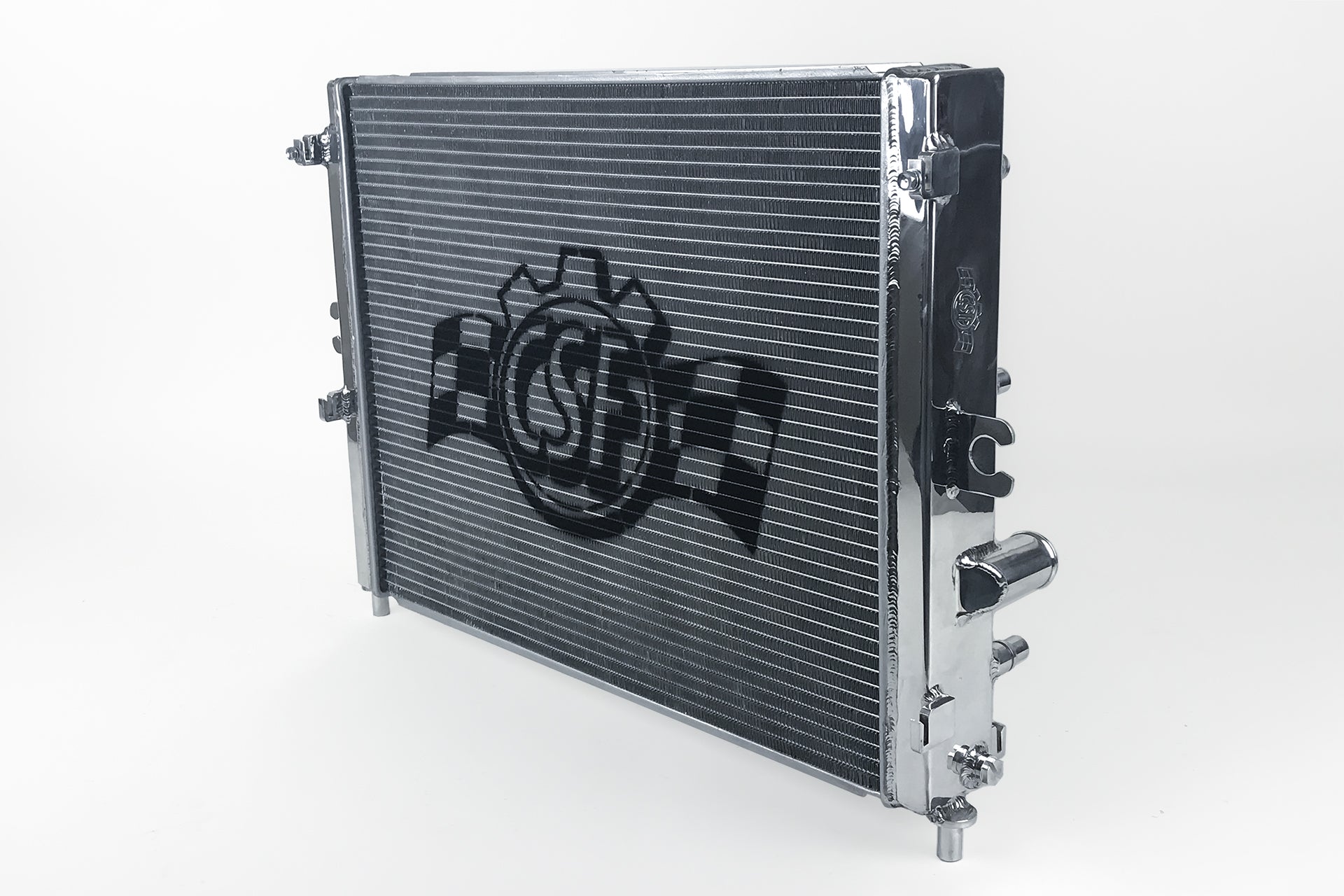

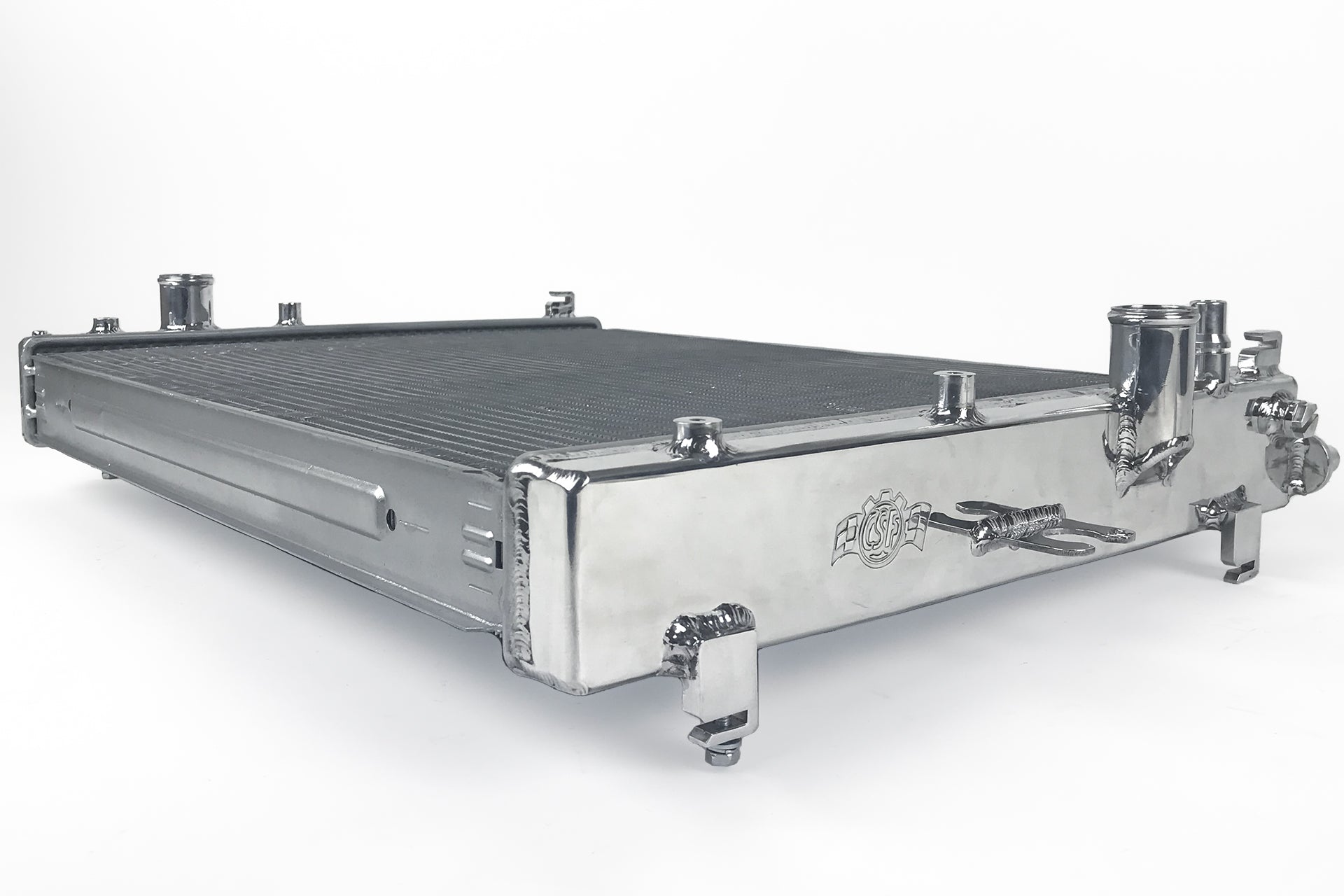

Chevrolet C7 Corvette Stingray / Grand Sport / Z06 All-Aluminum Radiator

The CSF C7 Corvette radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

• Significantly Reduced Engine Temps for Maximum Performance?
• 2 Row, 52mm Core Featuring CSF's Exclusive B-Tube Technology?
• 8mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact?
• Triple-Pass Flow Structure for Lowest Possible Coolant Output Temperatures
• Individually Leak and Pressure Tested?
• CNC Machined Brackets and Fittings for Superb Fit and Durability?
• Integrated All-Aluminum Race-Style Bleeder Screws?
• Smooth Satin Finish
• "Drop-in Fit" for Easy Installation

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353070772
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 21.5 in.
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 2.0625 in.
• Core Width: 15.75 in.
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Satin
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 1.34 in.
• Inlet Location: Top Right
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 1.34 in.
• Outlet Location: Bottom Left
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: Indonesia
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30 x 9 x 22 inches
• Weight: 20 POUNDS
