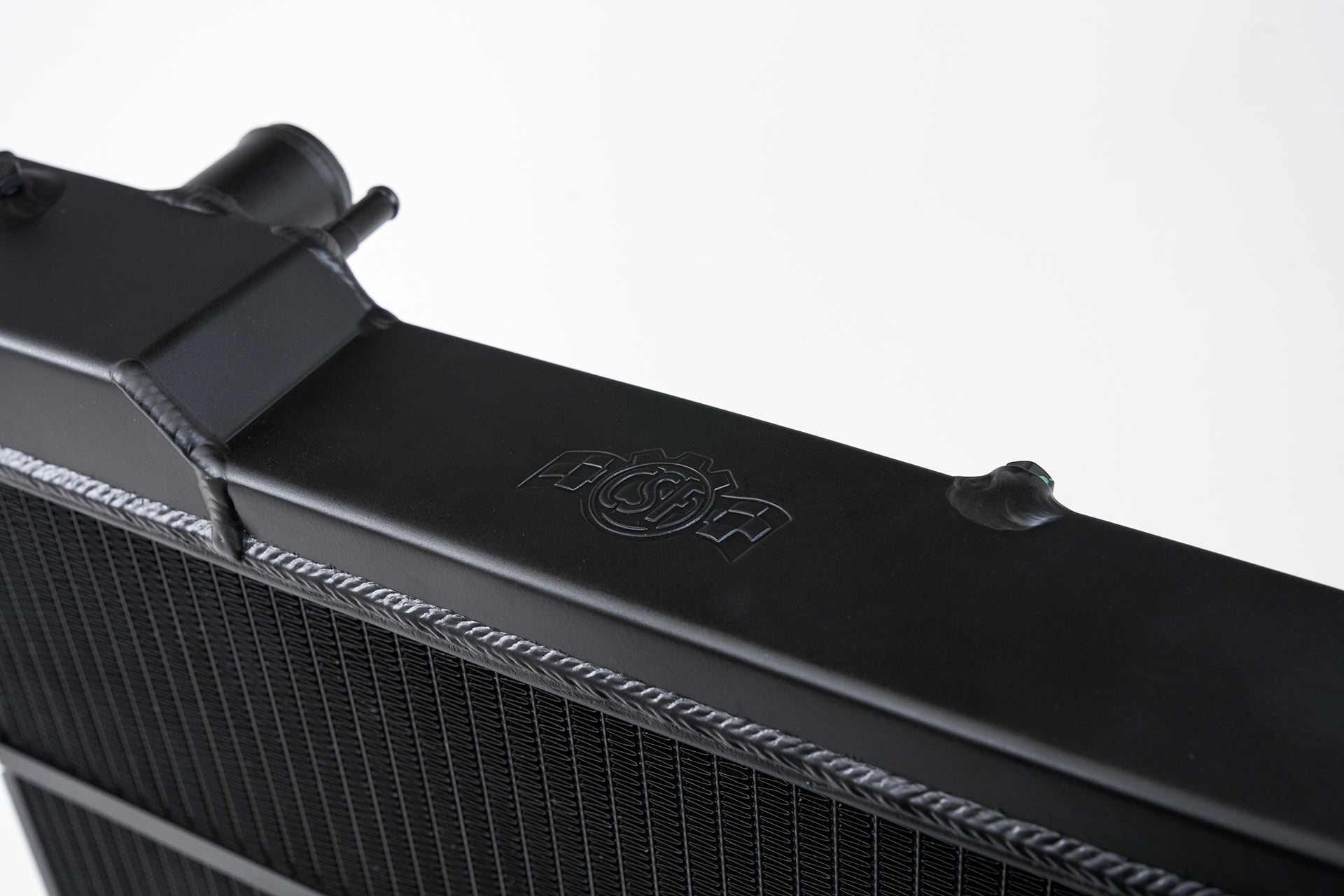

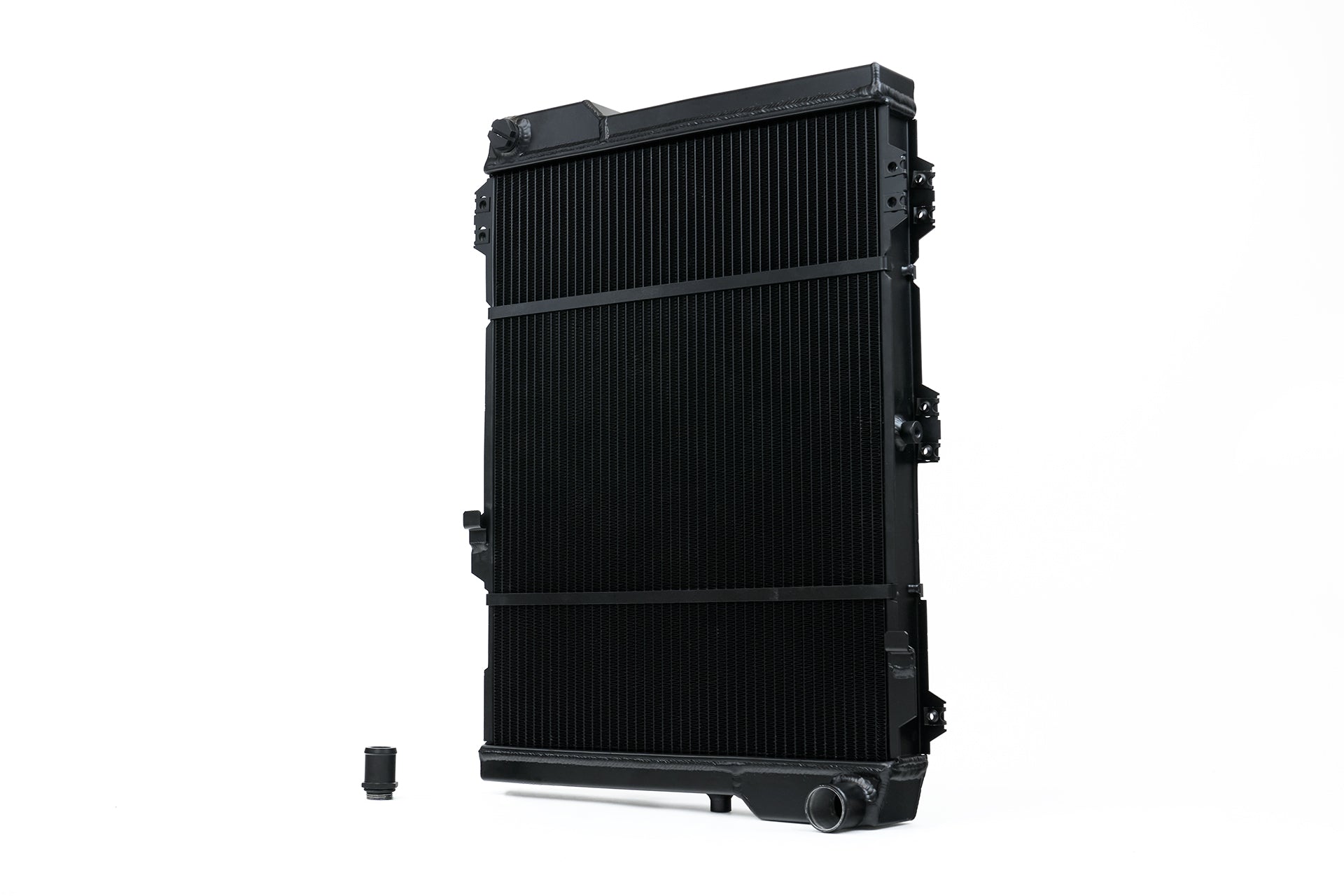

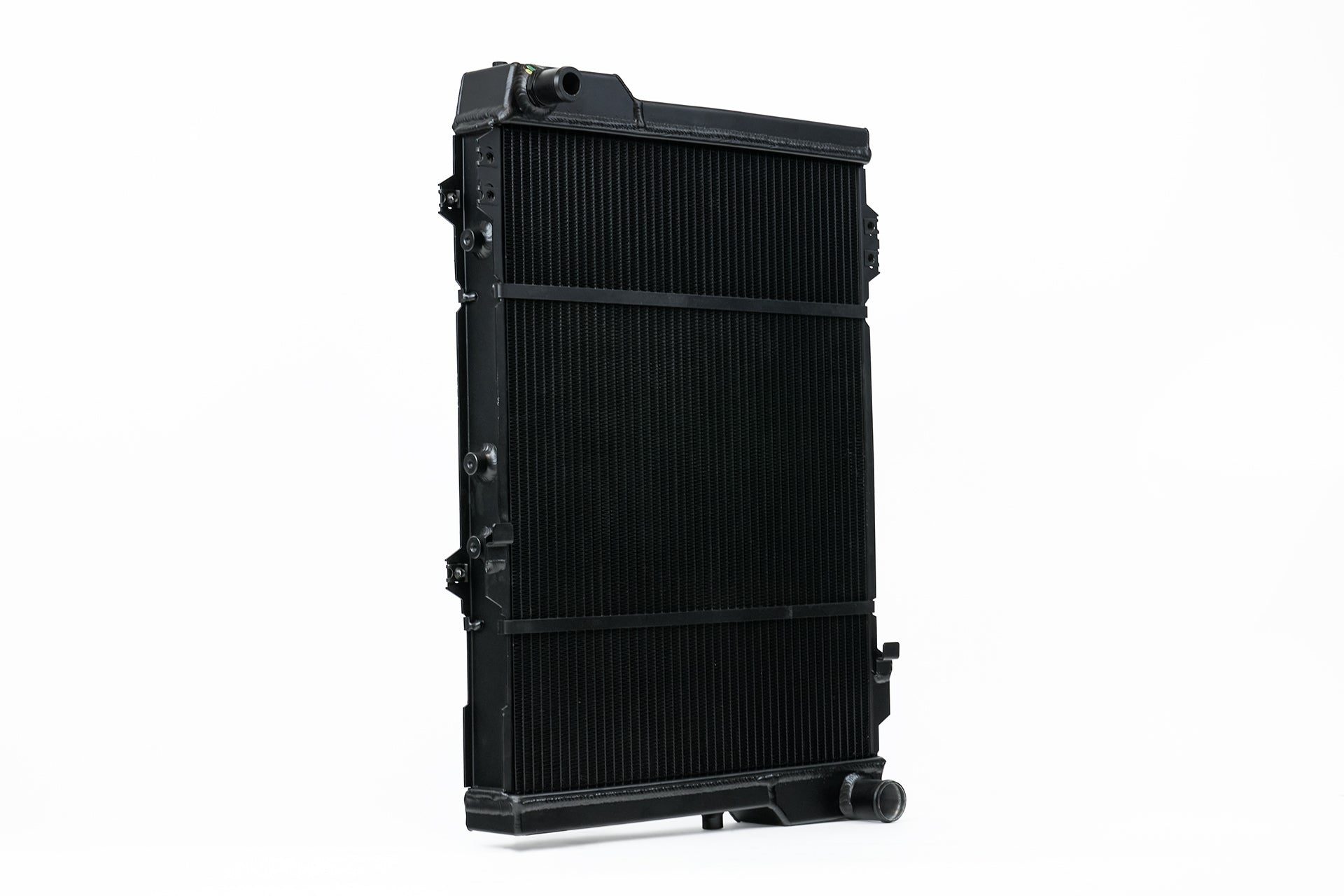

Classic & Small Chassis Audi 5-Cylinder High-Performance All-Aluminum Radiator

The CSF Audi Quattro/B1/B2/B3/B4 radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

• 2-Row, 42mm Ultra-High-Performance Dual Pass Core
• Multiple Fan Shroud Mounting Points for use with all Fans (incl. High Performance RS2 Model)
• Multiple overflow pipe locations on top end tank for different model variations
• Sensor ports are M22x1.5 (if your OEM Sensor is an early model M20x1.5 please be aware you will need an adapter)
• 2-Year Limited Warranty
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Satin Black Finish for OEM+ Look
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• Modular design for use with or without Auxiliary Radiator

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353072080
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 477mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 363.5mm
• Down Flow Or Cross Flow Type: Down Flow
• Finish/Color: Black
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 32mm
• Inlet Location: Top Right
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 32mm
• Outlet Location: Bottom Left
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: Indonesia
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 25 x 18 x 7 inches
• Weight: 13 POUNDS
