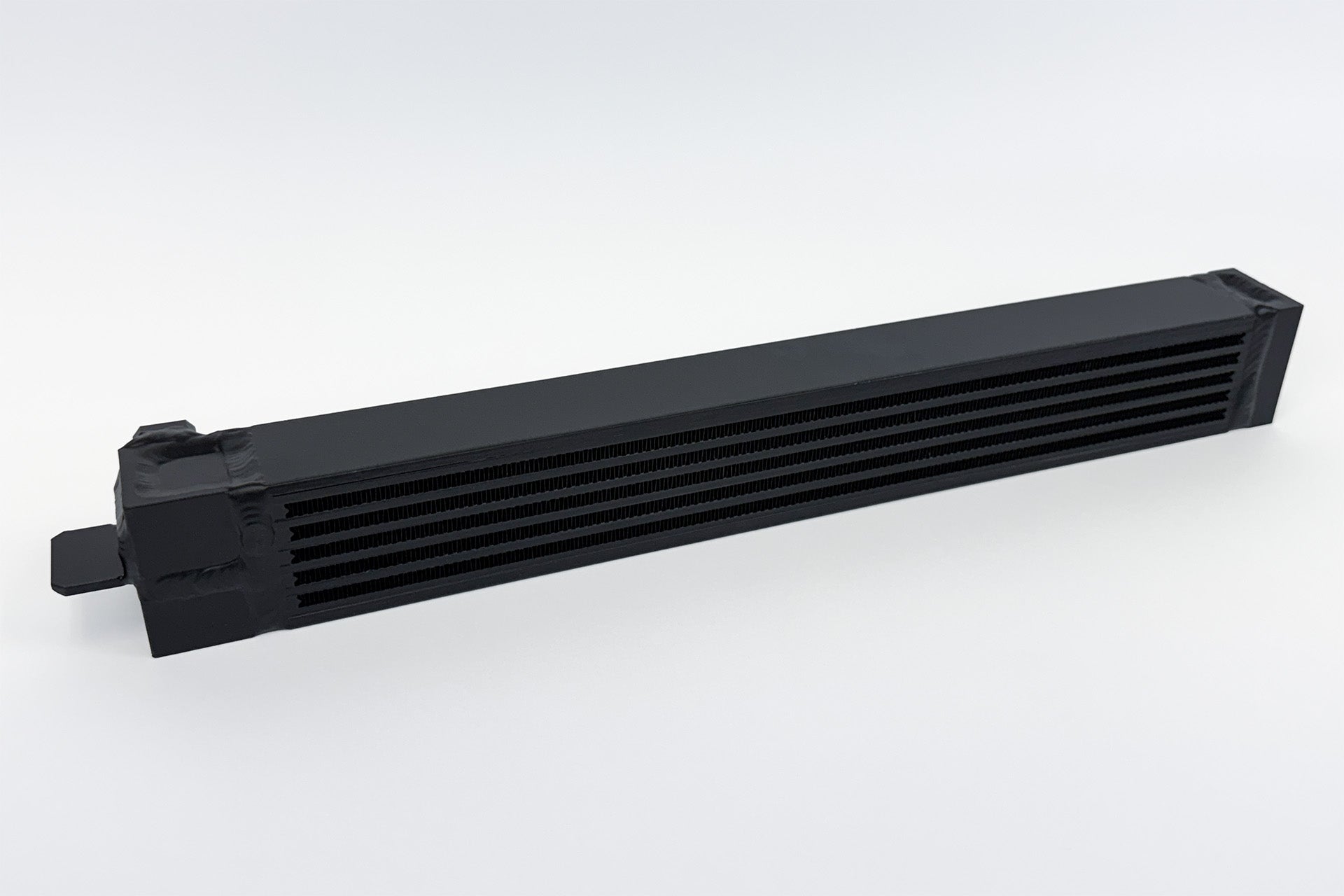

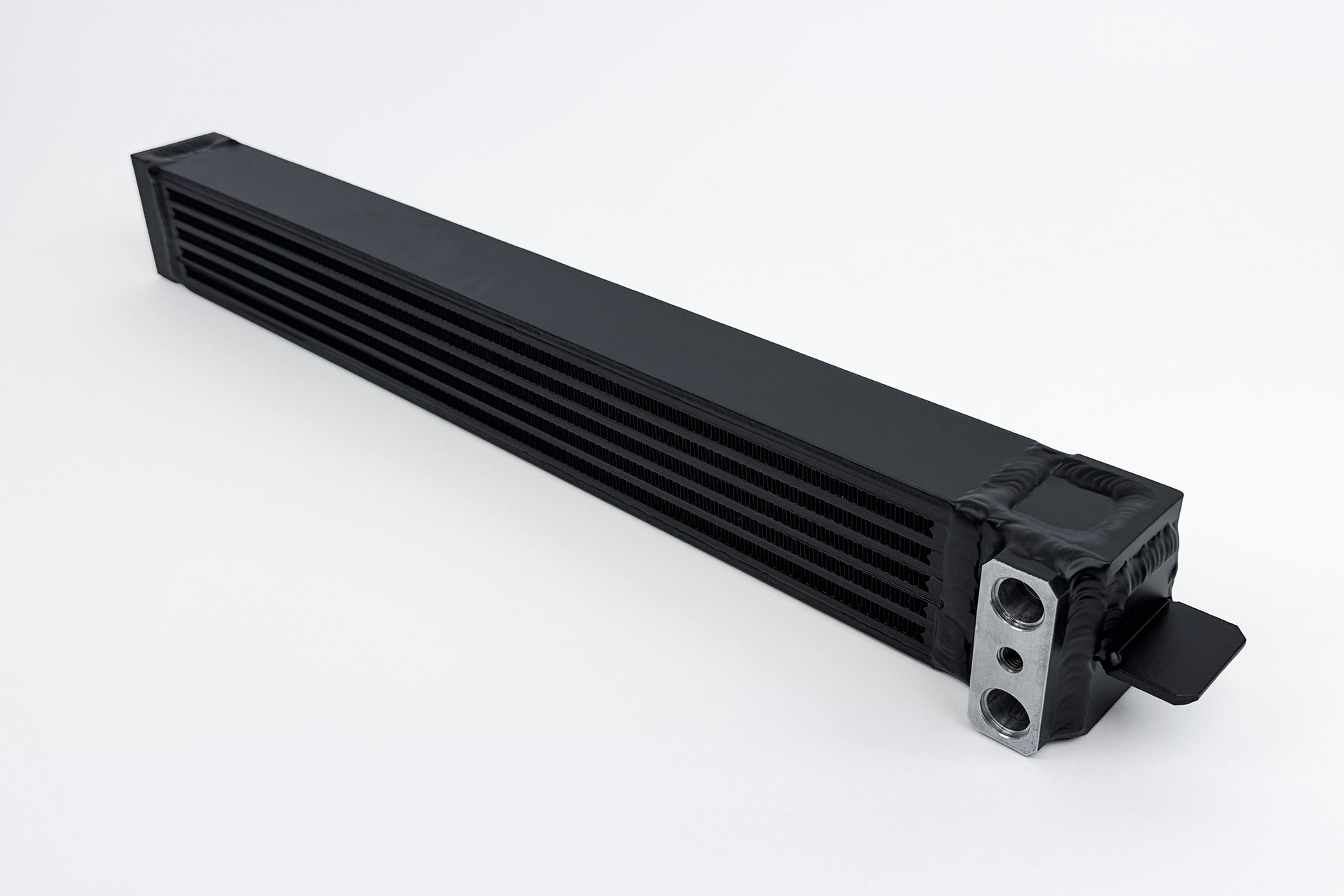

CSF E36 M3/3-Series Euro Spec Oil Cooler

The CSF Oil Cooler was designed to be a 1 to 1 replacement for the OEM unit in terms of fitment. This means it uses the same OE mounting points, hardware, and lines. For a EU E36 M3 or USMD Z3M the oil cooler will be a drop-in fit installation. E36 models that were not equipped with the oil cooler from the factory can use the BimmerWorld Euro Oil Cooler Bracket Kit which can attach to an OEM spec Radiator or the CSF #3054.

• Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
• Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
• 6 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
• Designed to Work with OE & CSF All-Aluminum Radiator (CSF #3054)
• OE Style Black Finish
• Accepts Factory Oil-Line Connections
• Mounts using OE Brackets or BimmerWorld Bracket Kit (#TEN3631201)
• Uses OE E36 Euro Spec Oil Cooler Lines (Pipe) - BMW PN: 17212227235

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353083017
• ADD-ON: 3054
• Cable Included: No
• Color: Black
• Core Charge Applicable: No
• Core Color: Black
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Tube: No
• Core Type: Bar-and-Plate
• Finish: Paint
• Grade Type: Performance
• Inlet Fitting Type: OE Type Connection
• Inlet Gender: Female
• Installation Type: Drop-In Fit Installation
• Mounting Hardware Included: No
• Outlet Fitting Gender: Female
• Outlet Fitting Type: OE Type Connection
• Strap Included: No
• Tube Included: No

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 25 x 6 x 5 inches
• Weight: 6 POUNDS
