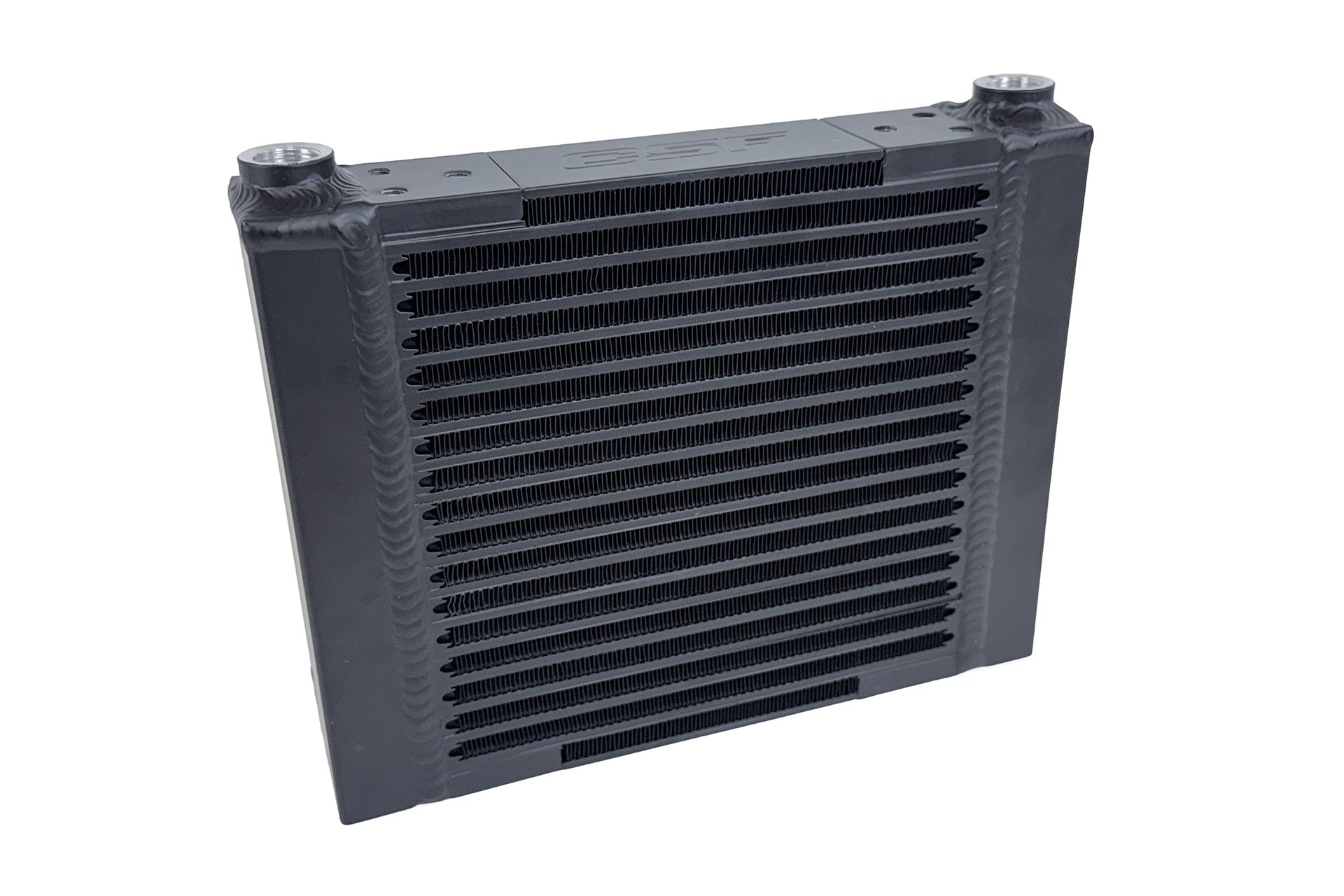

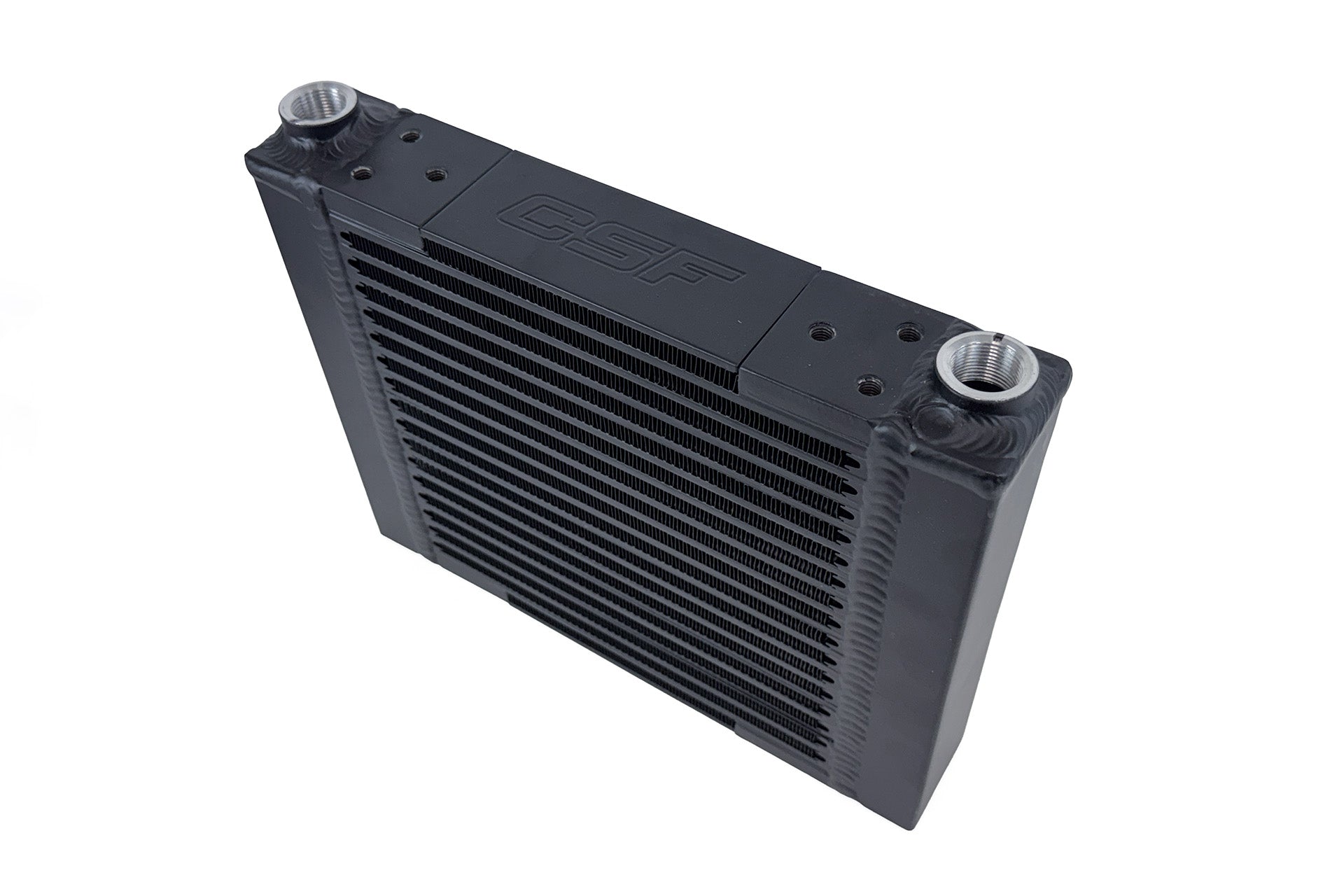

CSF Universal Large Single-Pass Oil Cooler - M22 X 1.5 - 12.0L X 9.33H X 2.16W

CSF oil coolers are much more robust, durable, and can withstand a higher peak burst rate than common brazed plate-type/stacked designs. This allows the cooler to be mounted in areas that might get high debris (front fascia, diff cooler, side vents, etc). When using a conventional oil cooler, the type of mounting locations are often not considered due to the risk of damage. The CSF oil cooler is designed to withstand a tremendous amount of vibration and debris. You can even stand on it!

• Overall Dimensions (including fitting bosses): 12.0" L x 9.85" H x 2.36" W (305mm x 250mm x 60mm)
• 2-Year Limited Warranty
• Core Dimensions: 9.25" L x 9.33" H x 2.16" W (235mm x 237mm x 55mm)

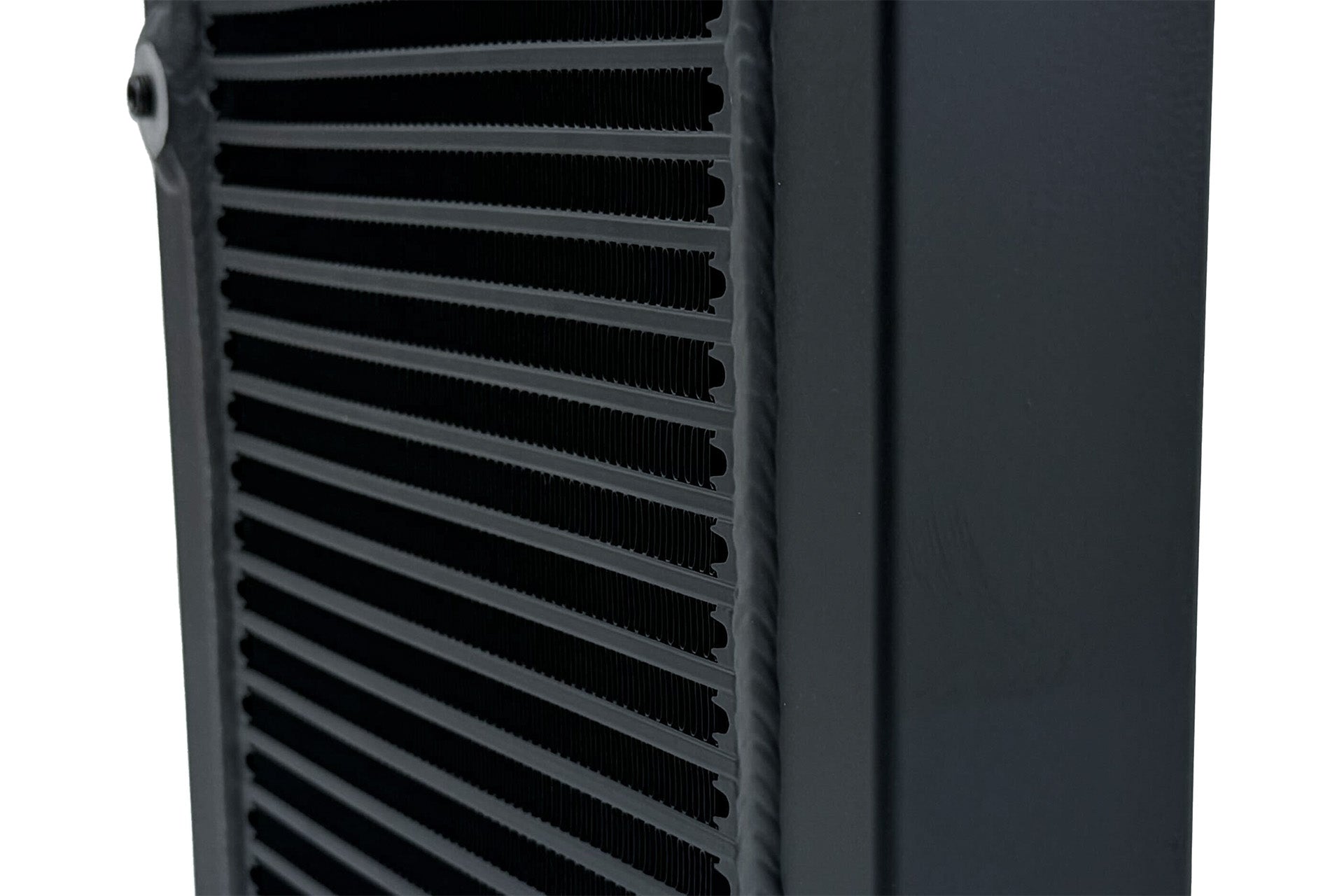

• High Efficiency & Rugged Durability Bar/Plate Design
• "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
• M22 x 1.5 Inlet/Outlet Connections
• Two 1/8 NPT Ports on each tank for bleeding or temperature sensors
• Satin Black Finish for Extreme Protection Against Corrosion and Debris
• Pressure Tested at 120psi
• Fluid Capacity: 1.5L (1.6 qt)

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353083710
• Cable Included: No
• Color: Black
• Core Charge Applicable: No
• Core Color: Black
• Core Height: 237mm
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 55mm
• Core Tube: No
• Core Type: Bar-and-Plate
• Core Width: 235mm
• Finish: Powder Coat
• Fluid Capacity: 1500cc
• Grade Type: Performance
• Inlet Fitting Type: M22 x 1.50 female threaded
• Inlet Gender: Female
• Installation Type: Universal Cooling Product
• Mounting Hardware Included: No
• Outlet Fitting Gender: Female
• Outlet Fitting Type: M22 x 1.50 female threaded
• Strap Included: No
• Tube Included: No

Extended Information:

• Country of Origin: China
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15 x 5 x 14 inches
• Weight: 10 POUNDS
