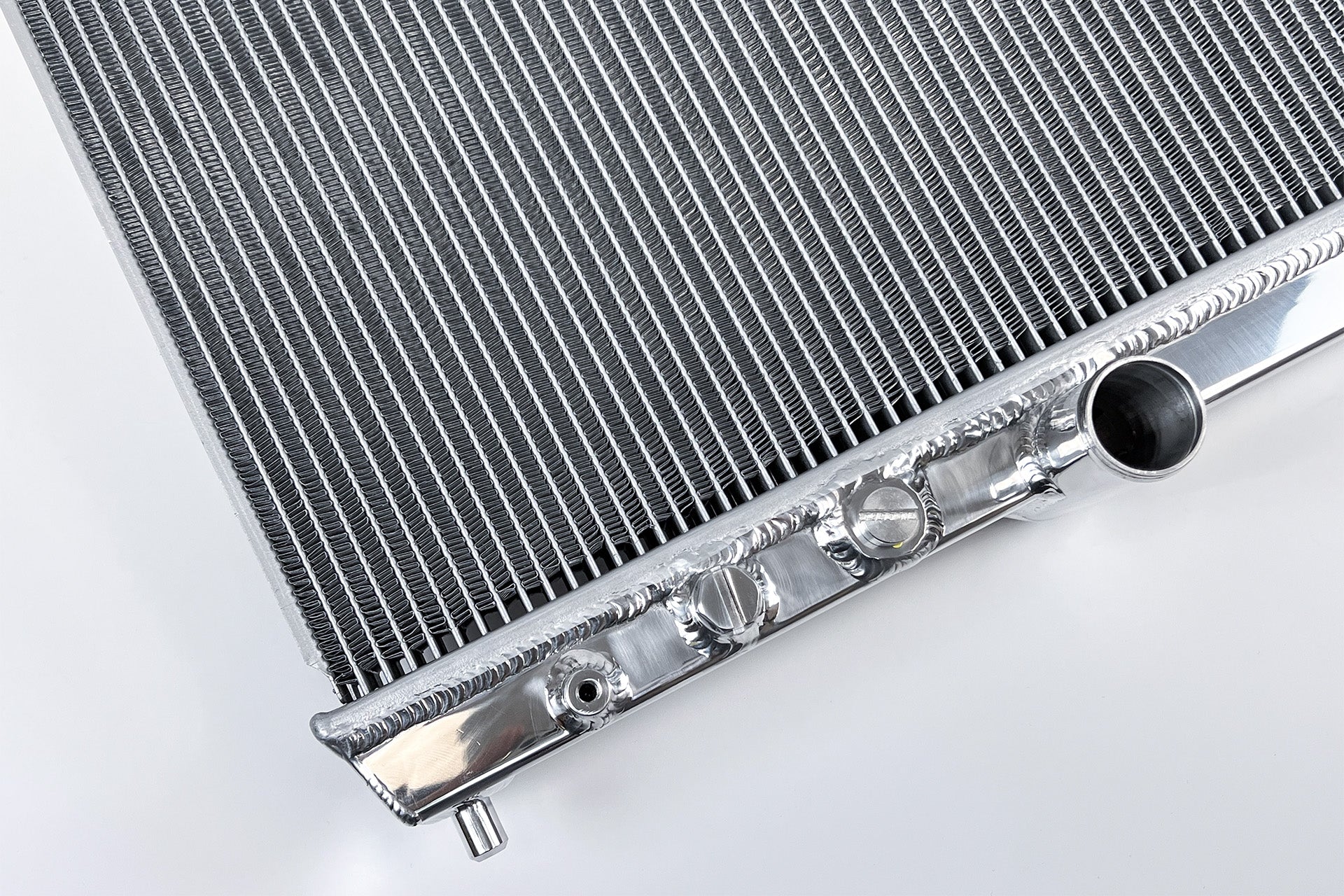

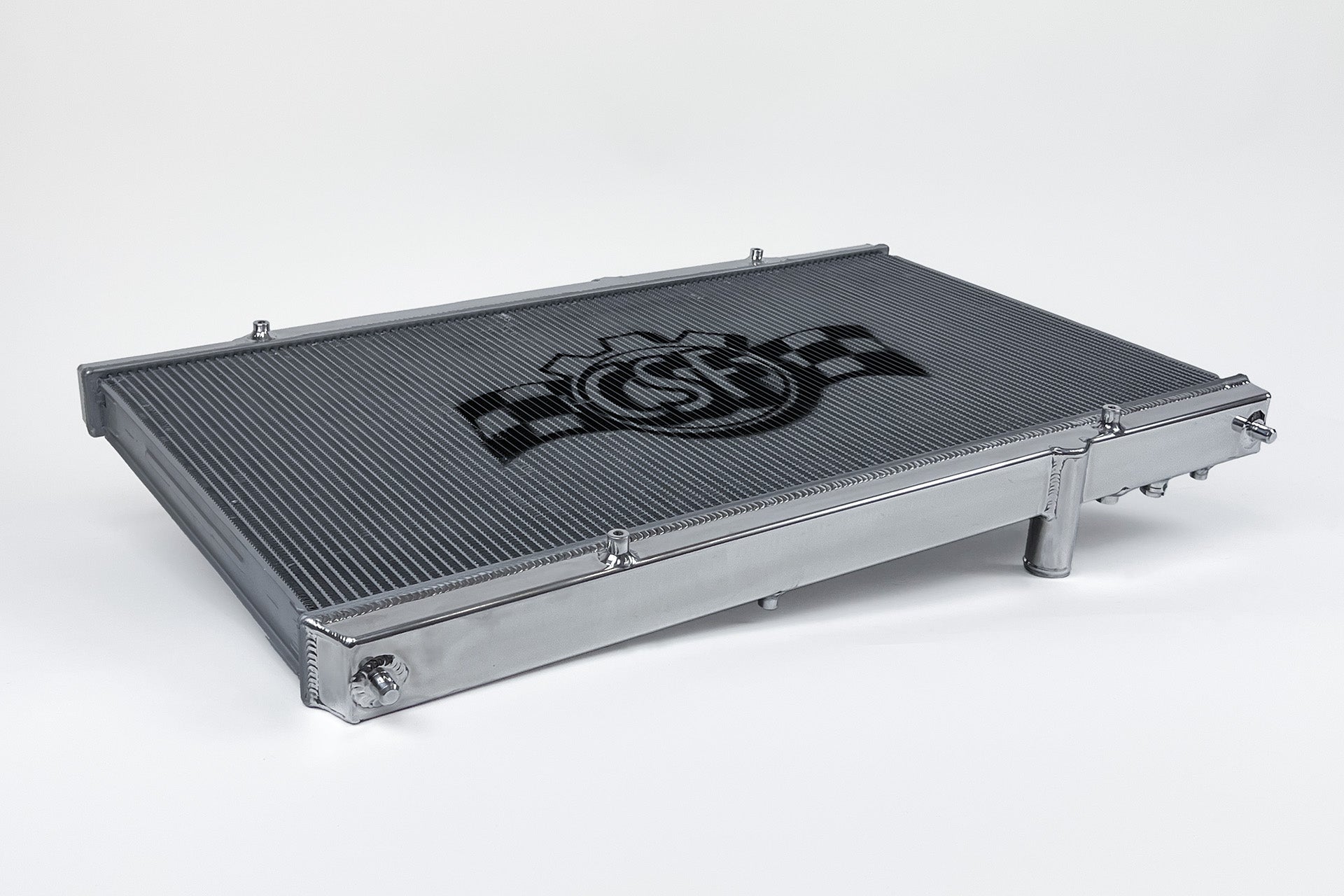

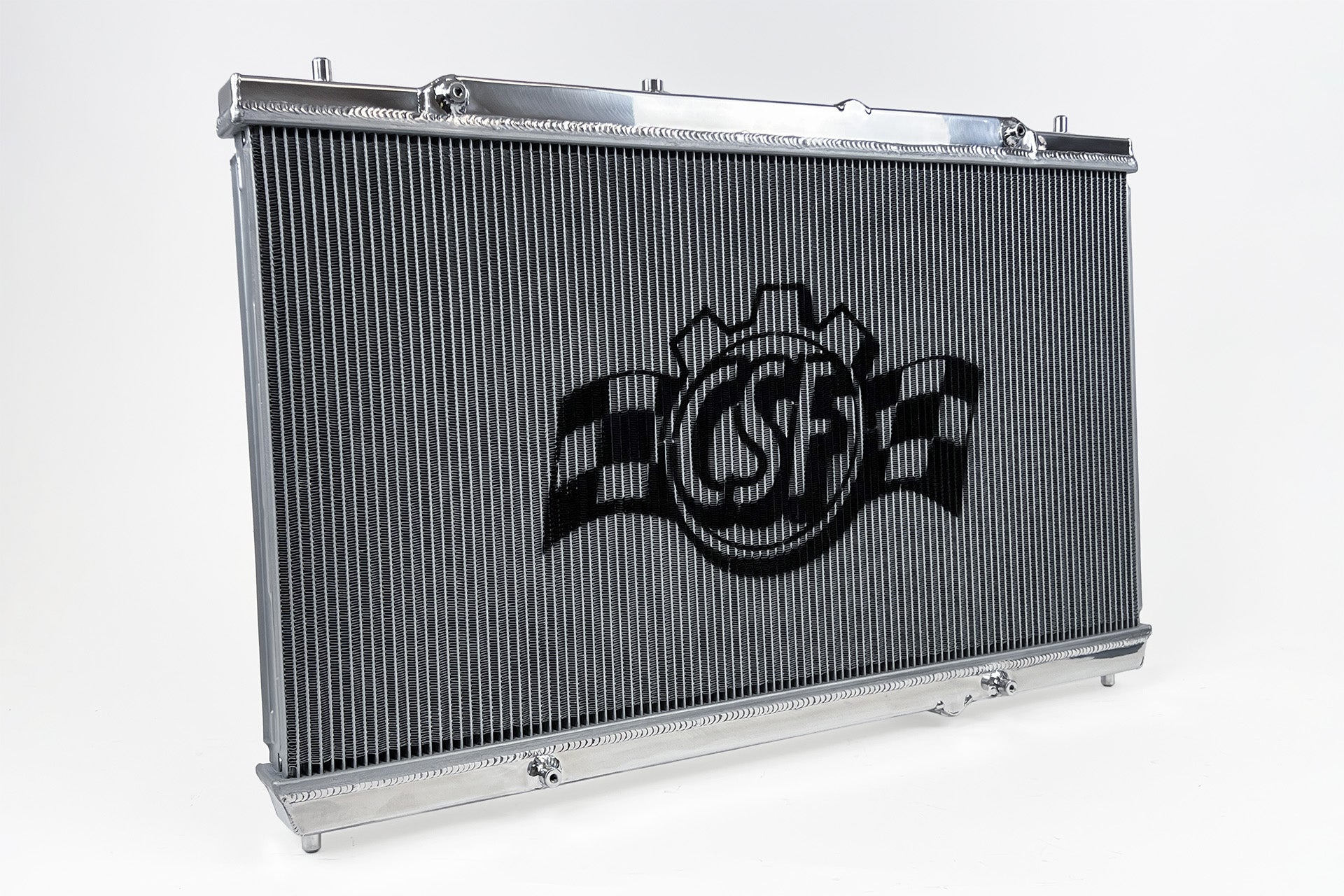

FL5 Civic Type R / DE5 Integra Type S High-Performance All-Aluminum Radiator

Testing was performed on a FL5 Civic Type R tuned to 294 whp and equipped with an upgraded/larger Front Mount Intercooler. The larger front mount intercooler has been shown to raise engine coolant temperatures by 7%. This is due to the airflow restriction over the radiator. Test results show a decrease of of 8 deg C engine coolant temperature with the CSF Radiator vs OEM. As you can see, a radiator upgrade will be very important to anyone running a larger intercooler. The upgraded radiator will also be beneficial to anyone tracking their car.

• 2-Row, 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• 1-Hour "Mirror Finish" Hand Polish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353072219
• ADD-ON: 8343
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 15.75 in.
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 29.6875 in.
• Down Flow Or Cross Flow Type: Down Flow
• Finish/Color: Polished
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 1.625 in.
• Inlet Location: Top Left
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 1.625 in.
• Outlet Location: Bottom Left
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: Indonesia
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 34 x 23 x 7 inches
• Weight: 19 POUNDS
