FL5 Honda Civic Type R Dual Engine Oil Cooler Kit

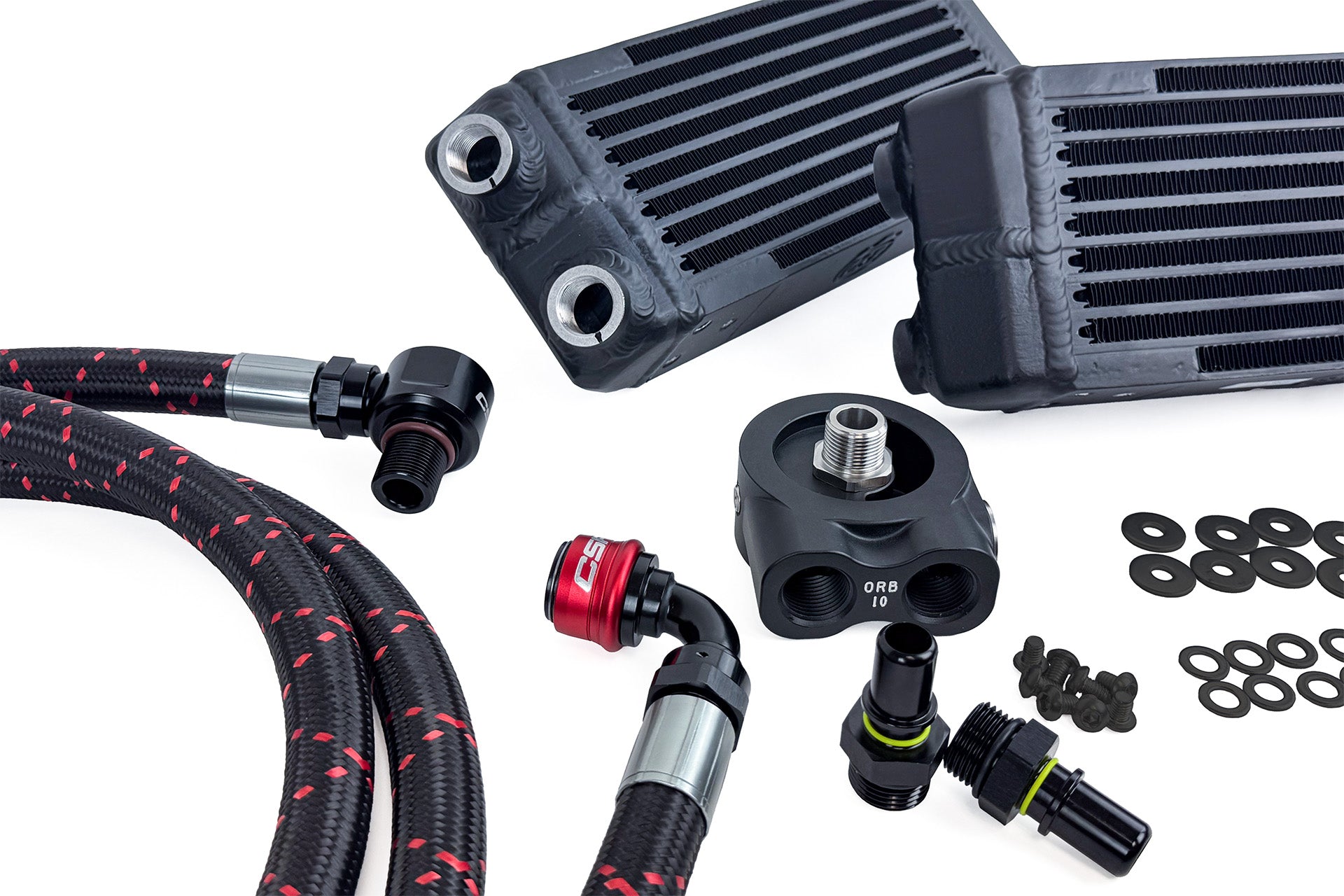

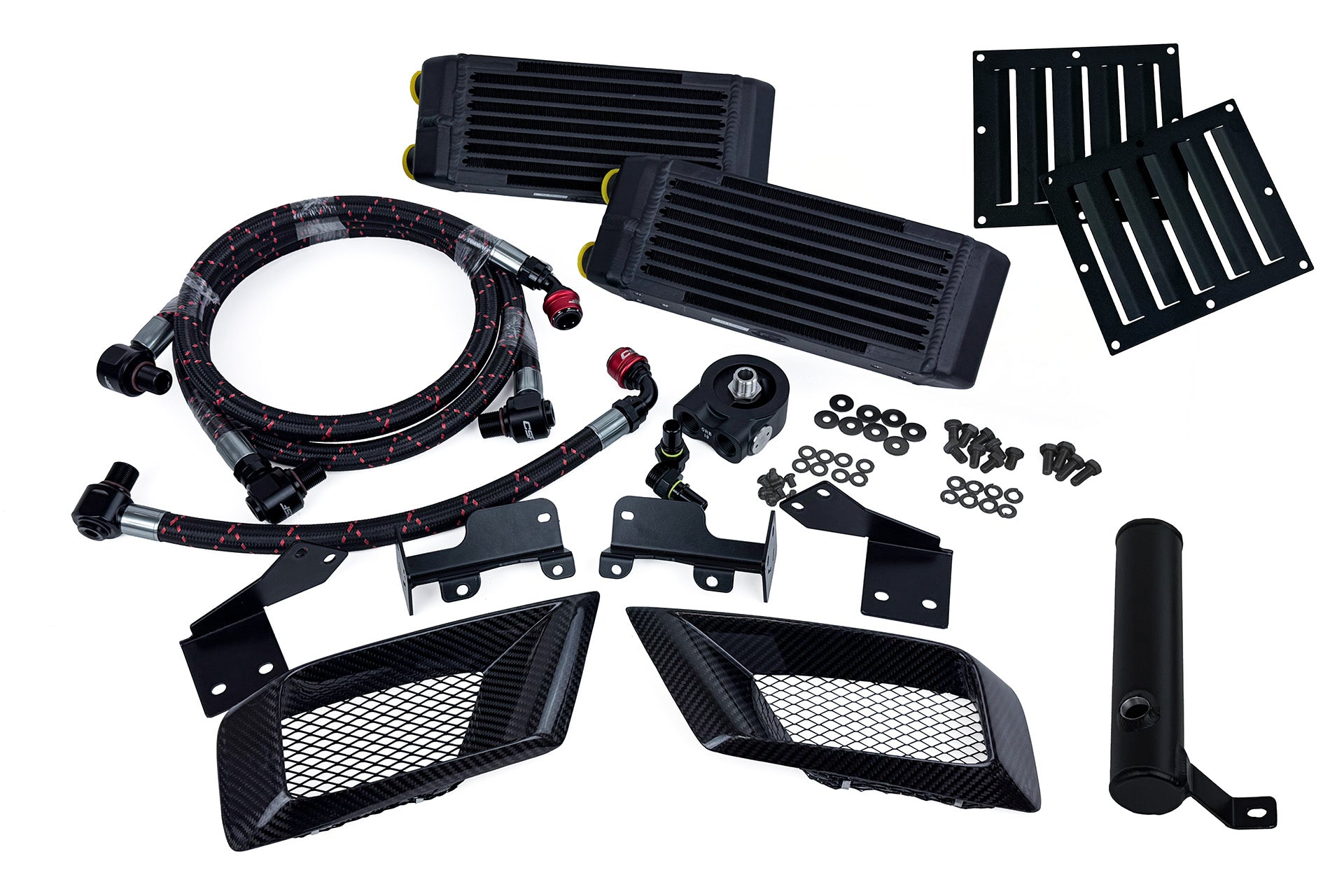

Featuring: Two Dual Pass High-Performance Oil Coolers, CPE lined stainless steel braided lines, Motorsport Grade Carbon Fiber Bumper Vents, Laser cut mounting brackets, and DYME Pro/Spec Quick Release Fittings with Billet Sandwich Plate with 175-195 deg F (80-90 deg C) Thermostat. This kit offers an average Oil Temperature reduction of approximately 15 deg F (8 deg C) and increases oil capacity to approximately 7 Quarts (6.6L). CSF recommends pairing the Oil Cooler Kit with the CSF #7221 FL5 Performance Radiator for maximum cooling performance.

• Two CSF #8119 High-Performance Dual Pass Oil Coolers

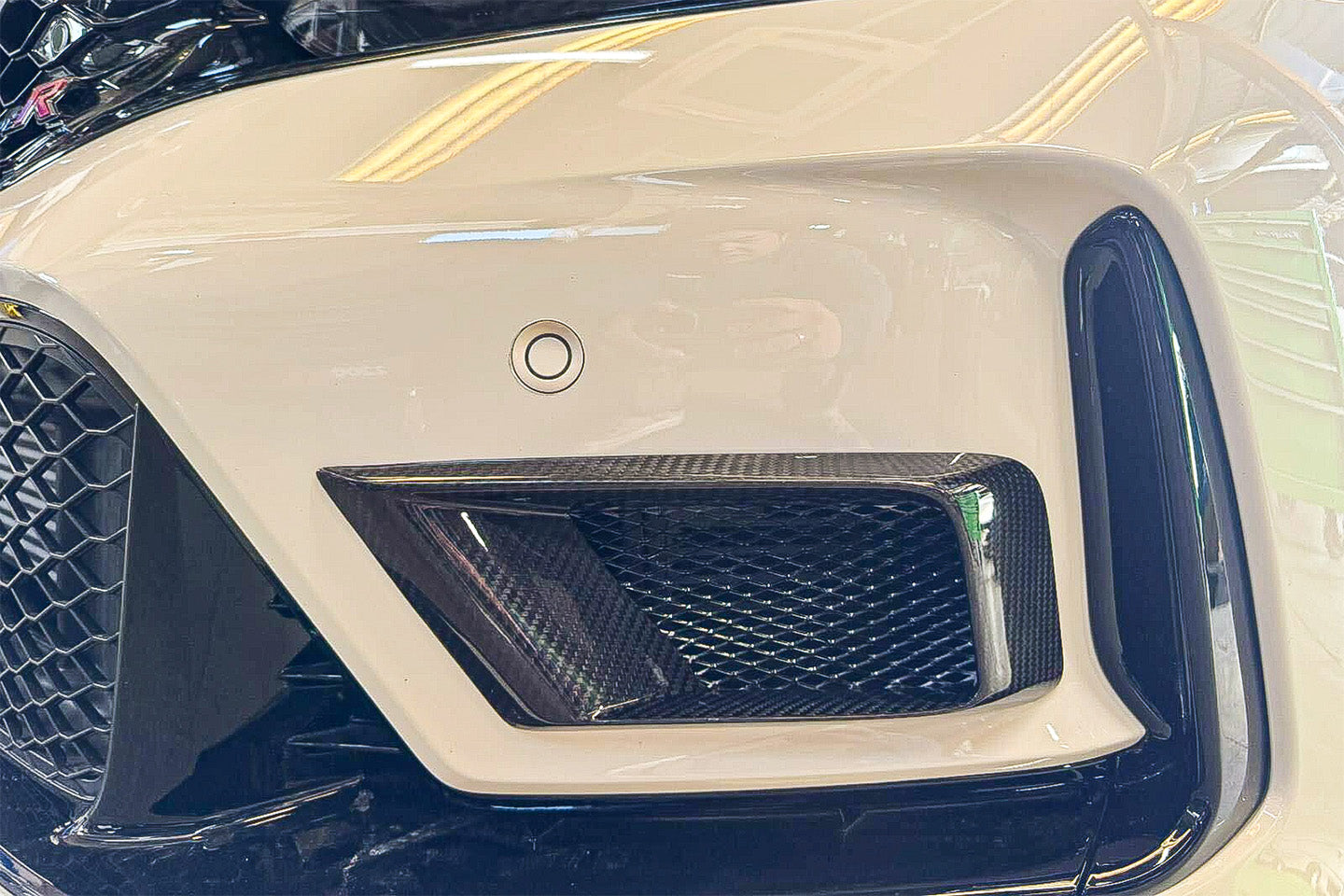

• Pre-Preg Carbon Fiber Bumper Vents for maximum airflow and cooling effect
• Laser Cut Louvered fender liner vents to improve the air flow path and promote heat extraction
• Replacement Washer Fluid Bottle compatible with factory washer motor
• Includes all Brackets and Hardware
• Includes installation instructions and templates
• 2-Year Limited Warranty
• Bar/Plate Core offers strength and durability
• 100% TIG Welded Construction tested to 120 PSI
• Smooth 40-degree feed/return fitting design
• Dual Pass flow for additional cooling
• Oil Capacity increased by over 2 Quarts (2 Liters)
• Motorsports grade AN lines with patented quick release fittings by DYME PSI
• 304 Stainless Steel reinforcing braid and Polyethylene top braid
• CNC Billet Machined Sandwich Plate with 175-195°F (80-90°C) Thermostat and 1/8 NPT port aftermarket oil temp sensor

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353083437
• ADD-ON: 7221
• Cable Included: No
• Color: Black
• Core Charge Applicable: No
• Core Color: Black
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 55mm
• Core Tube: No
• Core Type: Bar-and-Plate
• Finish: Powder Coat
• Grade Type: Performance
• Inlet Fitting Type: M22 x 1.50 female threaded
• Inlet Gender: Female
• Installation Type: External Oil Cooler Kit
• Mounting Hardware Included: Yes
• Outlet Fitting Gender: Female
• Outlet Fitting Type: M22 x 1.50 female threaded
• Strap Included: No
• Tube Included: No

Extended Information:

• Country of Origin: China
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 28 x 12 x 12 inches
• Weight: 24 POUNDS
