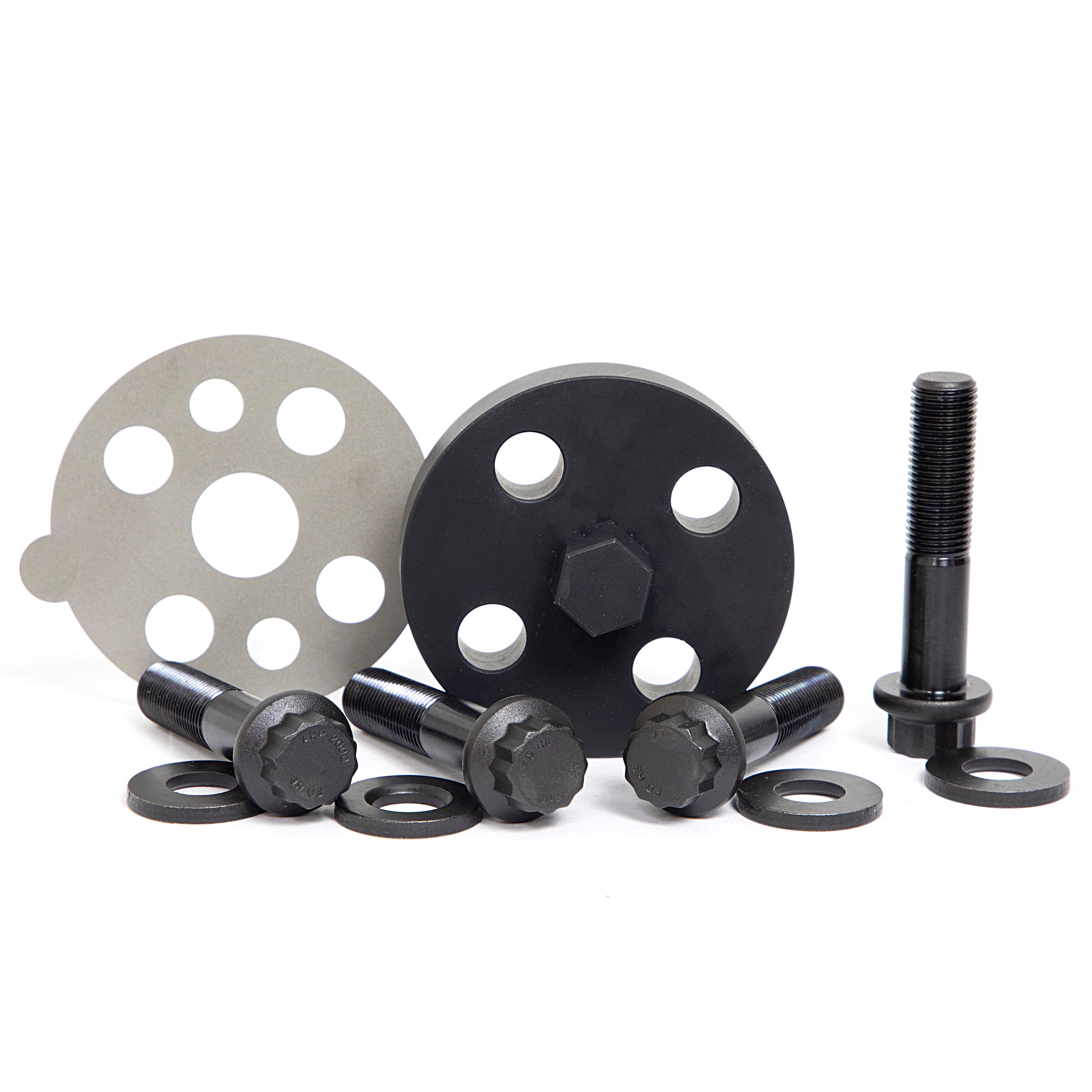

For 1989-2018 5.9L and 6.7L Cummins performance engine builds above 700hp / 1,250 ft-lbs torque Fluidampr recommends damper installation with the Full Power Kit for secure mounting. Kit features textured finished torque plate with 5/8? hex head for barring engine, diamond impregnated friction washer, and heat treated high strength bolts from ARP?. Use in conjunction with Fluidampr Cummins Drill Pin Kit (p/n 300002) for applications above 3,500rpm.
- Secure mounting.
- High quality hardware.
Vehicle Specific
- 1989-2018 Dodge / Ram 5.9L and 6.7L Cummins. Above 700hp / 1250ft-lbs torque.
Attributes:
-
Brand Name: Fluidampr
-
GTIN: 00815293003351
-
Color: Black
-
Friction Washer Coating: Diamondize
-
Friction Washer Depth: .0080
-
Friction Washer Material: Spring steel
-
Grade Type: Performance
-
Seat Type: Flat
-
Socket Size: 14mm 12pt
-
Thread Length: 2.225
-
Thread Size: M12 - 1.25
-
Thread Type: Fine
-
Torque Plate Depth: .50
-
Torque Plate Diameter: 2.75
-
Universal Or Specific Fit: Specific
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Announced
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 9 x 7 x 3 inches
-
Weight: 2 POUNDS
