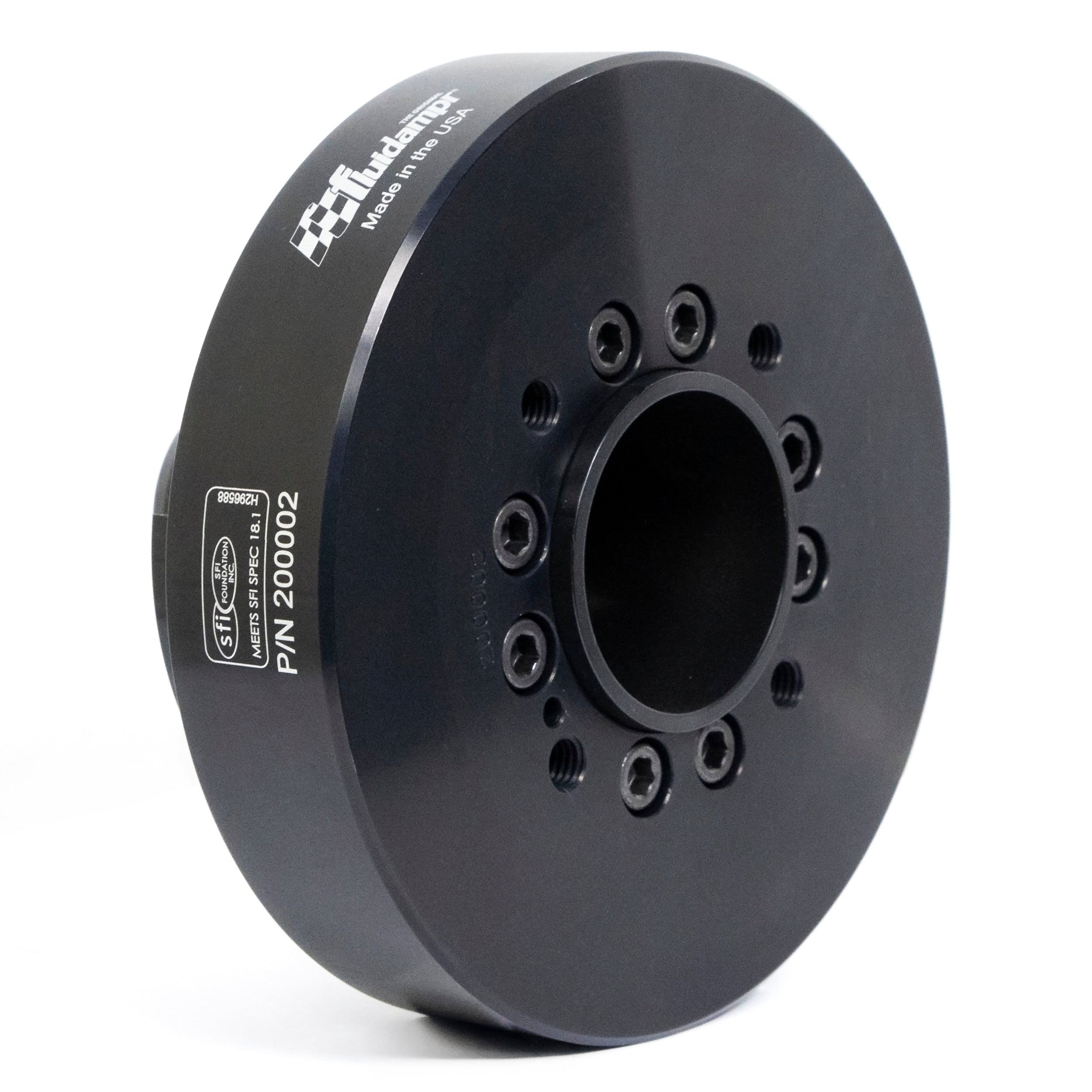

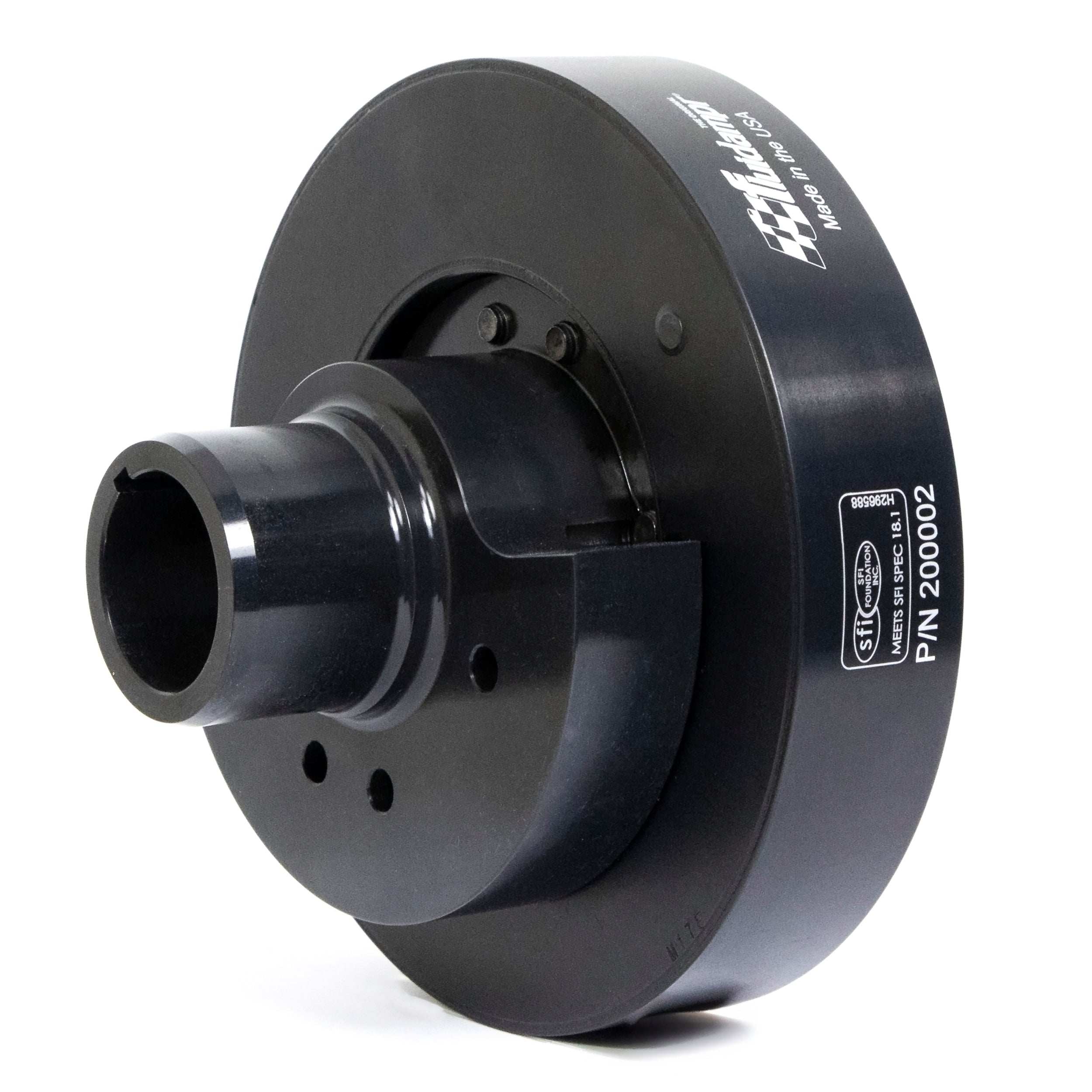

Fluidampr - 650221 - Harmonic Balancer - Fluidampr - SBF - 5.0L - Ext Balance 50oz - Each

Protect your engine. Modifications can compromise your stock harmonic balancer. Install a Fluidampr performance damper early for best durability. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with engraved timing marks. No maintenance required. Trusted by leading engine builders worldwide. SFI 18.1 certified. Made in USA.

• Broad RPM range protection.
• Reduce risk of crankshaft failure.
• Reduce wear on critical engine parts.
• Unleash lost torque & horsepower.
• No maintenance required.
• Superior durability.
• SFI 18.1 spec. Race proven for over 35 years.
• Made in USA.

Vehicle Specific

• 1982-1992 Ford. 302 (5.0L) engine. External balance, 50oz. 34oz counterweight on harmonic balancer, 16oz on flywheel. 4 bolt standard Ford pulley pattern.

Attributes:

• Brand Name: Fluidampr
• GTIN: 00815293001203
• Bolt And Washer Included: No
• Degree Marking Range: 2 degree increments, 50 BTDC to 10 ATDC
• Degree Markings: Engraved
• Depth: 4.12
• Engine Balance: External (50 oz). 34 oz on damper and 16 oz on flywheel.
• Finish: Black Zinc
• Grade Type: Performance
• Inside Diameter: 1.3475
• Keyway Spec: Single; (3/16")
• Keyway Type: Yes
• Material: Steel
• Mounting Hole Diameter: 1.3475
• Mounting Hole Quantity: 1
• Outside Diameter: 6.563
• Pulley Bolt Pattern: 4 bolt standard Ford pulley pattern. 93-95 stock pulleys will not fit Fluidampr
• Safety Rating: SFI 18.1
• Weight / Rotating Weight: 13.6 lbs / 9.1 lbs

Extended Information:

• Country of Origin: US
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 10.5 x 10.5 x 4.5 inches
• Weight: 13.6 POUNDS
