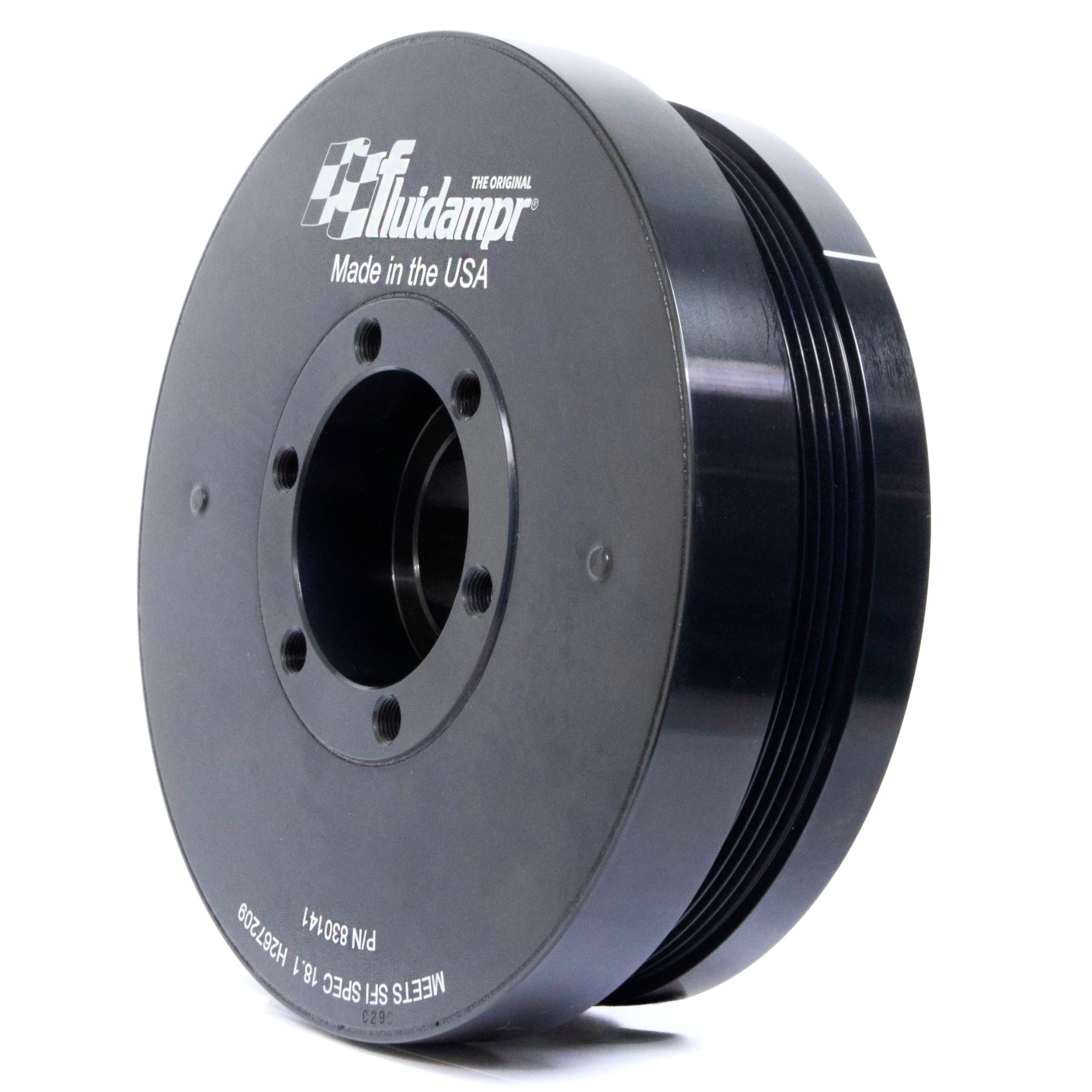

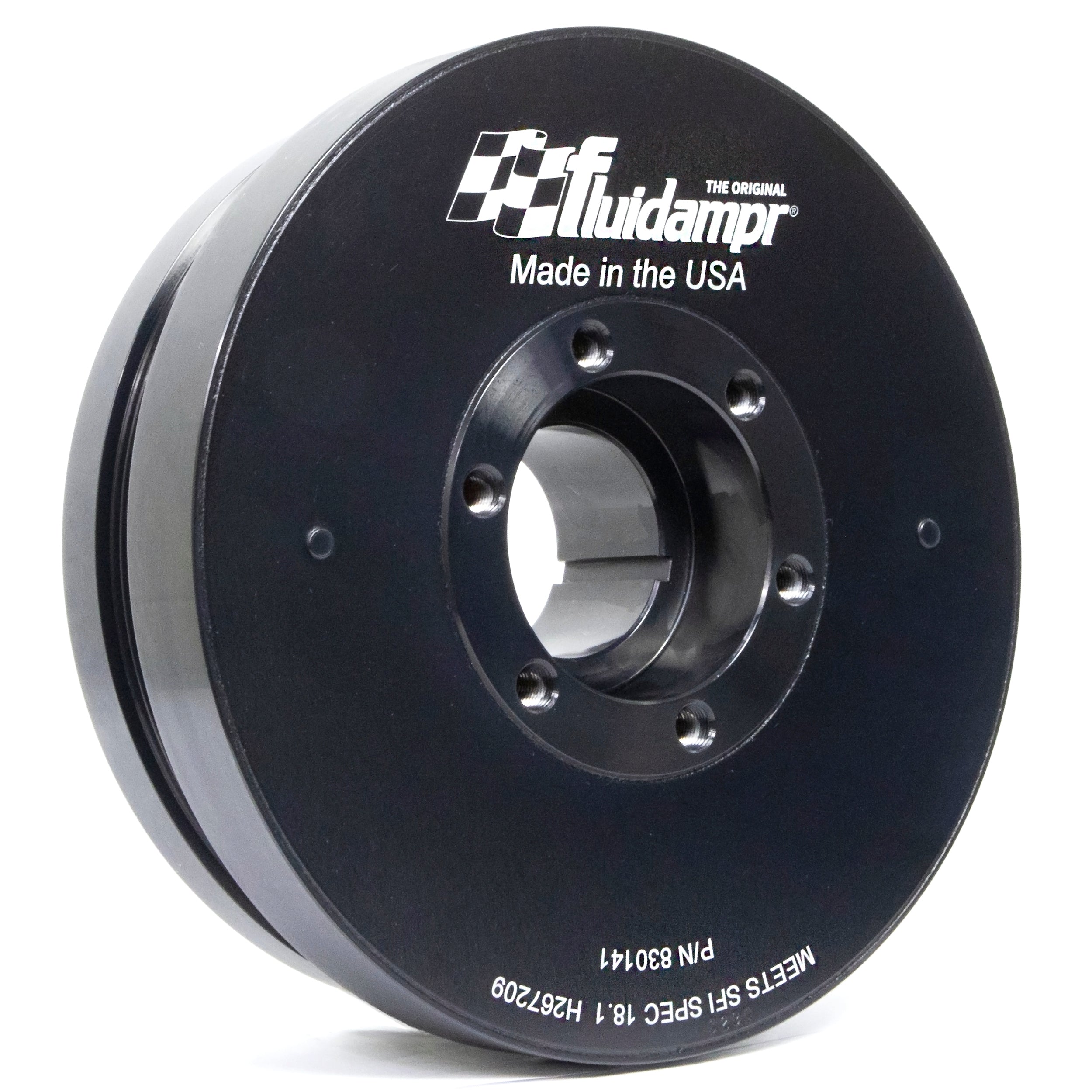

Fluidampr - 830141 - Harmonic Balancer - Fluidampr - GM-Chevy - 2017-2019 - 6.6L Duramax L5P - Each

Serious power requires a serious damper. Protect your truck engine with the technology preferred by heavy duty diesel OEMs. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Competition built precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with engraved timing mark. No maintenance required. Trusted by leading performance diesel engine builders worldwide. SFI 18.1 certified. Made in USA.

• Broad RPM range protection.
• Reduce risk of crankshaft failure.
• Reduce wear on critical engine parts.
• Unleash lost torque & horsepower.
• Pre-drilled 3/8-24 holes on 3.2" bolt circle for custom drive mandrels.
• SFI 18.1 spec. Race proven for over 35 years.
• Made in USA.

Vehicle Specific

• 2017-2019 GM/Chevy 6.6L Duramax L5P

Attributes:

• Brand Name: Fluidampr
• GTIN: 00815293003597
• Bolt and Washer Included: Yes, washer. Recommend Fluidampr High Strength Bolt Kit p/n 300010.
• Degree Marking Range: TDC
• Degree Markings: Engraved
• Depth: 2.66
• Drive Belt Type: Serpentine
• Engine Balance: External
• Finish: Black ZInc
• Inside Diameter: 1.93
• Keyway Type: Yes, 5mm. Recommend Duramax Drill Pin Kit #300019 for performance applications.
• Material: Steel
• Mounting Hole Quantity: 1
• Outside Diameter: 8.375
• Pulley Groove Quantity: 6
• Safety Rating: SFI 18.1
• Weight / Rotating Weight: 27.6 / 18.2

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Announced

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11.5 x 11.5 x 6.5 inches
• Weight: 27.6 POUNDS
