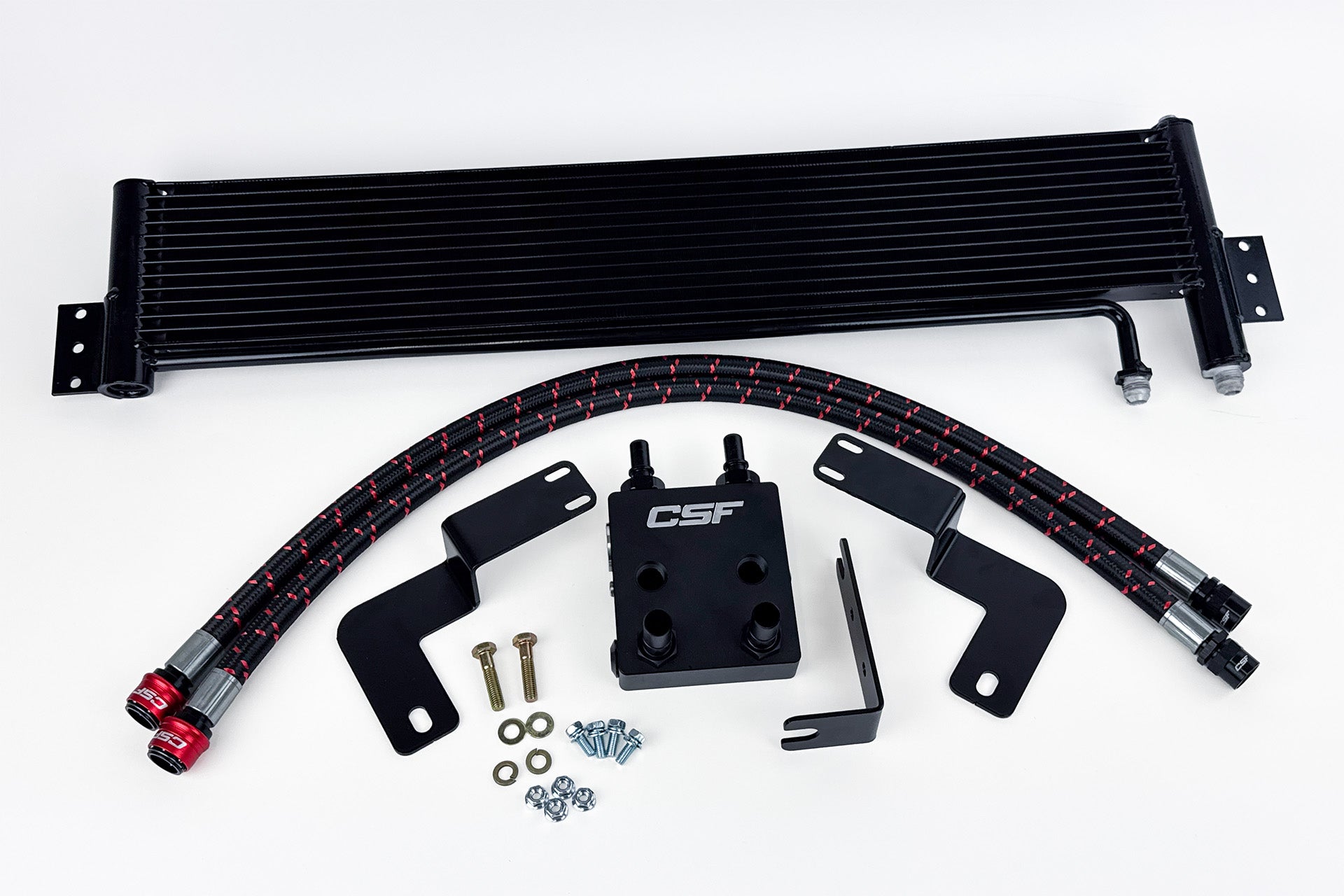

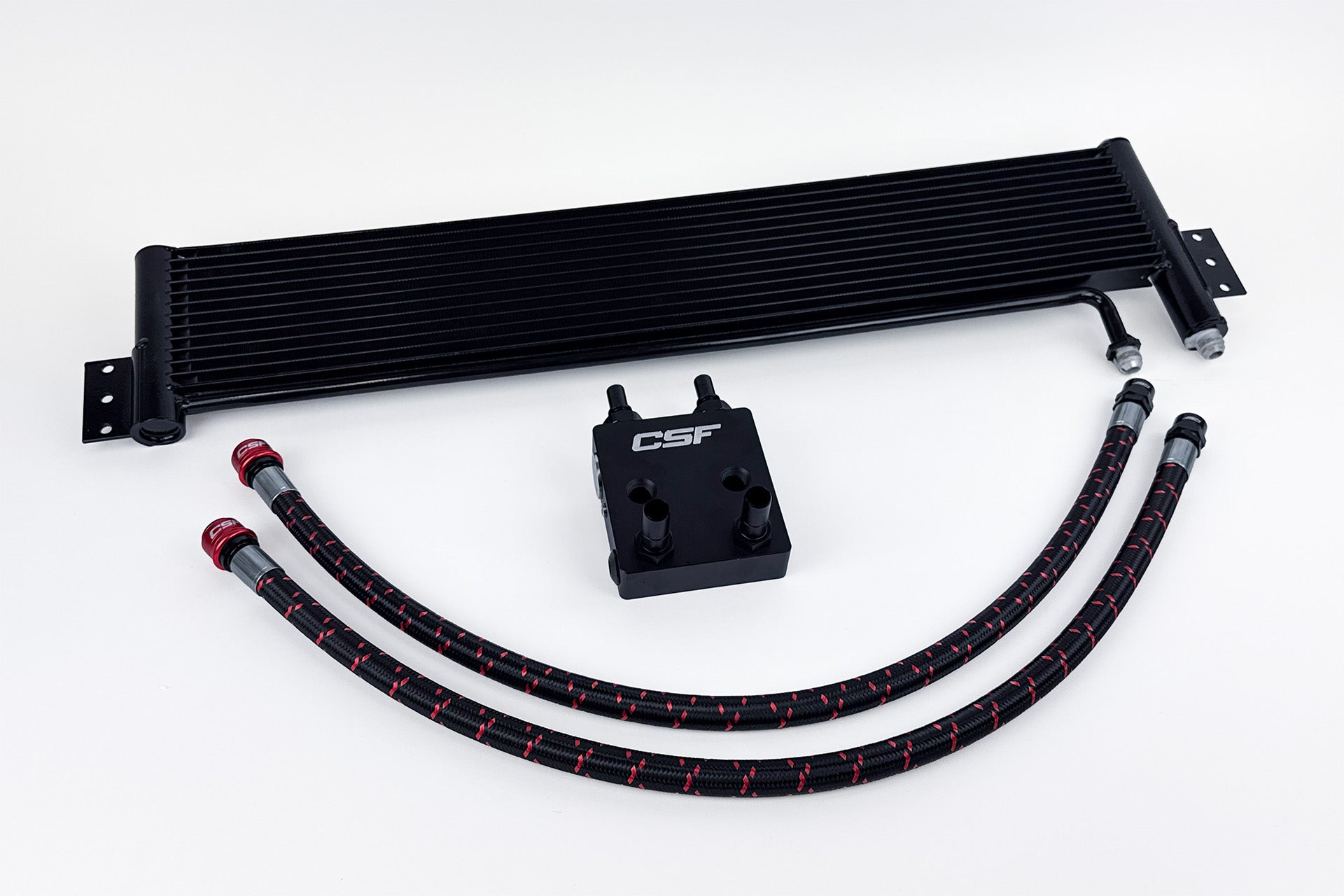

Ford Bronco 2.7L External Transmission Oil Cooler Kit

CSF partnered with DYME PSI for their exceptional quality and innovative quick-release hose and fitting solutions. The DYME Pro/Spec Quick Release Fittings offer race-proven performance with the convenience of tool-free clamshell removal and capable of withstanding up to 10,000 PSI. Quick Release fittings make the installation of the CSF kit much faster than traditional threaded fittings. In addition, they make maintenance like fluid changes much less of a headache. The hoses are a Superstrasse CPE lined stainless steel braided rubber hose for maximum flexibility, flow, and chemical resistance. The lines are ideal for motorsports use and more than capable of handling the rigors of off-roading.

• Super-High Pressure 26mm 12-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• 11 Rows of Cooling Tubes and paired with 12 Rows of 8mm Tall Multi-Louvered Fins
• 100% All Aluminum TIG-Welded Construction

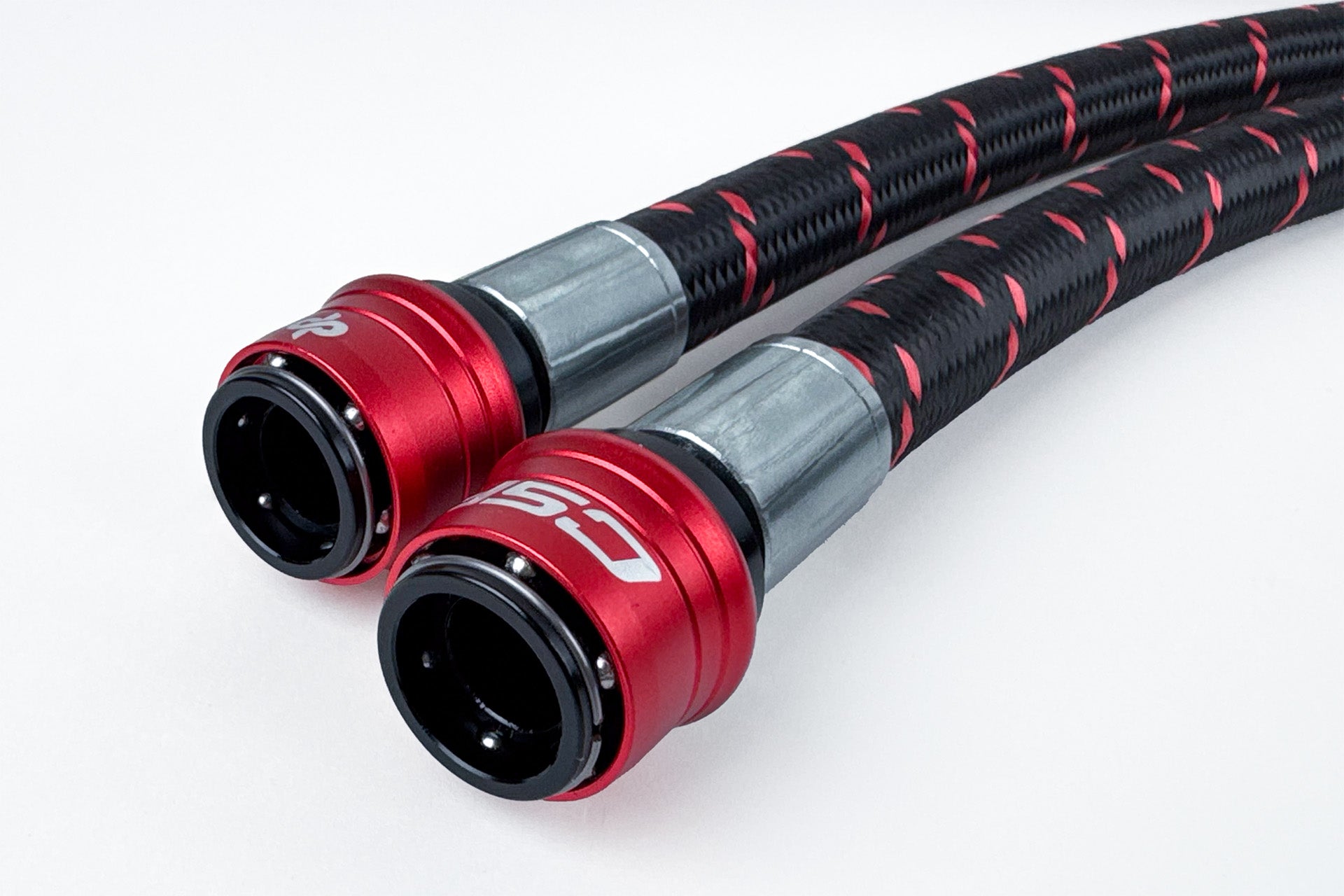

• Motorsports grade lines with patented quick release fittings by DYME PSI
• CNC Billet Machined Thermostatic Plate - 185-203 deg F (85-95 deg C)
• Includes all Brackets and Hardware
• Includes installation instructions
• 2-Year Limited Warranty

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353083505
• ADD-ON: 8228
• Core Height: 122mm
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 26mm
• Core Tube Width: 26mm
• Core Width: 772mm
• Electric Fan: No
• Finish: Black
• Finish/Color: Black
• Grade Type: Performance
• Housing Color: Black
• Inlet Attachment Type: AN Fitting
• Installation Type: Drop-In Fit Installation
• Line Included: Yes
• Material: Aluminum
• Mounting Hardware Included: Yes
• Outlet Attachment Type: AN Fitting
• Strap Included: No
• Thickness: 26mm

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 40 x 8 x 12 inches
• Weight: 13 POUNDS
