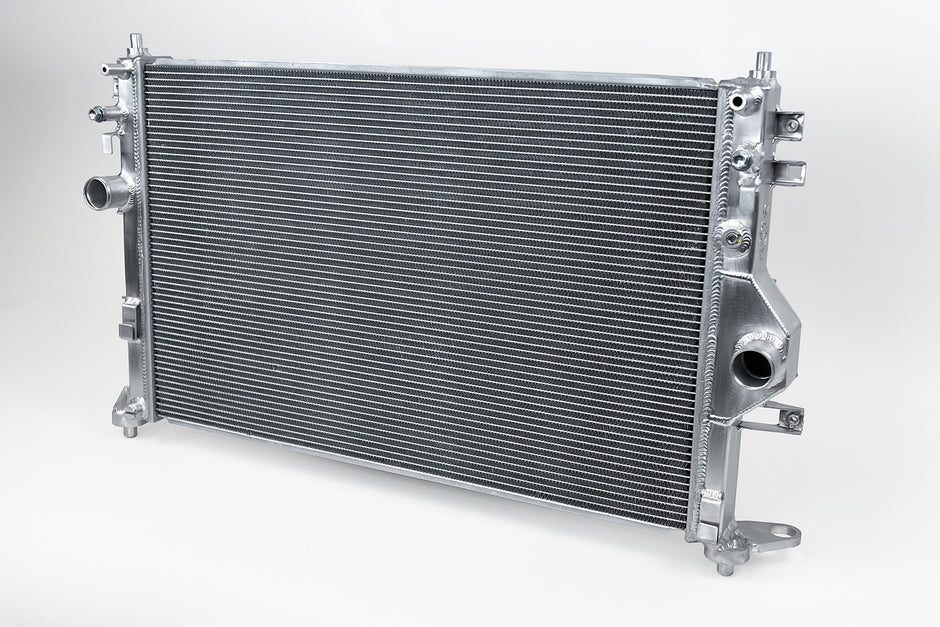

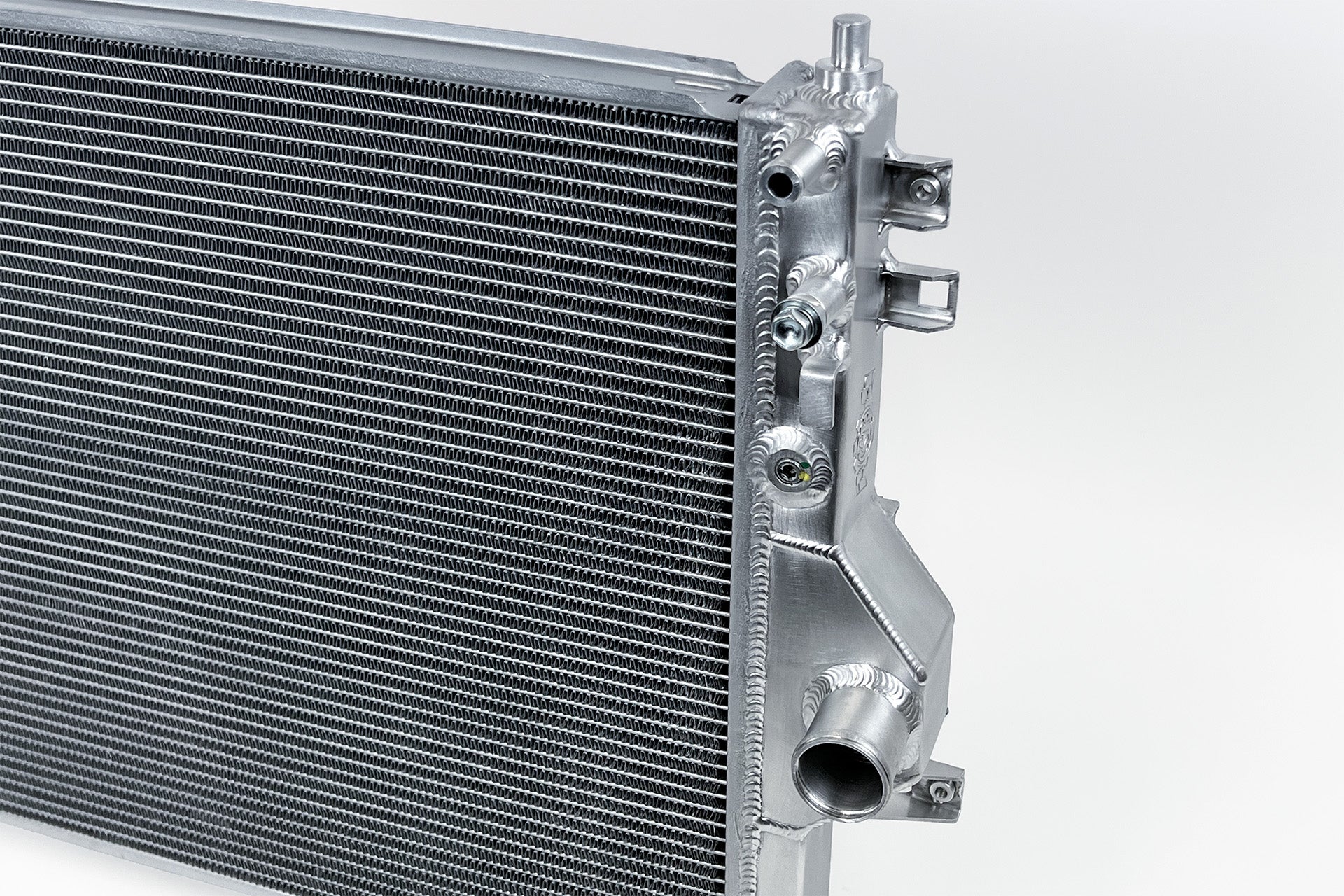

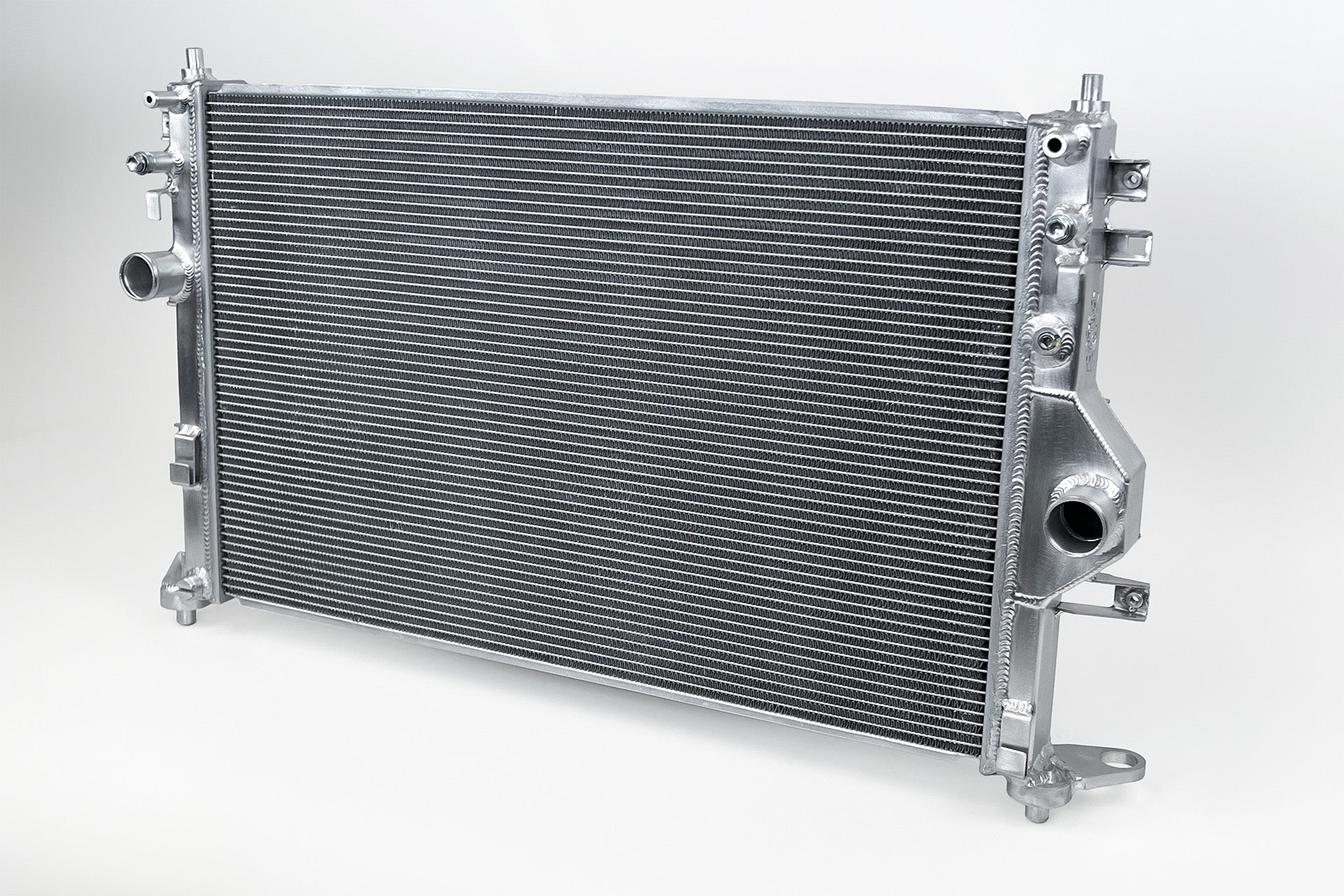

GR Corolla & GR Yaris High-Performance All-Aluminum Radiator

GR Corolla & GR Yaris Cross Compatibility: The engineering team at CSF spent extra time developing a radiator that could fit both the GR Corolla and GR Yaris. The factory radiator are very similar, but not interchangeable. This cross compatibility is a huge advantage for Dealers and Distributors as they only have to stock one part for both applications.

• 2-Row, 42mm Ultra-High-Performance Core
• Hand Brushed Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Pre-plugged 1/8th NPT temperature sensor port on right side tank
• Pre-installed foam strips on top and bottom end plates for increased sealing
• Recessed the lower
• End tanks deigned with additional clearance for the CSF x Jackson Racing Intercooler or other aftermarket intercoolers with larger inlet and outlet pipes
• 100% All Aluminum TIG-Welded Construction

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353072332
• ADD-ON: 8285
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 624mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 388.5mm
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Satin
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 35mm
• Inlet Location: Middle Right
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 35mm
• Outlet Location: Middle Left
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: Indonesia
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 33 x 21 x 7 inches
• Weight: 16 POUNDS
