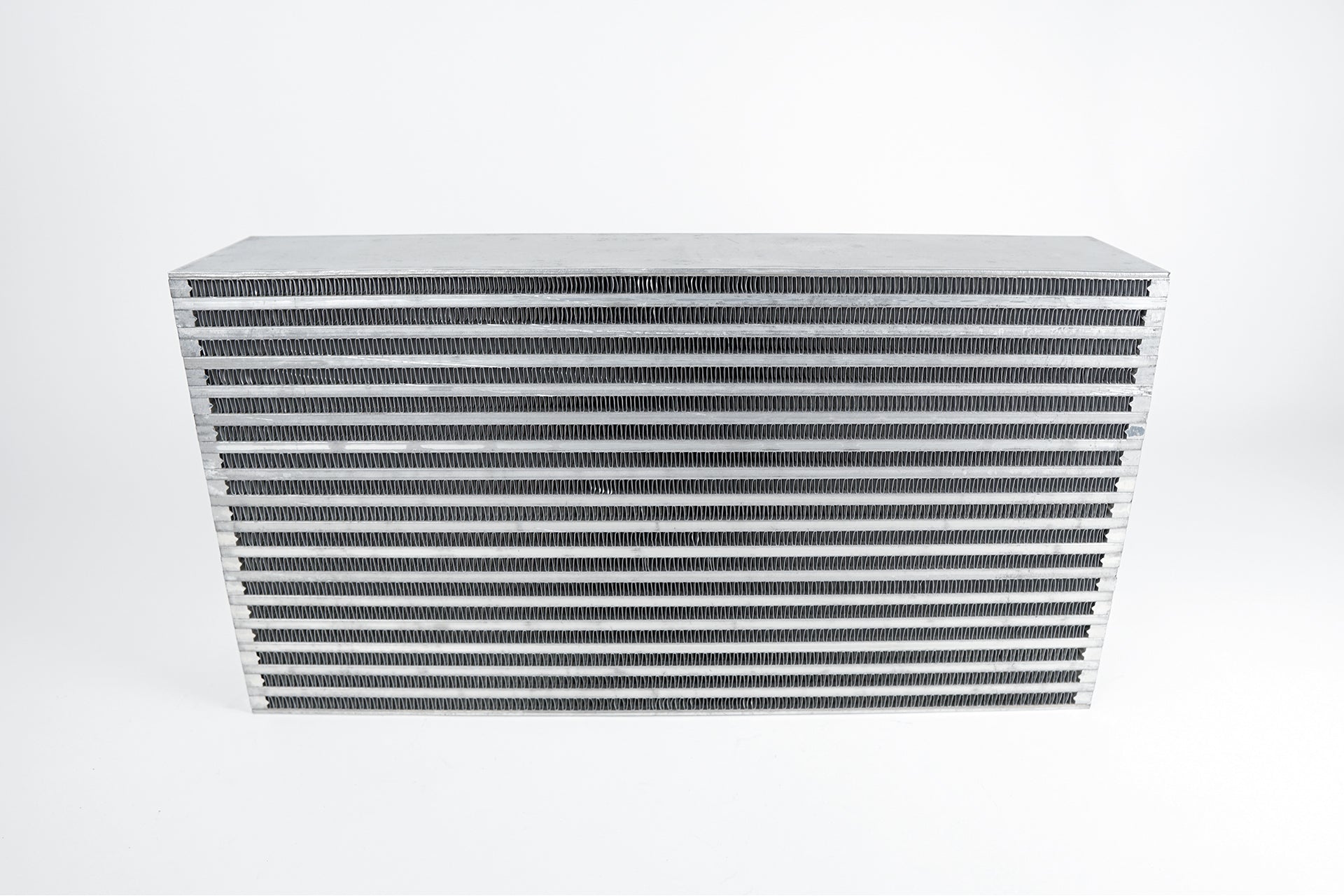

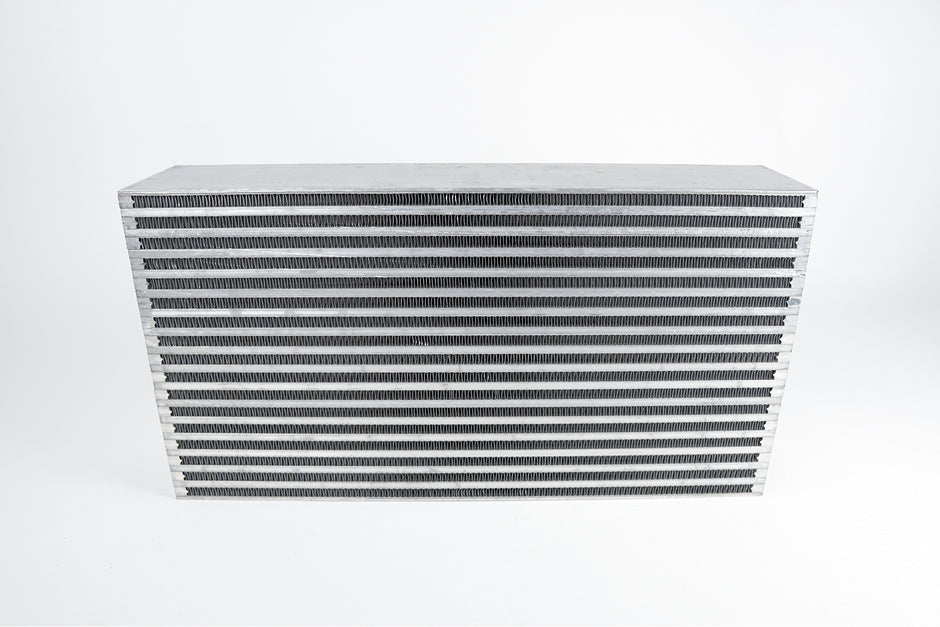

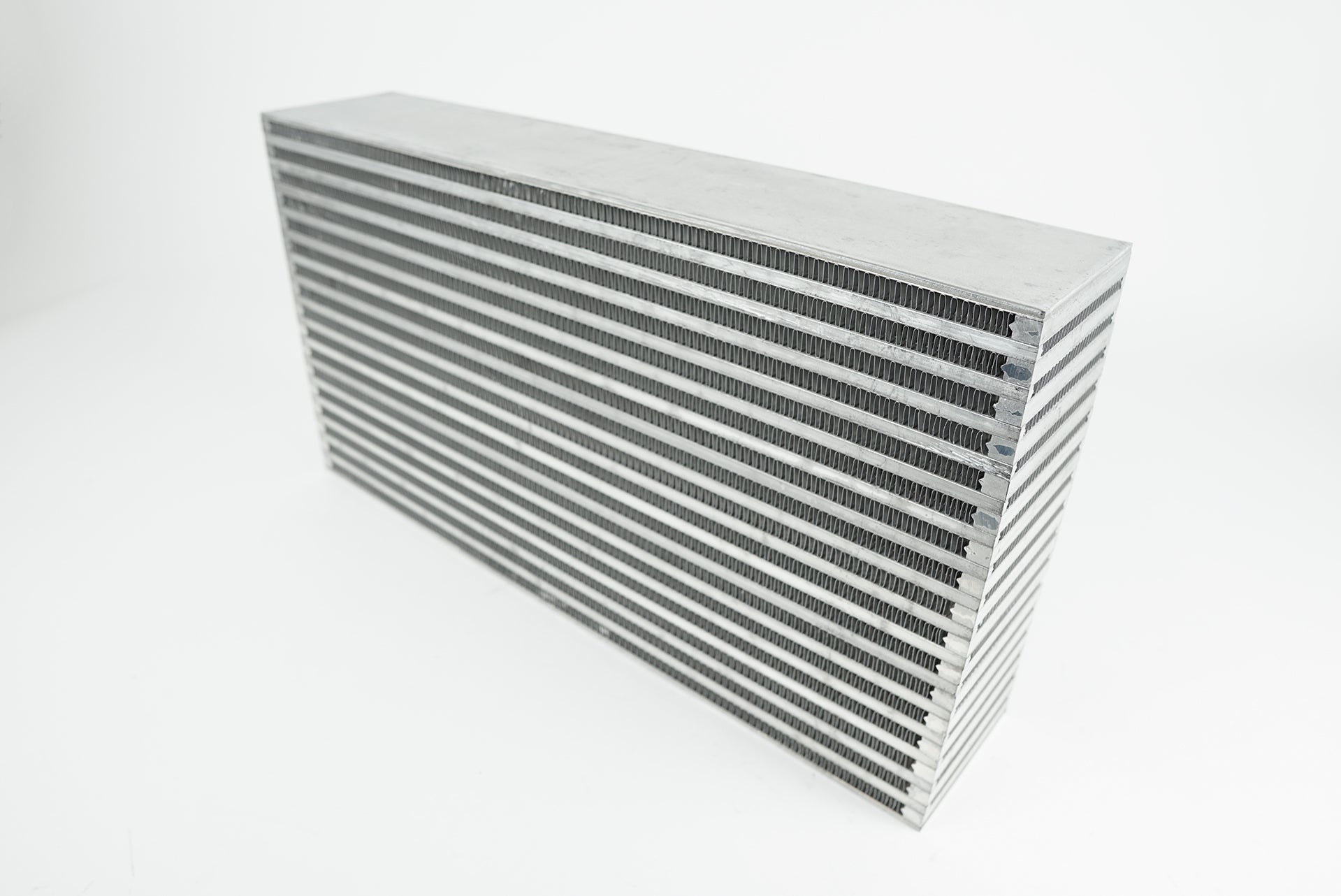

High-Performance Bar & Plate Intercooler Core 22x12x4.5
Increments of 1
Minimum of 1
Maximum of
0Low stock
0
Sale price
$459.00
-0%
Regular price
$459.00
Regular price
$459.00
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 22" x 12" x 4.5" Horizontal Flow Core is rated for 1000 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
- Heavy-Duty Bar & Plate Intercooler Cores
- HP Rating: 1000
- Cross-flow
- Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
- Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
- Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
- Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
- Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
- Strict Quality Control and Quality Testing, Including Individual Pressure Testing
- Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
- Dimensions: 22"x12"x4.5" (560mm x 300mm x 115mm)
Attributes:
- Brand Name: CSF Cooling - Racing & High Performance Division
- GTIN: 00710353081730
- Core Material: Aluminum
- Core Row Quantity: 16
- Grade Type: Performance
- HP Rating: 1000 WHP
- Inlet Quantity: 1
- Installation Type: Universal Cooling Product
- Intercooler Flow Direction: Horizontal
- Intercooler Type: Air-to-Air
- Length: 560mm
- Mounting Hardware Included: No
- Outlet Quantity: 1
- Tank Material: No Tanks Included
- Thickness: 115mm
- Type: Air-to-Air
- Width: 300mm
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 25 x 7 x 15 inches
- Weight: 29 POUNDS
