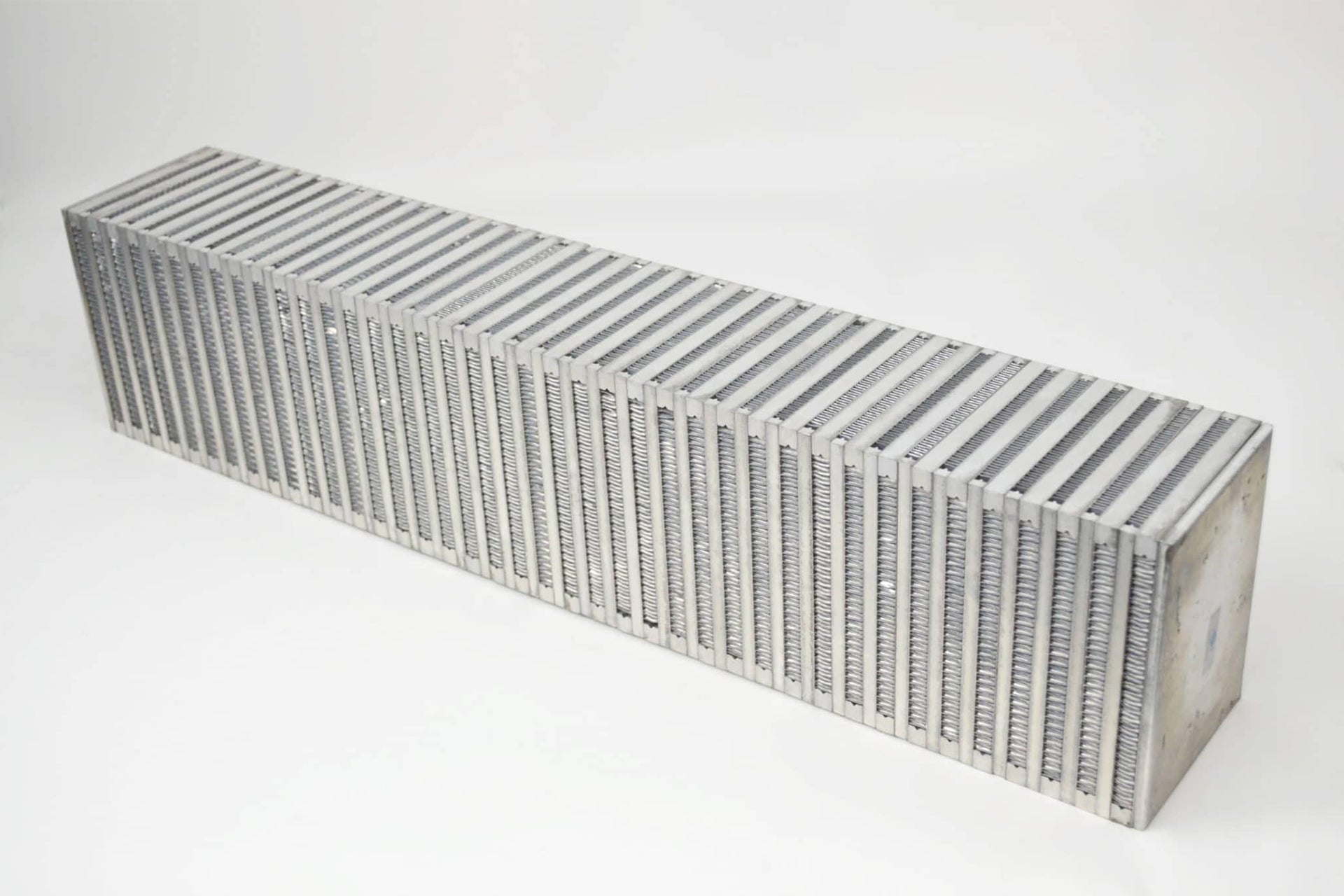

High-Performance Bar & Plate Intercooler Core 27x6x3 - Vertical Flow

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 27" x 6" x 3" Vertical Flow Core is rated for 800 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.

• Heavy-Duty Bar & Plate Intercooler Cores
• HP Rating: 800
• Vertical Flow
• Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
• Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
• Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
• Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
• Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
• Strict Quality Control and Quality Testing, Including Individual Pressure Testing
• Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
• Dimensions: 27"x6"x3" (685mm x 150mm x 75mm)

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353080689
• Core Material: Aluminum
• Core Row Quantity: 39
• Grade Type: Performance
• HP Rating: 800 WHP
• Inlet Quantity: 1
• Installation Type: Universal Cooling Product
• Intercooler Flow Direction: Vertical
• Intercooler Type: Air-to-Air
• Length: 685mm
• Mounting Hardware Included: No
• Outlet Quantity: 1
• Tank Material: No Tanks Included
• Thickness: 75mm
• Type: Air-to-Air
• Width: 150mm

Extended Information:

• Country of Origin: China
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30 x 6 x 9 inches
• Weight: 18 POUNDS
