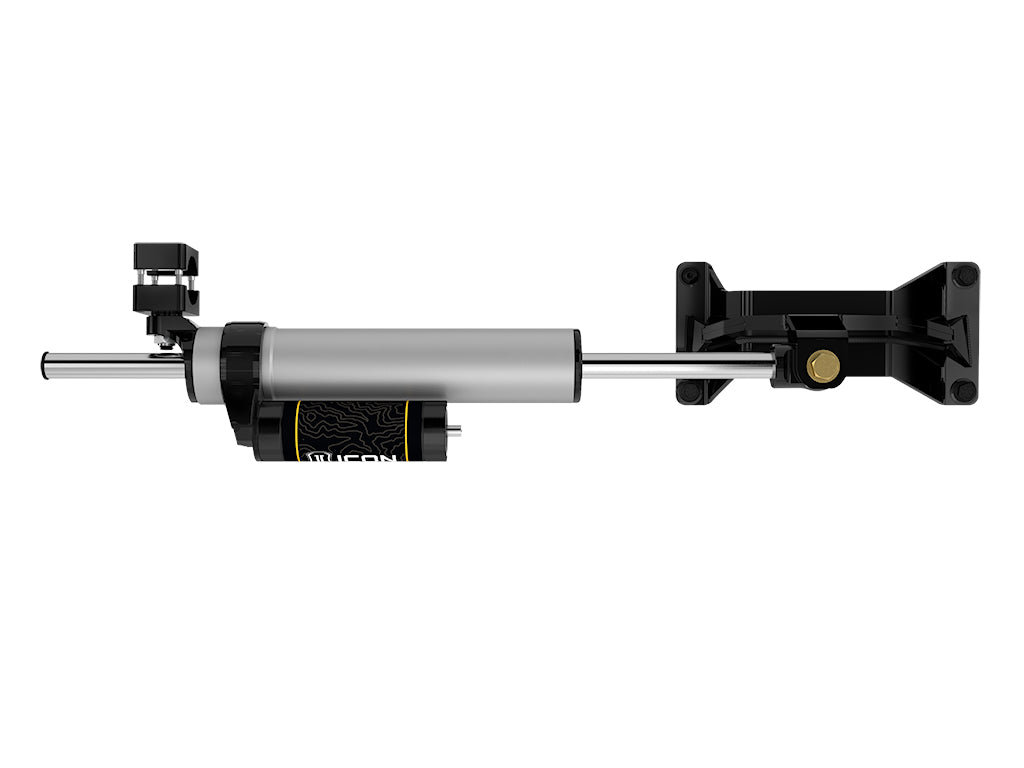

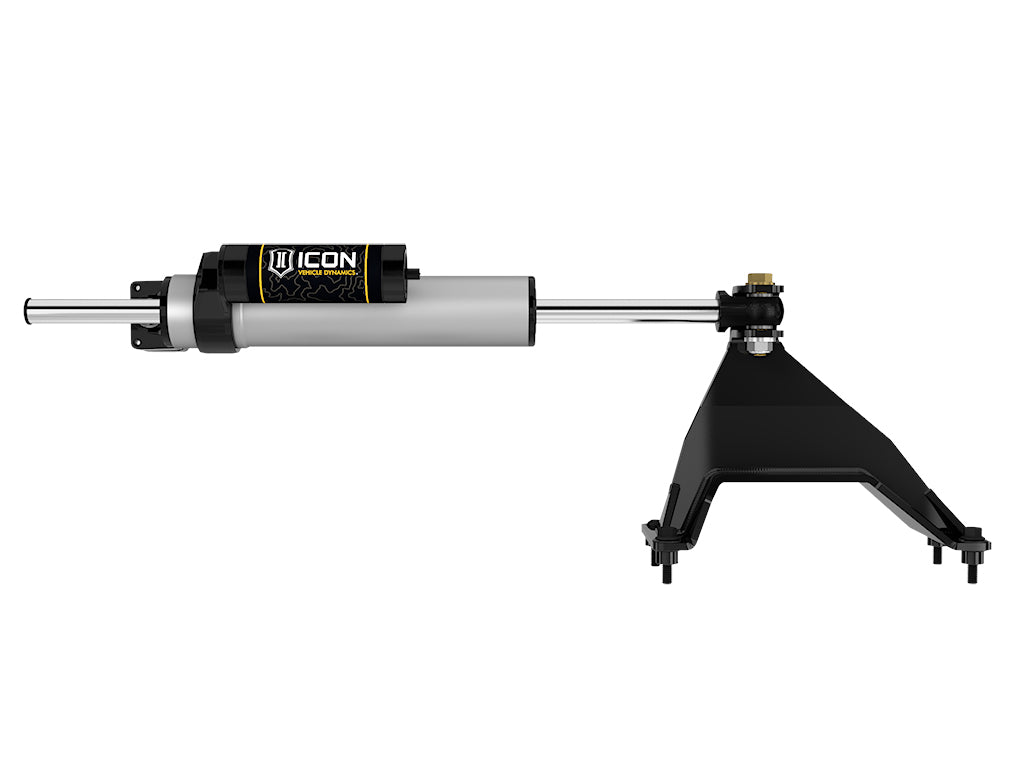

ICON 05-22 Ford Super Duty 2.5 Piggyback Centerline Stabilizer Kit

The ICON Centerline Steering Stabilizer features a through-shaft design to eliminate the push/pull sensation associated with traditional steering stabilizers, resulting in more consistent damping and symmetrical steering feel throughout the input range. The large 2.5-inch diameter stabilizer body and piggyback reservoir increases fluid volume to prevent performance fade due to heat and cavitation. This unit provides a significant increase in steering damping compared to the stock equipment, for an improved driving experience with both stock size and oversize aftermarket wheels and tires. The kit also allows for increased steering travel compared to other aftermarket steering stabilizers. The stabilizer body shares components with ICON's proven 2.5 Series shock absorbers, meaning the unit is fully rebuildable. 2.5 Series features a 6061 hard anodized aluminum shock body for excellent corrosion resistance and a beefy 7/8” chrome plated induction-hardened steel shaft. FK Rod End bearings provide precise function & feel throughout steering range. Installation is 100% bolt-on using common hand tools and should be an easy job for both professional mechanics and experienced DIY'ers.

• Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
• FK Rod End bearings for precise function & feel throughout steering range
• 100% bolt-on installation
• Provides symmetrical steering feel throughout input range
• Drastically increased steering damping over stock unit
• Offers increased wheel travel compared to ICON's dual steering stabilizer kit
• Fully rebuildable ICON Vehicle Dynamics 2.5 Series shock
• Piggyback reservoir design
• 6061 hard anodized aluminum shock body provides excellent corrosion resistance
• 7/8” chrome plated induction-hardened steel shaft
• 5WT shock oil for consistent suspension damping along a wide temperature range

Vehicle Specific

• ICON 05-22 FSD 2.5 PB CENTERLINE STABILIZER KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103421155
• 50: No
• 502: 0.875
• 2327: 2.5
• 2328: Oil
• 2329: Aluminum
• 3390: Performance
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Adjustable Damping: No
• California Prop 65 Warning: Yes
• Color: Black/Gray
• Lower Mount Type: Eyelet
• Mounting Bracket Included: yes
• Shaft Material: Chrome
• Steering Stabilizer Configuration: Through-Shaft
• Upper Mount Type: Clamp

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 22.0000 POUNDS
