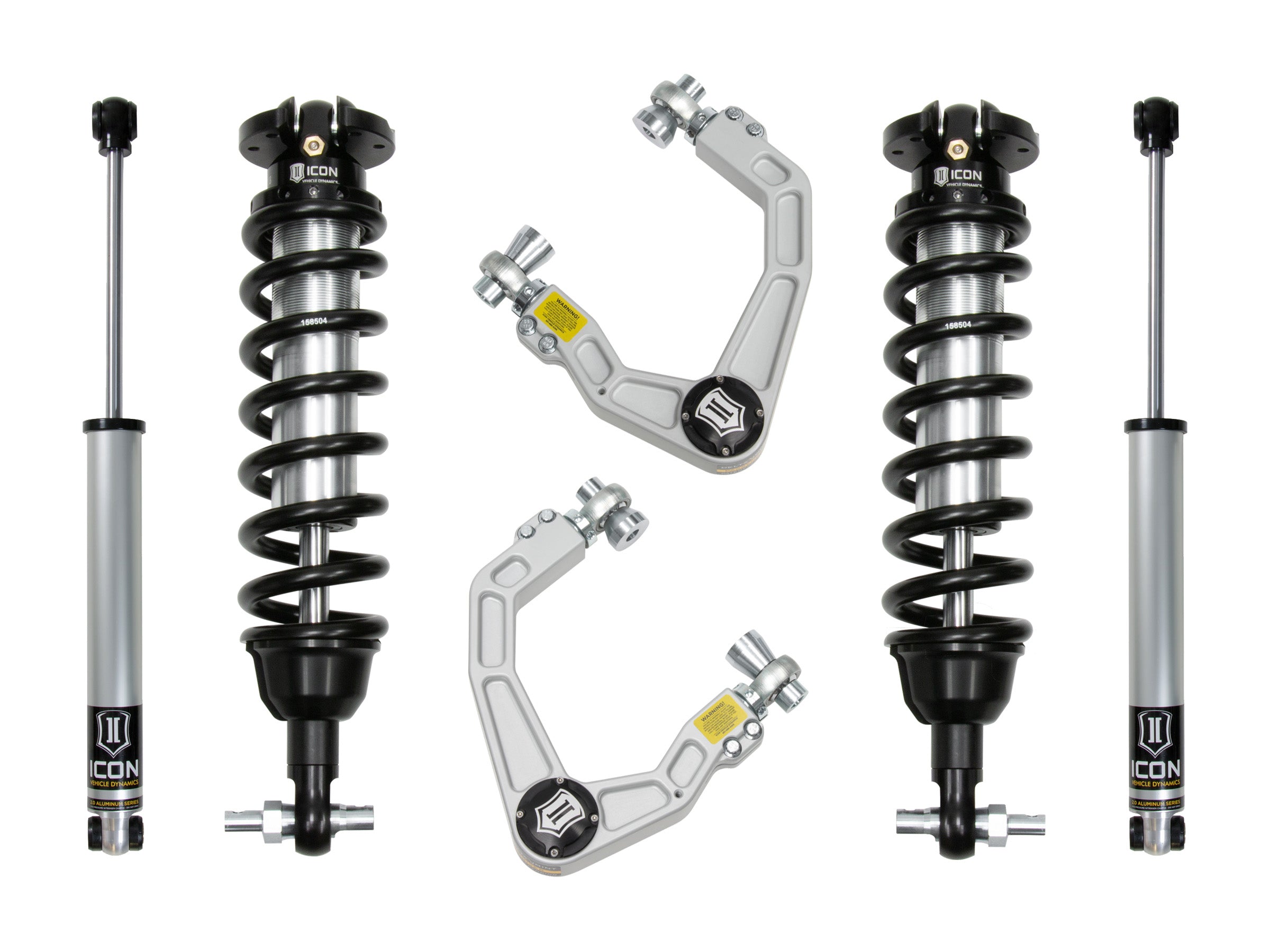

ICON 19-21 Ford Ranger 0-3.5" Lift Stage 2 Susp System Billet UCA Al Knuckle

This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Height-adjustable coilovers provide a range of 0-3.5” of front lift height
• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Delta Joint ball joints carry ICON's exclusive 5 year limited warranty
• Direct bolt-in design makes for a simple and straightforward installation
• Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
• Fits 2WD & 4WD applications
• Increased lift height allows for fitment of larger and more aggressive tires
• 35% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
• Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series coilovers)
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and revalvable

Vehicle Specific

• ICON 19-21 FORD RANGER 0-3.5" STAGE 2 SUSPENSION SYSTEM W BILLET UCA AL KNUCKLE

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103422428
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 7325: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• California Prop 65 Warning: Yes
• Maximum Lift Front: 3.5
• Minimum Lift Front: 0
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 13.0000 x 7.0000 inches
• Weight: 78.0000 POUNDS
