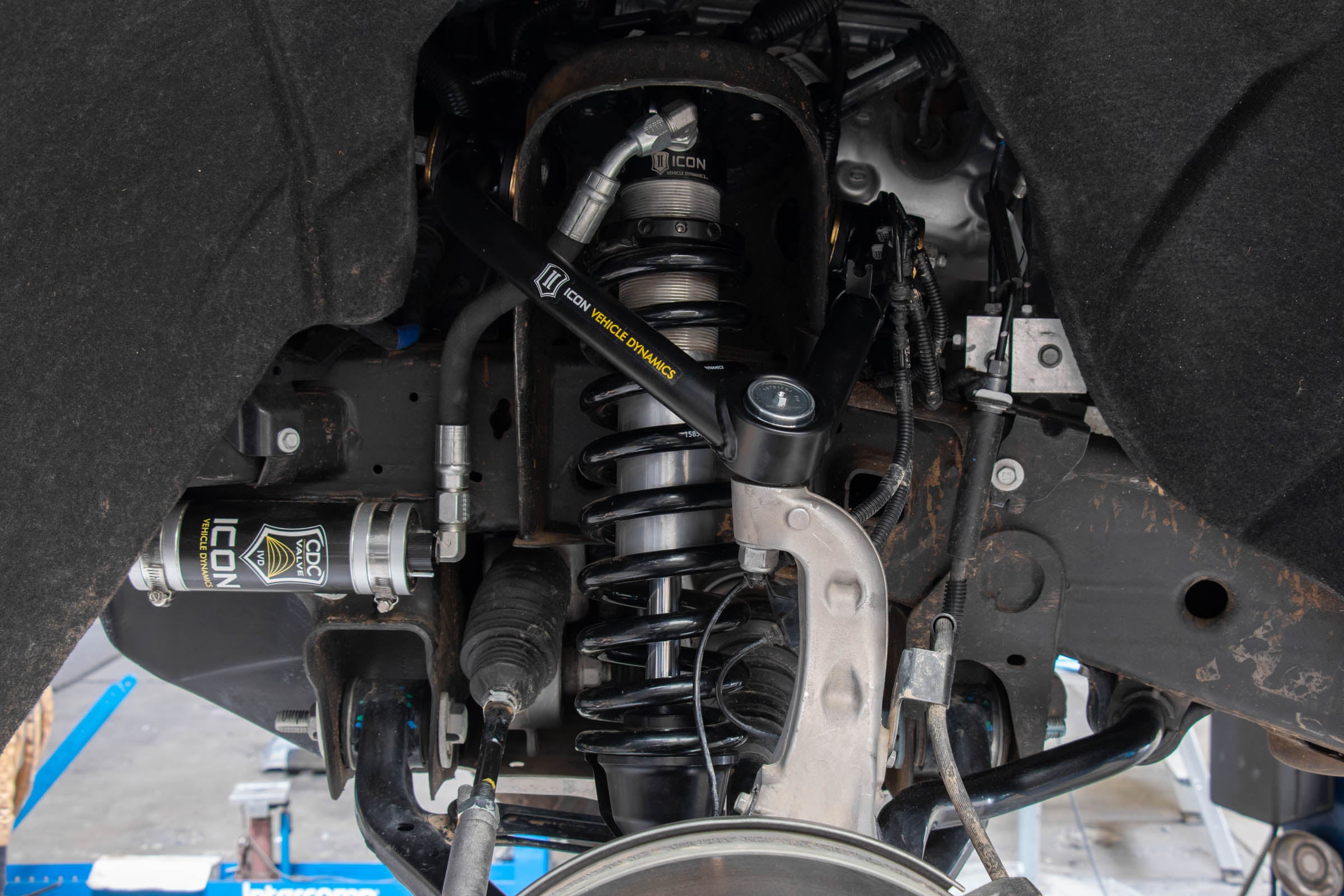

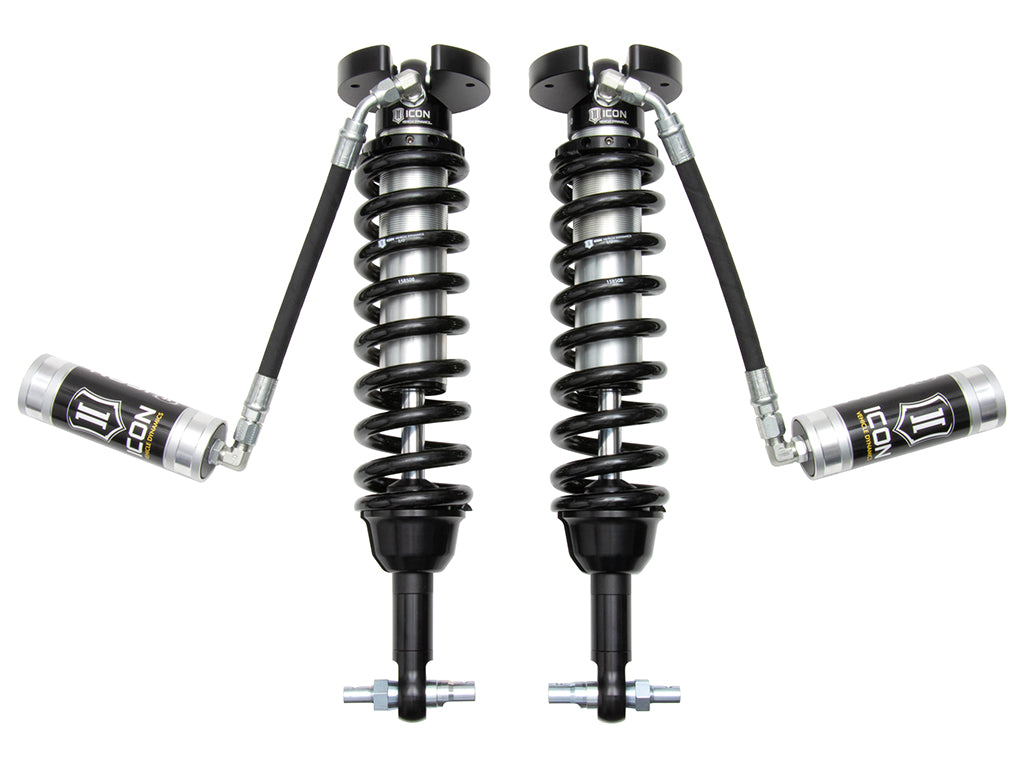

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2023 GM Silverado/Sierra 1500. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your GM truck.
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended offroad use
- Height-adjustable coilovers offer 1.5-3.5" of front lift height
- ICON engineered Eibach coil springs
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no drilling or welding necessary for installation
Vehicle Specific
- ICON 19-23 GM 1500 EXT TRAVEL 2.5 VS RR COILOVER KIT
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103406039
-
306: Yes
-
2064: Steel
-
2329: Steel
-
3085: Single Tube
-
3096: Black
-
3390: Performance
-
7233: No
-
8703: No
-
9476: Yes
-
9783: Yes
-
10107: 700
-
10527: No
-
10528: Yes
-
10530: Passive
-
10535: 3.5
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
-
Adjustable Damping: NO
-
Body Diameter: 2.5
-
California Prop 65 Warning: Yes
-
Coil Over Springs Included: Yes
-
Compressed Length: 17.97
-
Cylinder Color: Silver
-
Cylinder Finish: Cadmium Plated
-
Damping Type: Oil
-
Extended Length: 23.83
-
Gas Charged: Yes
-
Lower Mount Type: Eyelet
-
Material: Aluminum
-
Maximum Lift: 3.5
-
Minimum Lift: 0
-
OEM Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Tires: (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
-
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
-
Reservoir Style: Remote
-
Self-Leveling: No
-
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
-
Shaft Diameter: 0.875
-
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
-
Shock Absorber Rod End Measuring Point: Center of Eylet
-
Spring Rate Type: Linear
-
Travel Length: 5.87
-
Upper Mount Type: Mounting Plate
-
Valving Type: Digressive
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 27.0000 x 12.0000 x 8.0000 inches
-
Weight: 56.0000 POUNDS
