ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
- Adjustable coilovers yield 1.5-3.5” of front lift height over stock
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered Eibach coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" shaft
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
Vehicle Specific

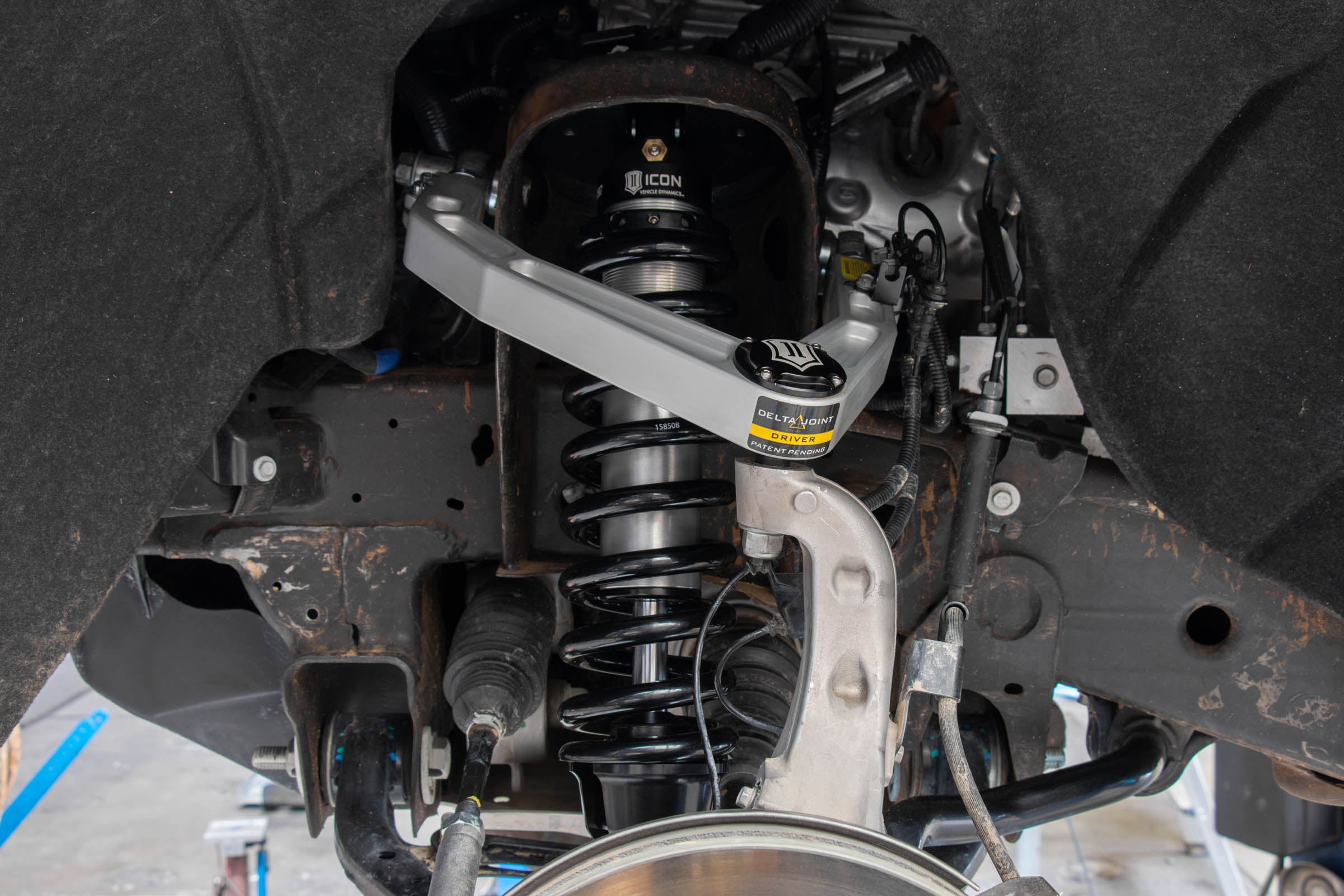

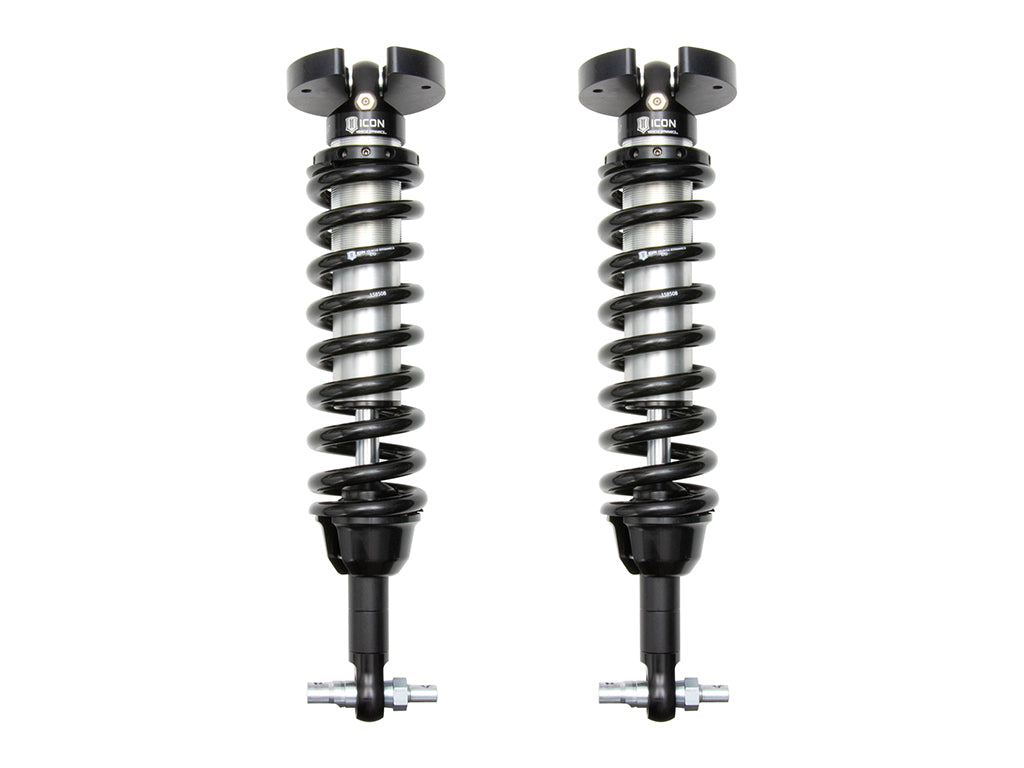

- ICON 19-23 GM 1500 EXT TRAVEL 2.5 VS IR COILOVER KIT
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103406022
-
306: Yes
-
2064: Steel
-
2329: Steel
-
3085: Single Tube
-
3096: Black
-
3390: Performance
-
7233: No
-
8703: No
-
9783: Yes
-
10107: 700
-
10527: No
-
10528: Yes
-
10530: Passive
-
10535: 3.5
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
-
Adjustable Damping: NO
-
Body Diameter: 2.5
-
California Prop 65 Warning: Yes
-
Coil Over Springs Included: Yes
-
Compressed Length: 17.97
-
Cylinder Color: Silver
-
Cylinder Finish: Cadmium Plated
-
Damping Type: Oil
-
Extended Length: 23.83
-
Gas Charged: Yes
-
Lower Mount Type: BAR PIN
-
Material: Aluminum
-
Maximum Lift: 3.5
-
Minimum Lift: 1.5
-
OEM Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Tires: (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
-
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
-
Remote Reservoir: NO
-
Reservoir Style: Internal
-
Self-Leveling: No
-
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
-
Shaft Diameter: 0.875
-
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
-
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
-
Spring Rate Type: Linear
-
Travel Length: 5.87
-
Upper Mount Type: Mounting Plate
-
Valving Type: Digressive
Extended Information:
-
Country of Origin: US
-
Emissions : 4
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 27.0000 x 12.0000 x 6.0000 inches
-
Weight: 51.0000 POUNDS
