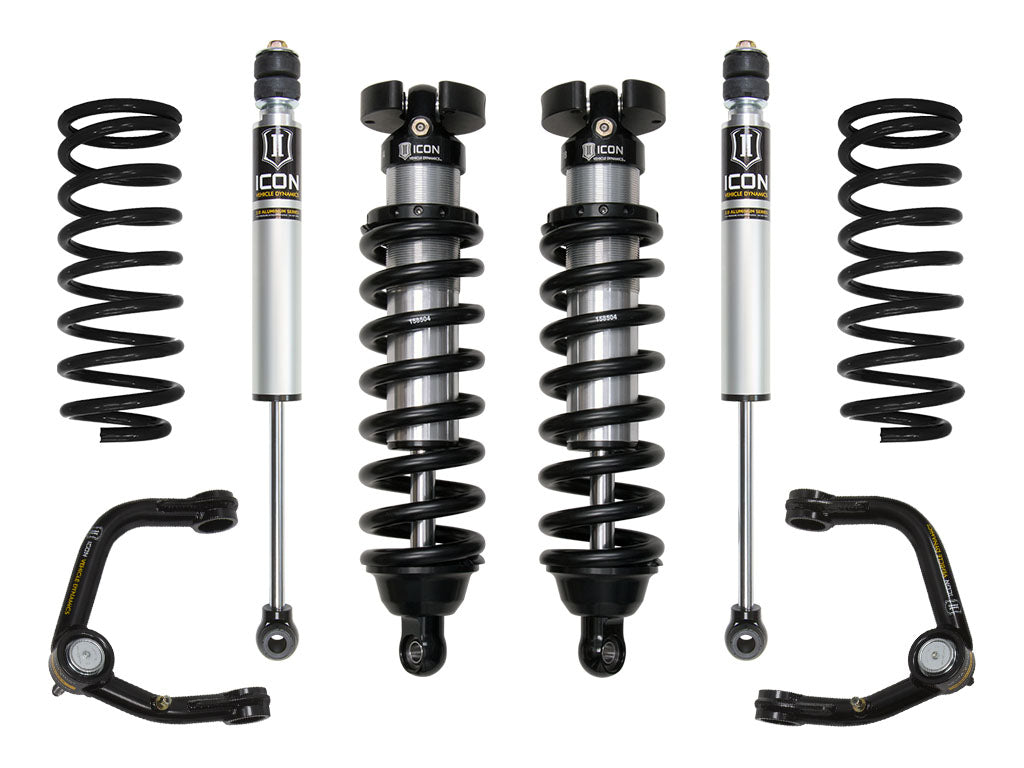

Continue shoppingICON 1996-2002 Toyota 4Runner 0-3" Lift Stage 2 Suspension System Tubular UCA
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$3,029.86
-0%
Regular price
$3,029.86
Regular price
$3,029.86
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- CNC machined 6061 aircraft-grade aluminum components
- Tubular steel upper control arms feature ICON Delta Joints
- Bolt-on design makes for straightforward install
- Decreased body roll
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- Coilovers are adjustable from 0-3" of lift height
- ICON engineered rear coils provide 1" of lift and improved performance
- Shocks are fully rebuildable and revalveable
- ICON 96-02 4RUNNER 0-3" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103417332
- 30: Yes
- 1078: 650
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 3
- 7325: 2
- 7326: 2
- 9270: Linear
- 9271: Linear
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 158508 - COIL SPRING 1400.0300.0700 BLACK
- Adjustable Compression: No
- Adjustable Control Arm: No
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Front Reservoir Style: Internal
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 3
- Maximum Lift Rear: 1
- Minimum Lift Front: 0
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Emulsion
- Rear Shock Body Diameter: 2
- Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Extended Information:
- Country of Origin: United States
- Emissions : Announced
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.0000 x 13.0000 x 7.0000 inches
- Weight: 96.0000 POUNDS
PDF:
