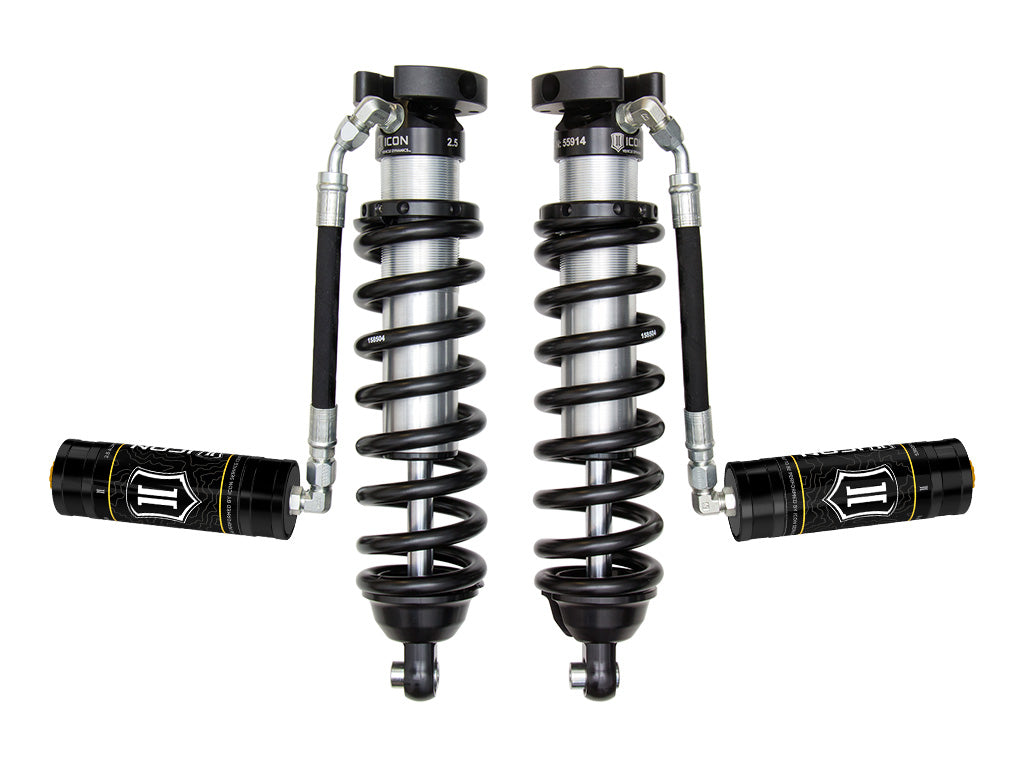

ICON 1996-2004 Toyota Tacoma 0-3" Lift FrontV.S. 2.5 Series Coilover Kit Extended Travel Remote Reservoir 700 Lbs/in Spring Rate

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.

• Increased wheel travel over stock
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned front shocks for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• Improved ride quality over stock on and off-road
• Height-adjustable coilovers offer 0-3" of lift height adjustment
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
• FK Rod End bearings for extended longevity and minimal deflection

Vehicle Specific

• ICON 96-04 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103404165
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: No
• 10107: 700
• 10527: No
• 10528: Yes
• 10530: Passive
• 10535: 3
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Adjustable Damping: NO
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 14.5
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Type: Oil
• Extended Length: 19.85
• Gas Charged: yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Maximum Lift: 3
• Minimum Lift: 0
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Reservoir Style: Remote
• Self-Leveling: No
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: CENTER OF EYELET
• Spring Rate Type: Linear
• Travel Length: 5.36
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 55.0000 POUNDS
