Continue shoppingICON 1997-2023 Nissan Patrol Y61 2" Lift Stage 2 Suspension System
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$3,409.30
-0%
Regular price
$3,409.30
Regular price
$3,409.30
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

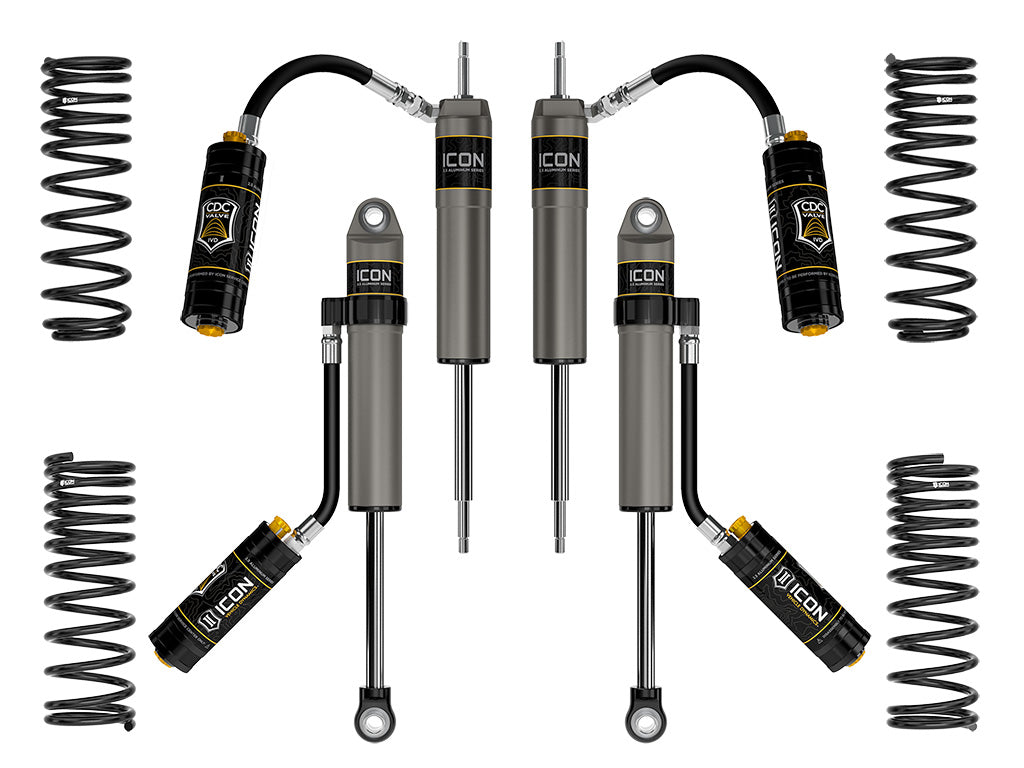

The Stage 2 suspension system includes dual rate front and rear coil springs that provide 2” of lift over stock to allow for the installation of larger, more aggressive wheel tire combinations and increased ground clearance. 2.5 Aluminum Series remote reservoir shock absorbers with CDCV that feature a vehicle specific valving are also included for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. ICON CDC Valve technology allows end-users to quickly adjust the ride quality of their shocks with the simple turn of a knob with no tools required. With ten high-resolution settings to choose from, the ICON CDC Valve will allow for the perfect ride quality across any terrain. ICON designed these suspension systems to give the Y61 owner confidence in knowing that their vehicle can handle the toughest of situations. Whether it's weekend trips to the dunes or a month-long holiday in the bush, these adventures can now be enjoyed to their full potential.
- Front and rear dual rate coil springs provide 2.0” of lift height over stock
- Increased front and rear wheel travel over stock
- Vehicle specific tuned ICON 2.5 Aluminum Series remote reservoir shocks for superior performance and ride quality
- ICON CDC Valve technology allows for 10 settings of quick and easy compression damping adjustability
- Corrosion resistant hard anodized shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- 100% bolt-on design
- ICON 97-23 PATROL (Y61) 2" STAGE 2 SUSPENSION SYSTEM
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103421773
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 2
- 5782: Open
- 5783: Open
- 7325: 2
- 7326: 2
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Damping Adjustment Type: Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Progressive Dual Rate
- Maximum Lift Front: 2
- Maximum Lift Rear: 2
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Remote
- Rear Shock Body Diameter: 2.5
- Rear Spring Rate Type: Progressive Dual Rate
- Recommended Aftermarket Tires: 305/70R17 (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Extended Information:
- Country of Origin: US
- Emissions : 4
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 39.0000 x 10.0000 x 9.0000 inches
- Weight: 125.0000 POUNDS
PDF:
