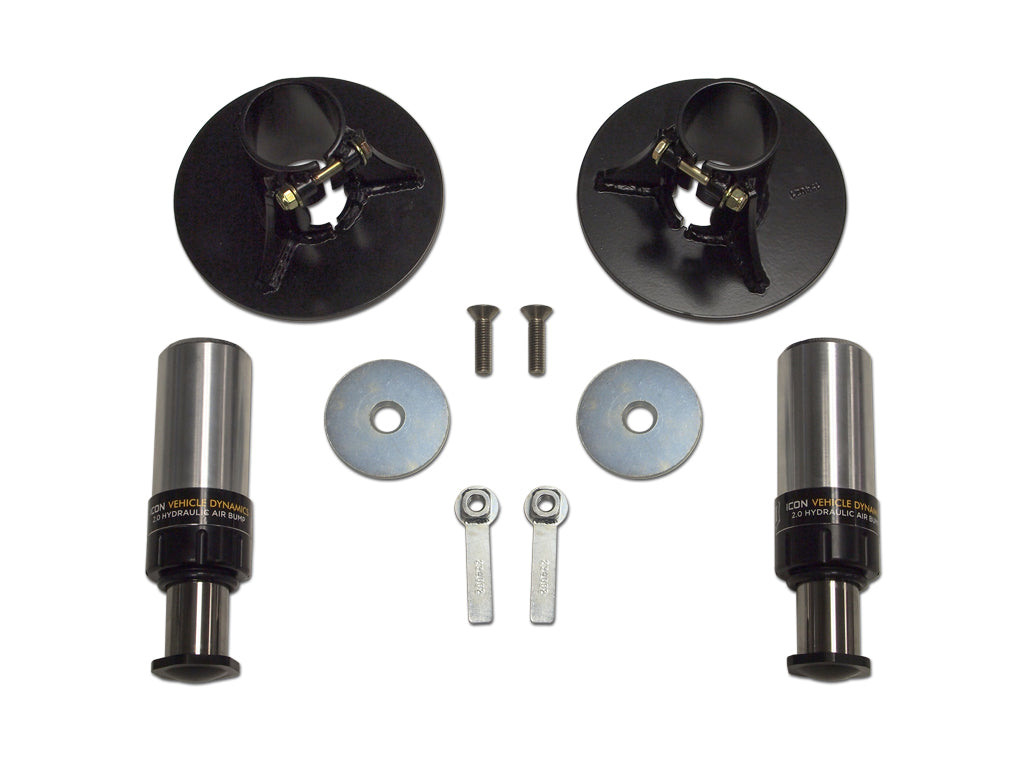

ICON 2003-2024 Toyota 4Runner/2007-2014 FJ Cruiser/2003-2023 Lexus GX Rear Air Bump Kit

ICON Vehicle Dynamics now offers a bolt-in hydraulic bump stop Kit for the 2007-2014 Toyota FJ Cruiser AND 2003-2024 4Runner. This kit reduces rear-end “kick” and helps to improve the overall off-road performance of the vehicle. The OEM rubber bumpstops have a limited energy absorption capacity that is released rather uncontrollably upon rebound, resulting in a harsh ride and ill-handling vehicle in rough terrain. The ICON hydraulic bump stops are velocity sensitive which means that the amount of energy absorbed increases the faster they are engaged, so those harsh g-outs and square edges are less likely to interrupt your off-road adventures. Vehicles equipped with the ICON hydraulic bumpstop kit will have an increased bottom-out resistance over stock, as well as an improved drivability off-road. This kit installs easily inside the coil, and the bumpstops are fully rebuildable with the ability to be tuned for a custom ride. With a simple installation, proven effectiveness, and no loss in travel there is no reason not to bolt up the ICON Vehicle Dynamics hydraulic bumpstop kit to your ride and experience the difference.

• Hydraulic / pneumatic bumpstop increases bump energy capacity
• Urethane rod seal and wiper for long service life
• User serviceable
• Velocity sensitive bumpstop increases the amount of energy absorbed the faster it is hit
• Reduces rear end kick and improves overall performance
• Increased bottom resistance over stock
• No loss in travel
• Easy installation inside coil
• Pre-tuned for most users
• Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
• CAD Plated body for corrosion free service

Vehicle Specific

• ICON 07-14 FJ/03-24 4RUNNER REAR AIR BUMP KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103402963
• 10: Aluminium
• 3390: Performance
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Attachment Type: Bolt On
• Bumper Material: Hydraulic
• Bumper Type: Hydraulic
• California Prop 65 Warning: Yes
• Color: Black
• Diameter: 2
• Grade: Performance
• Length: 1.75
• Mounting Hardware Included: yes
• Mounting Hardware Required: No
• Outside Diameter: 2
• Service Parts: 202004 - 2.0 AIR BUMP REBUILD KIT
• Travel Length: 1.75

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 10.0000 x 10.0000 x 4.0000 inches
• Weight: 14.0000 POUNDS

PDF:
