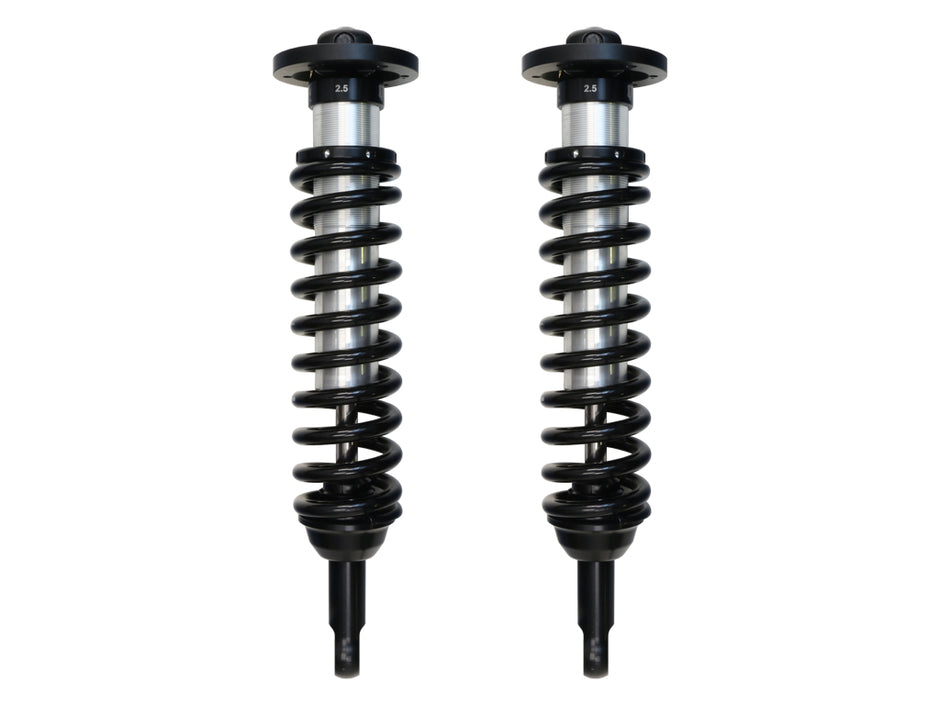

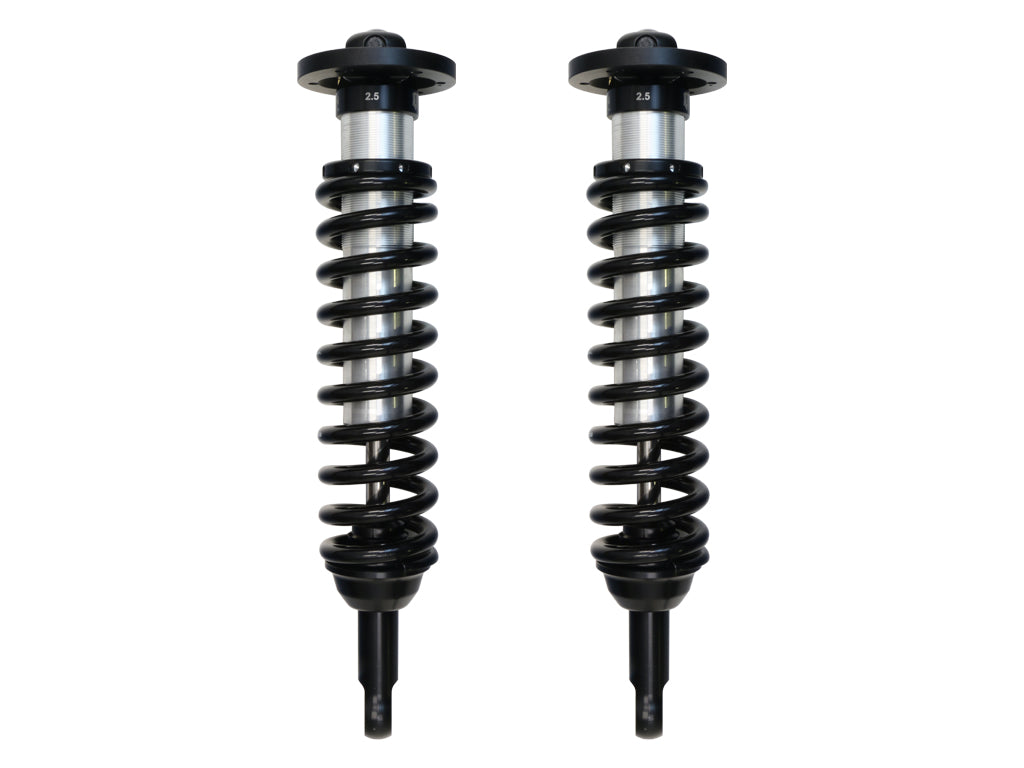

ICON 2004-2008 Ford F-150 2WD 0-2.63” Lift Front V.S. 2.5 Series Coilover Kit Internal Reservoir

ICON Vehicle Dynamics V.S. Series 2.5" coil-over shocks are an incredible upgrade for the front end of 2004-2008 Ford F-150 2WD trucks. ICON's Vehicle-specific valving provide a sport tuned feel on and off-road while 0-2.63" lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable 0-2.63" lift height
• ICON engineered Eibach Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8 polished nitro steel shaft
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no drilling,cutting or welding necessary for installation

Vehicle Specific

• ICON 04-08 F150 2WD 0-2.63" 2.5 VS IR COILOVER KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103406886
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 9476: No
• 9783: Yes
• 10107: 600
• 10527: No
• 10528: Yes
• 10530: Passive
• 10535: 2.63
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Damping: No
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 16.97
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Type: Oil
• Extended Length: 22.33
• Gas Charged: Yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Maximum Lift: 2.63
• Minimum Lift: 0
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Reservoir Style: Internal
• Self-Leveling: No
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Rate Type: Linear
• Travel Length: 5.37
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 55.0000 POUNDS
