ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift Stage 10 Suspension System Billet CDXS
Increments of 1
Minimum of 1
Maximum of
0Low stock
0
Sale price
$7,121.51
-0%
Regular price
$7,121.51
Regular price
$7,121.51
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
- 2.5 Aluminum Series RXT Omega Bypass rear shocks with compression and rebound adjustability provide the ultimate in ride control

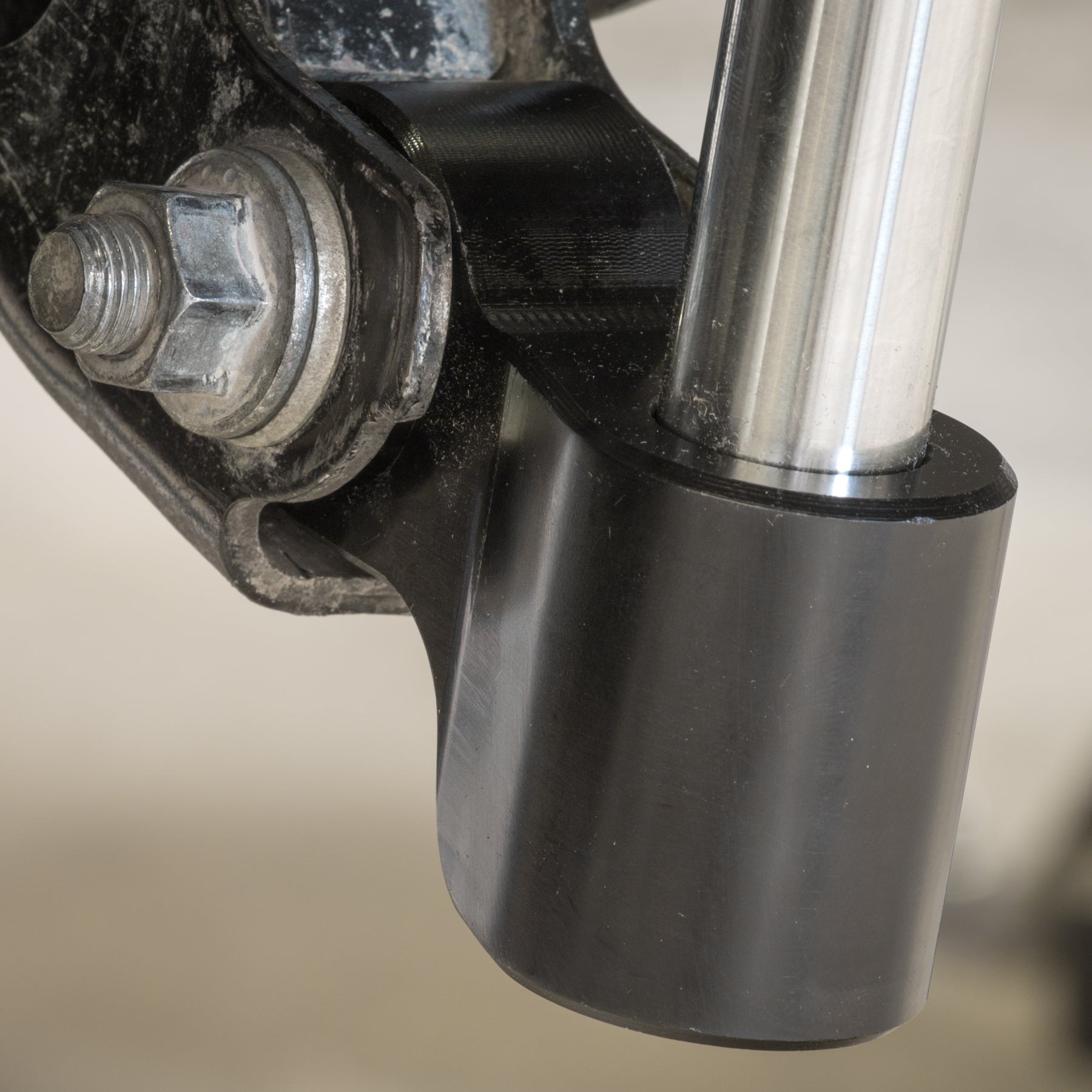

- ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
- Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
- Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
- Front coilovers are ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- Extended Travel coilovers offer maximum wheel travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- ICON 05-15 TACOMA 0-3.5"/16-23 0-2.75" STAGE 10 SUSPENSION SYSTEM BILLET CDXS
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103436067
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 3.5
- 5778: 3
- 5782: Closed
- 5783: Closed
- 6111: 8
- 7325: 2
- 9271: Linear
- 10107: 650
- 11410: 3.5
- 11411: 2.625
- 11412: Steel
- 11413: Black
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: Rear Only
- California Prop 65 Warning: Yes
- Front Damping Adjustment Type: Dual Speed/Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 3.5
- Maximum Lift Rear: 2.625
- Minimum Lift Front: 0
- Minimum Lift Rear: 1.875
- OEM Wheels & Tires Fitment: Yes
- Rear Damping Adjustment Type: Bypass/Manual
- Rear Reservoir Style: Remote
- Rear Shock Body Diameter: 2.5
- Rear Spring Rate Type: Variable
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 55.0000 x 40.0000 x 9.0000 inches
- Weight: 252.0000 POUNDS
