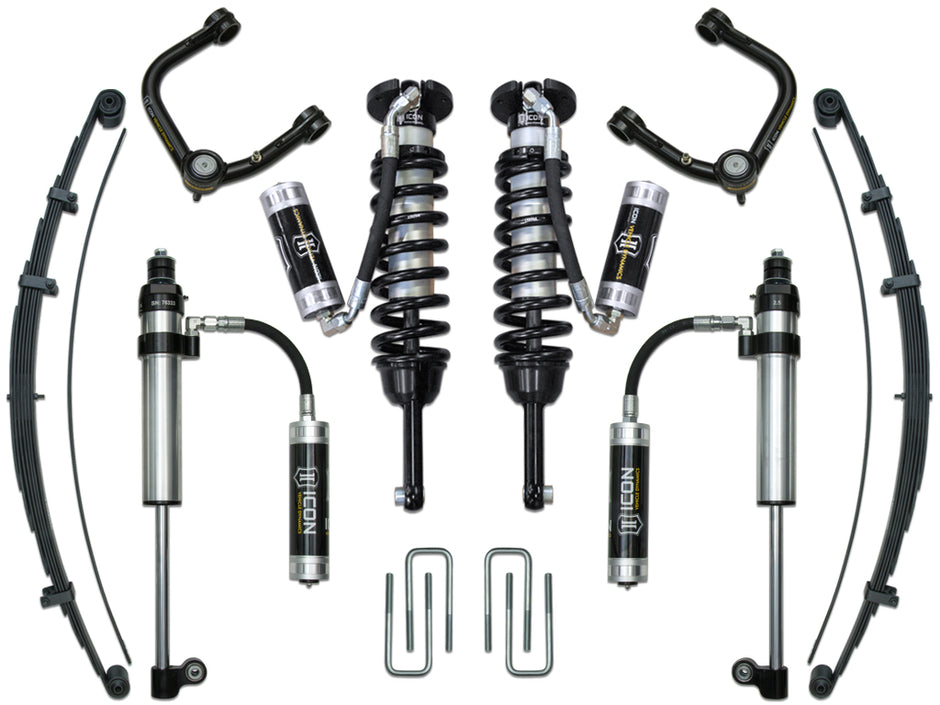

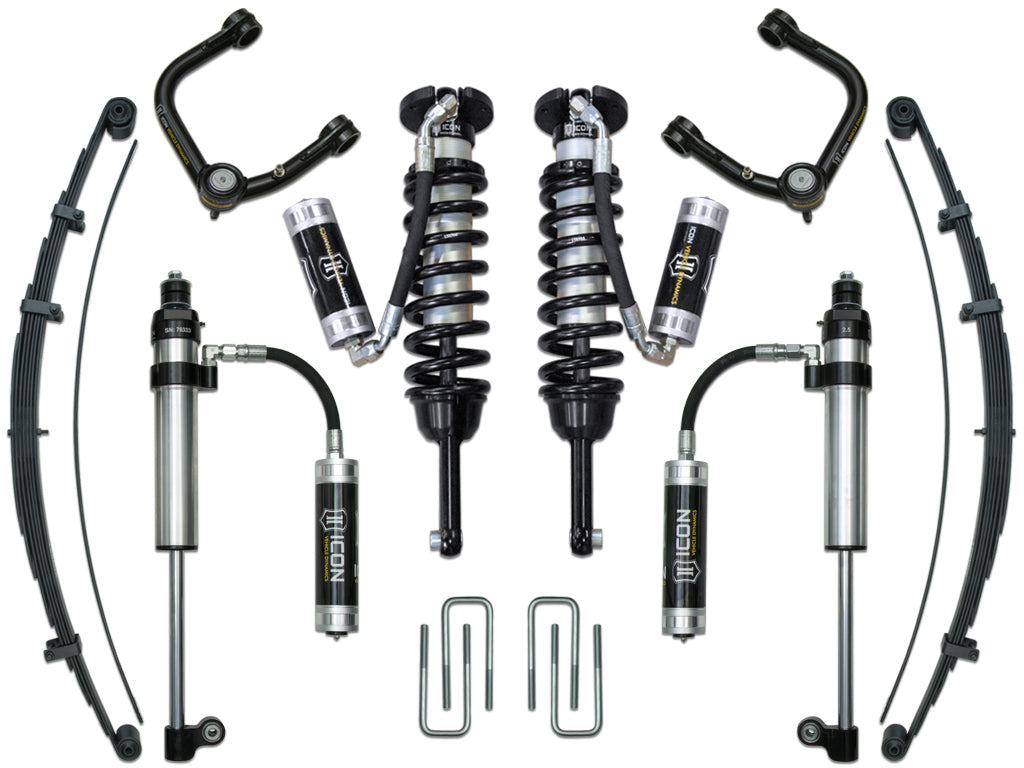

ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift Stage 8 Suspension System Tubular UCA

This system features tubular front upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Increased wheel travel and ride quality over stock
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• 2.5 Aluminum Series remote reservoir RXT rear shocks feature corrosion resistant anodized aluminum shock bodies with 7/8" shafts

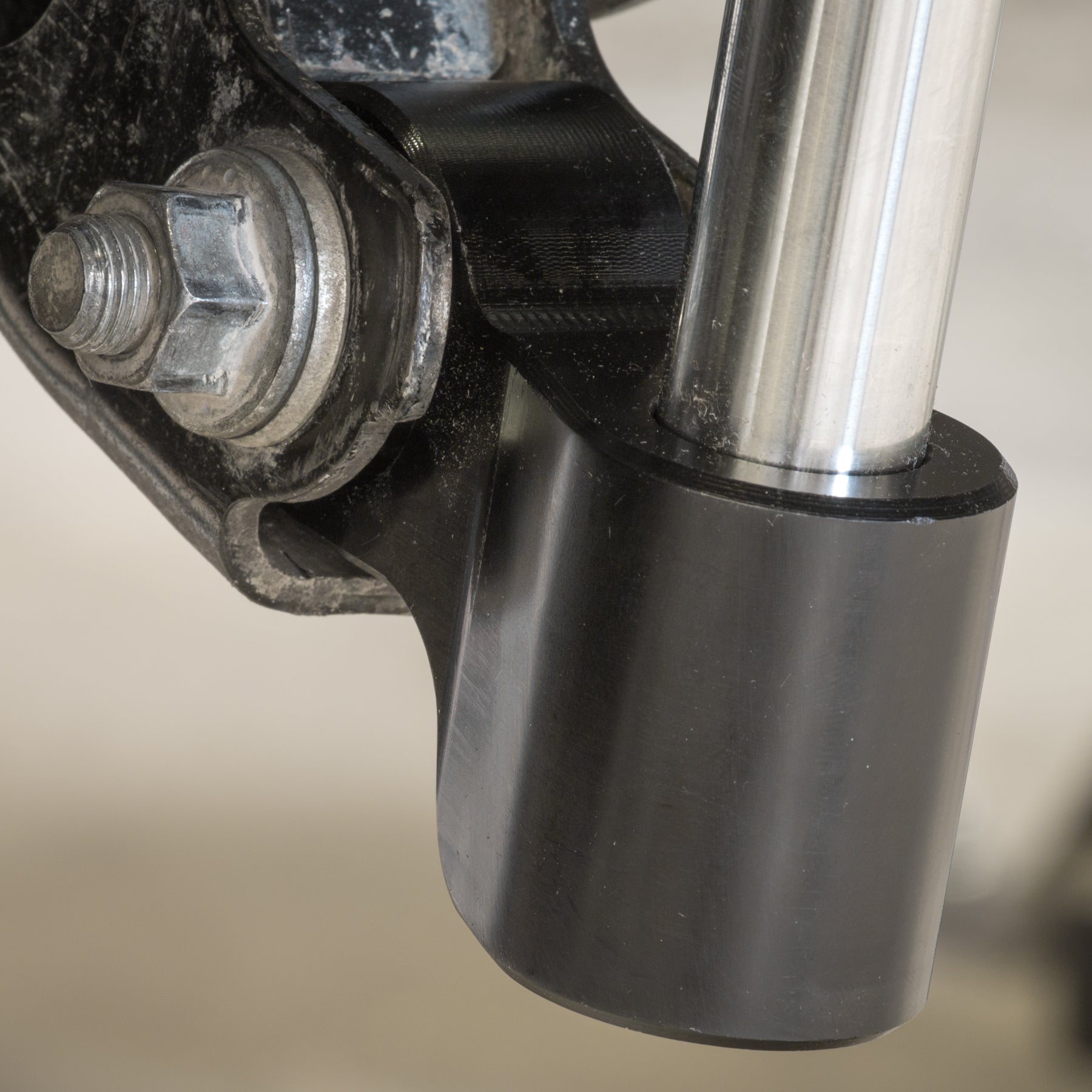

• ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
• Multi-Rate Leaf Springs with 3 user-adjustable spring rates for unique vehicle configurations
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Tubular UCAs for added strength, durability, and alignment correction for better drivability

Vehicle Specific

• ICON 05-15 TACOMA 0-3.5"/16-23 0-2.75" STAGE 8 SUSPENSION SYSTEM W TUBULAR UCA

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103416502
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 6111: 8
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Adjustable Damping: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Front Spring Rate 1: 650
• Maximum Lift Front: 3.5
• Maximum Lift Rear: 2.625
• Minimum Lift Front: 0
• Minimum Lift Rear: 1.875
• OEM Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Variable
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 55.0000 x 40.0000 x 9.0000 inches
• Weight: 266.0000 POUNDS
