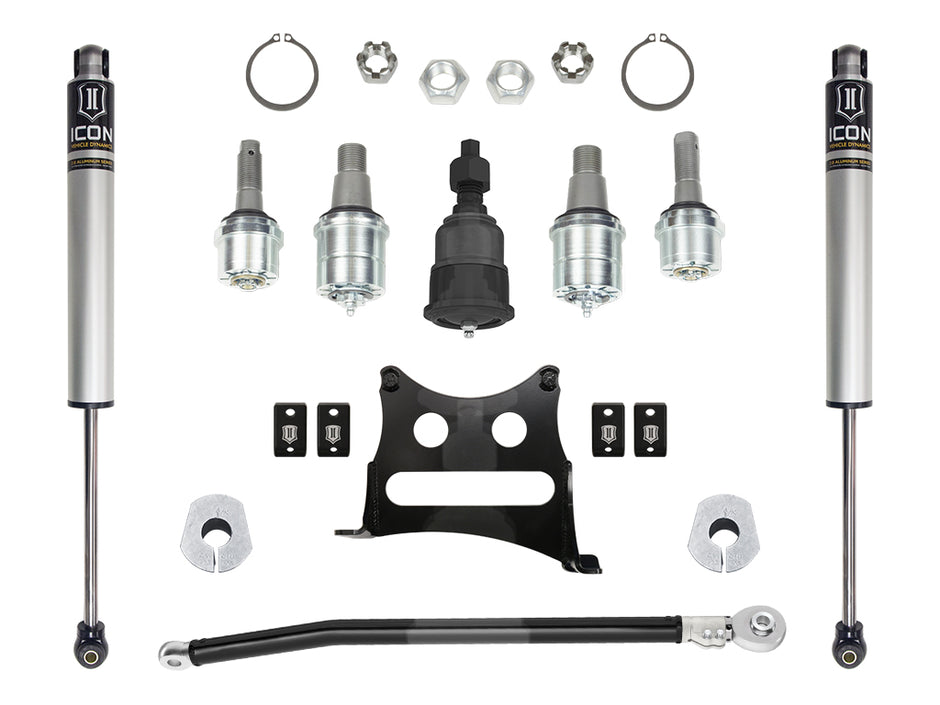

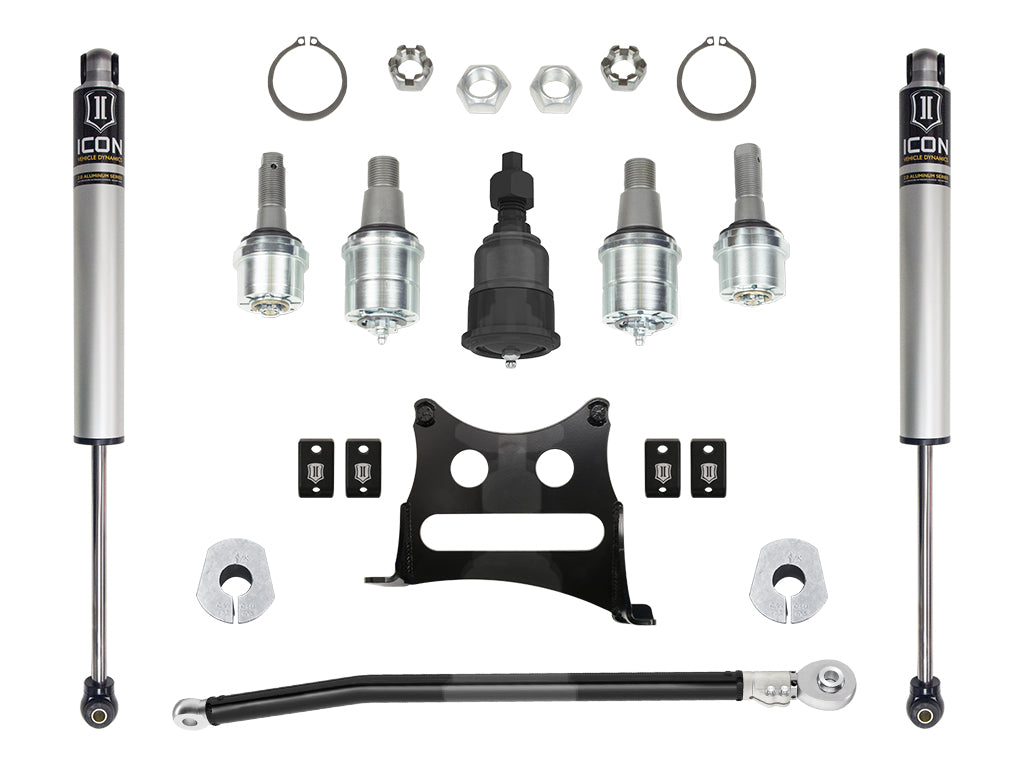

Continue shoppingICON 2005-2016 Ford F-250/F-350 Super Duty 4WD Ultimate Front End Kit Stage 5
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$2,235.36
-0%
Regular price
$2,235.36
Regular price
$2,235.36
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
Being able to set the Caster and Camber Alignment into proper specifications is critical for balance and stability of your Ford Super Duty. So, to round out the Stage 5 kit is the ICON Vehicle Dynamics' 2005-2024 Ford F-250/F-350 Super Duty Alignment Cam Kit to provide additional caster to align your Super Duty back into factory spec when lifted with our suspension systems. Ford Super Duty Alignment Cams ensure that your vehicles suspension and steering are working in precise coordination, improving overall drivability.

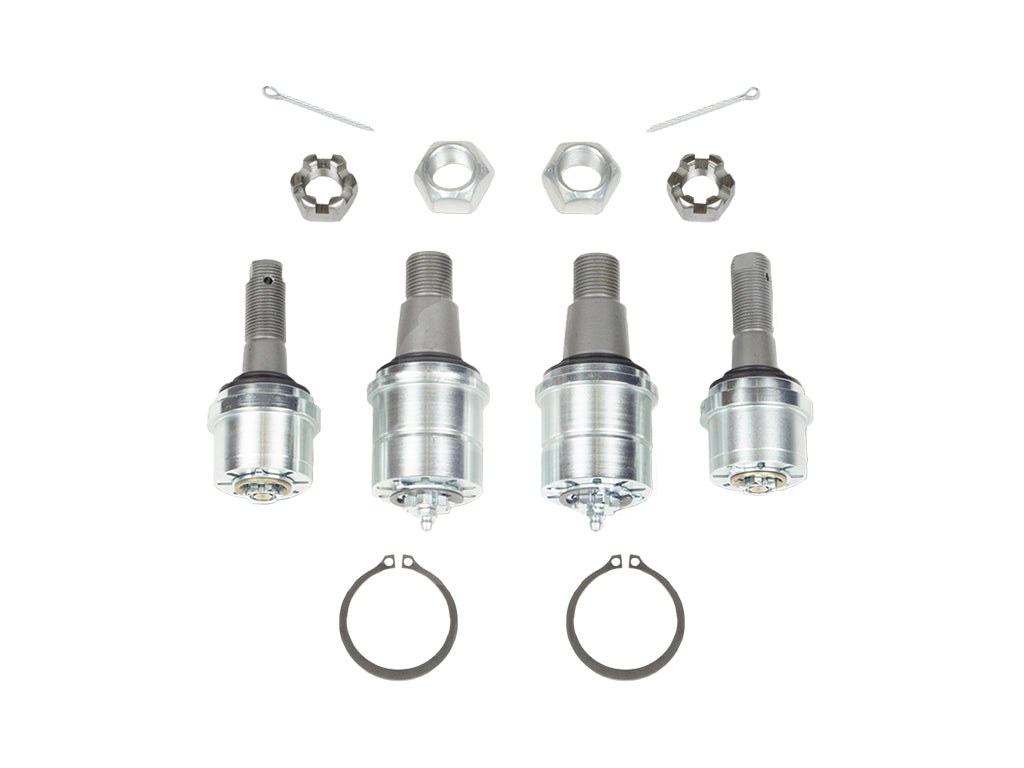

- Full set of genuine Dynatrac front upper and lower ball joints

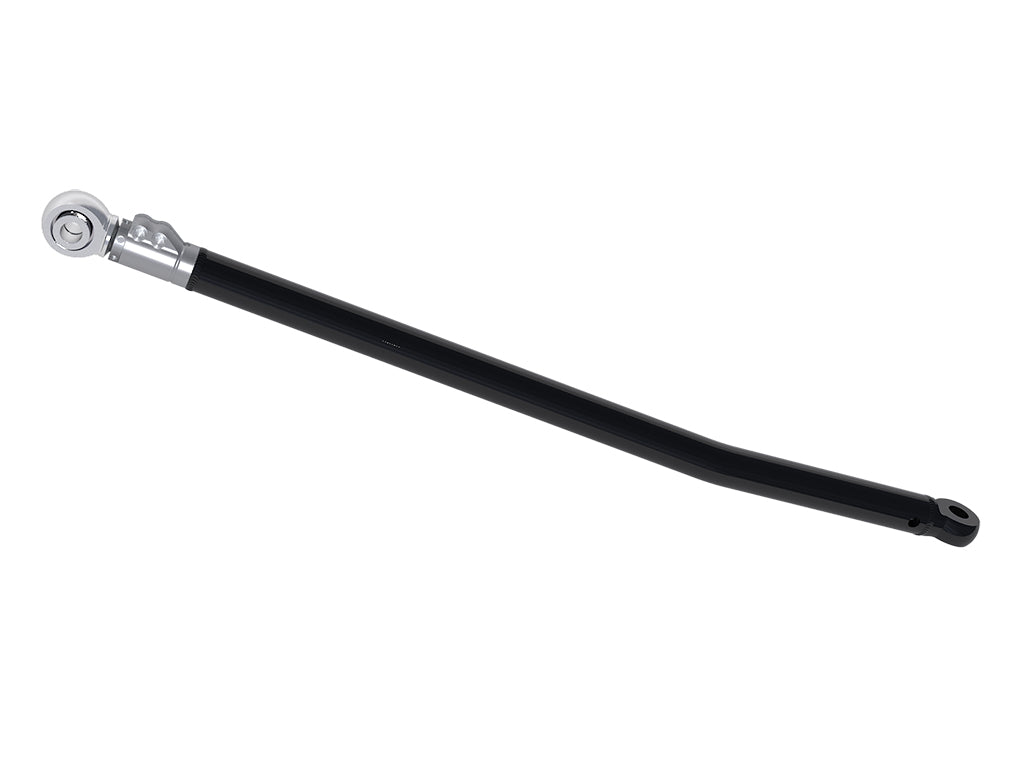

- On-vehicle adjustable track bar for precise track alignment using ICON’s double adjuster
- CNC machined and bent 1.625" X .250" wall 1026 DOM tubing
- Dual opposing stabilizer design eliminates the push/pull sensation associated with traditional stabilizers
- Dual 2.0 Aluminum Series shocks offer increased steering damping over stock unit
- Provides symmetrical steering feel throughout input range
- CNC laser cut steel stabilizer bracket
- 6061 billet aluminum tie rod clamps, anodized for corrosion resistance
- Track bar ball joint is a direct press in replacement for OE axle or ICON track bars
- Greaseable design ensures long service life
- Sealed dust boot prevents contamination
- Improves steering feel and vehicle control
- Improved strength and rigidity over OEM track bar ball joint
- Alignment cams add 2.3° of caster and .5° of camber over stock
- Ensures proper front-end alignment when installed in conjunction with compatible suspension lifts
- Zinc plated cams for corrosion resistance
- Includes new ball joint cotter pins
- CNC machined, high-strength components
- Heat-treated, high-strength billet bodies with chromoly stems
- Heat-treated, precision-ground stainless-steel ball
- Sealed, greaseable design and PTFE coated wear points ensure long service life
- On-vehicle rebuildable design
- Adjustable track bar helps to free up bind during front suspension travel and articulation
- Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
- ICON 05-16 FORD F250/F350 STAGE 5 ULTIMATE FRONT END KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103429809
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- Adjustable: Yes
- Adjustable Damping: No
- California Prop 65 Warning: Yes
- Cotter Pin Hole: Yes
- Dust Boot Included: Yes
- Grade Type: Heavy Duty
- Grease Fitting Included: Yes
- Greaseable: Yes
- Mount Type: Press In
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 14.0000 x 12.0000 x 6.0000 inches
- Weight: 53.0000 POUNDS
