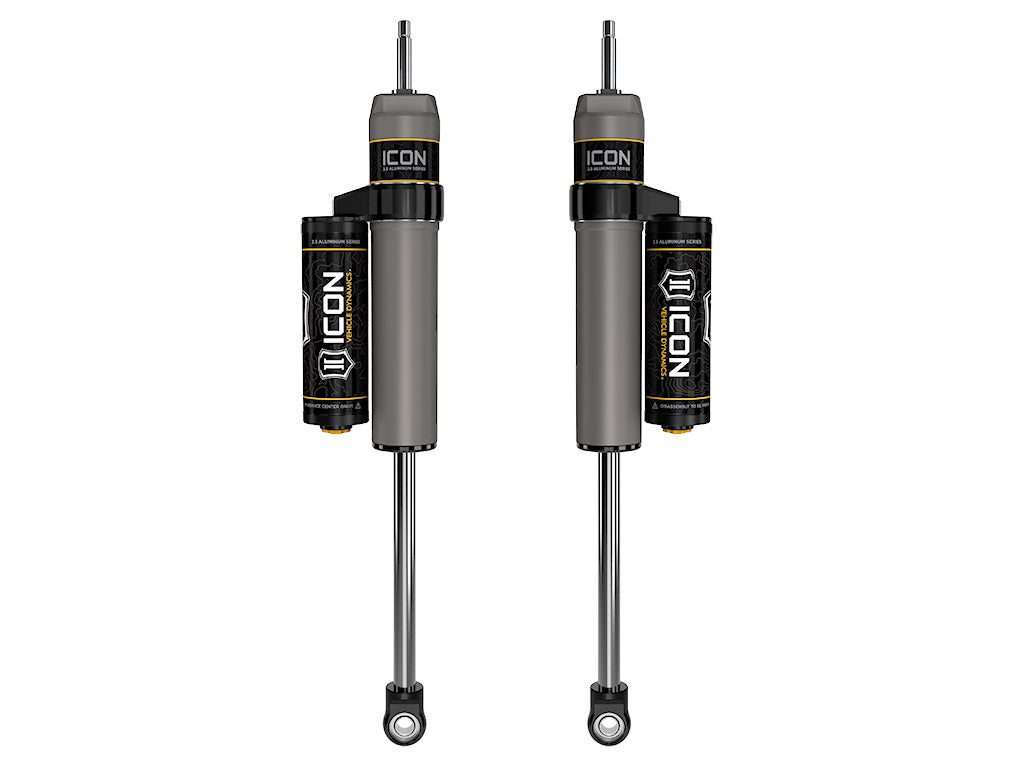

Continue shoppingICON 2005-2022 Ford F-250/F-350 Super Duty 4WD 4.5” Lift Front 2.5 VS Piggyback Reservoir Shocks Pair
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$1,204.40
-0%
Regular price
$1,204.40
Regular price
$1,204.40
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 100% Revalveable
- Nitrogen charged monotube design with piggyback reservoir
- 100% Rebuildable
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Double-sealed Schrader caps reduce risk of damage
- 6061 aircraft grade aluminum CNC machined components
- ICON 05-22 FSD 4WD 4.5" FRONT 2.5 VS PB PAIR
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103405889
- 30: Yes
- 40: NO
- 48: EYELET
- 49: Stem
- 50: NO
- 51: Yes
- 359: 2.5
- 408: Center of Eylet
- 409: Shoulder of Stem
- 905: 2.25
- 3390: Performance
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- California Prop 65 Warning: Yes
- Cylinder Color: Silver
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shaft Material: Chrome
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 39.0000 x 10.0000 x 9.0000 inches
- Weight: 23.0000 POUNDS
