The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Improves front end articulation and overall drivability
- Allow on-vehicle caster adjustment via ICON double adjusters in lower links
- Upper links are constructed from CNC machined 2” x .188” wall DOM steel tubing
- PTFE lined FK spherical bearings eliminate deflection
- Corrosion resistant semi-gloss black powder coat finish
- Fabricated components covered under ICON's Limited Lifetime Warranty
Vehicle Specific

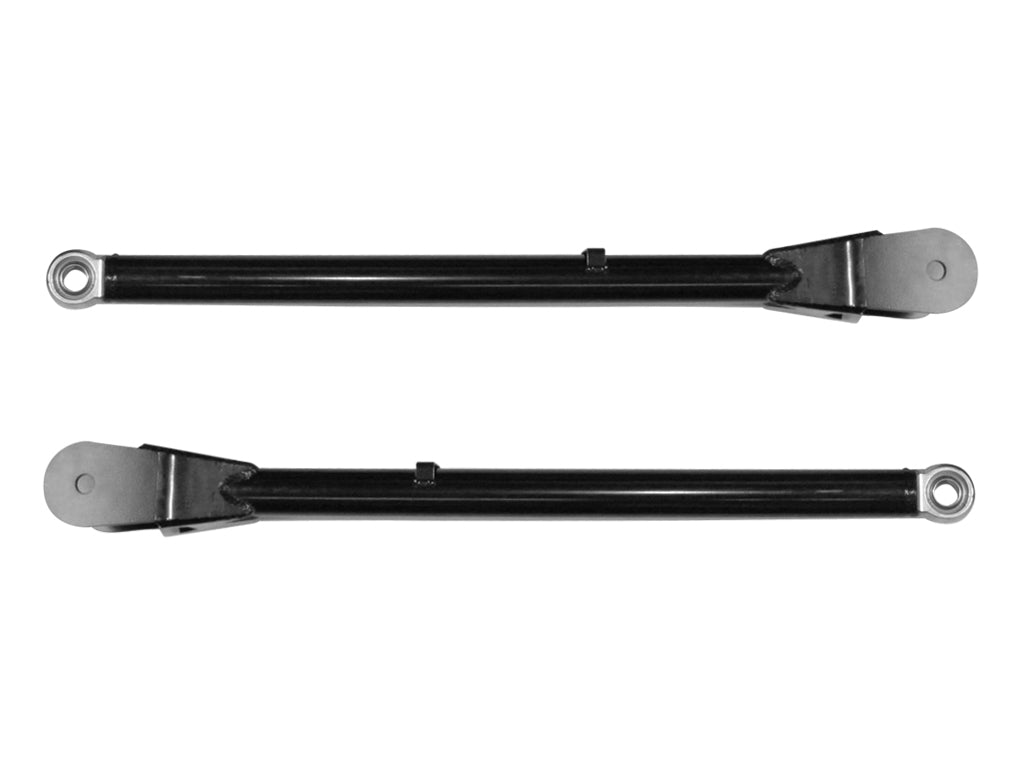

- ICON 05-22 FSD FRONT UPPER LINKS
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103408798
-
40: No
-
73: Rod End Bearing
-
3390: Performance
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
California Prop 65 Warning: Yes
-
Service Parts: 614512 - 64031/214030 BEARING AND RET RING KIT
-
Tubing Color: Black
-
Tubing Material: Steel
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 47.0000 x 8.0000 x 4.0000 inches
-
Weight: 37.0000 POUNDS
