Continue shoppingICON 2005-2023 Toyota Tacoma 2.5 VS Remote Reservoir Coilover Kit
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$1,975.95
-0%
Regular price
$1,975.95
Regular price
$1,975.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

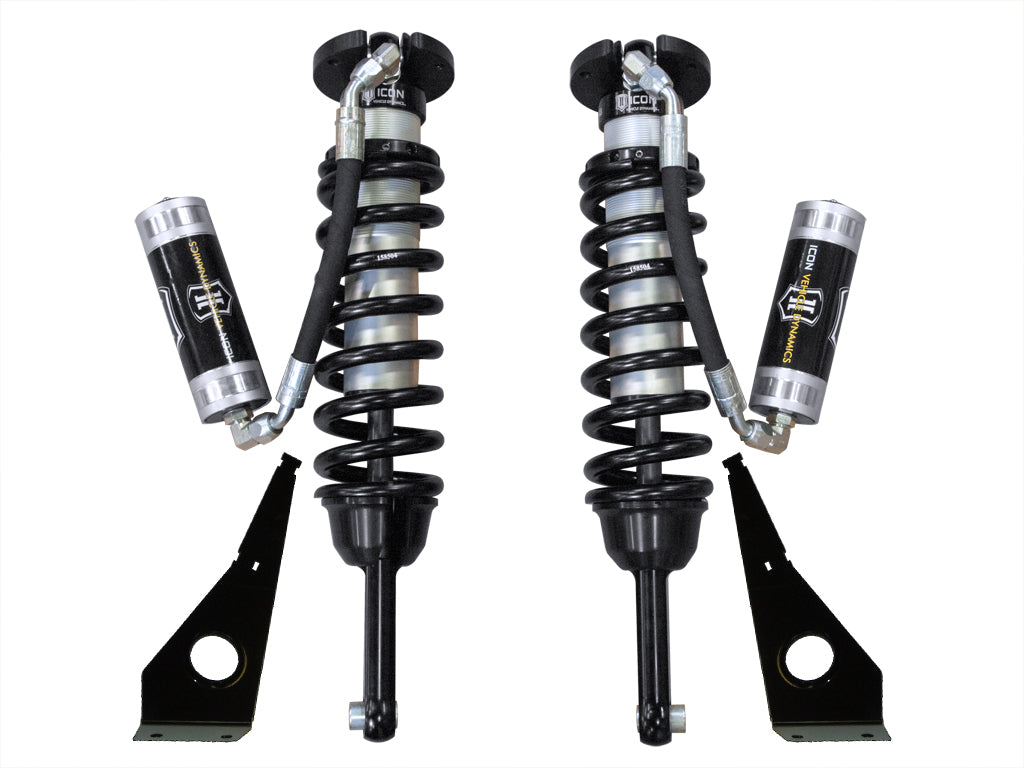

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
- Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
- External Reservoirs Ensures Maximum Cooling
- ICON engineered coil springs
- Vehicle specific tuned for superior shock damping and control
- Kit Includes Sway bar relocation brackets
- Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
- CAD-plated threaded body
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
- ICON 05-23 TACOMA 2.5 VS RR COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103404219
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: No
- 10107: 650
- 10527: No
- 10528: Yes
- 10530: Passive
- 10535: 3.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Damping: NO
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 17.42
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Type: Oil
- Extended Length: 22.17
- Gas Charged: yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3.5
- Minimum Lift: 0
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: Recommended Aftermarket Tires: 33" x 11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate Type: Linear
- Travel Length: 4.76
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 8.0000 inches
- Weight: 53.0000 POUNDS
