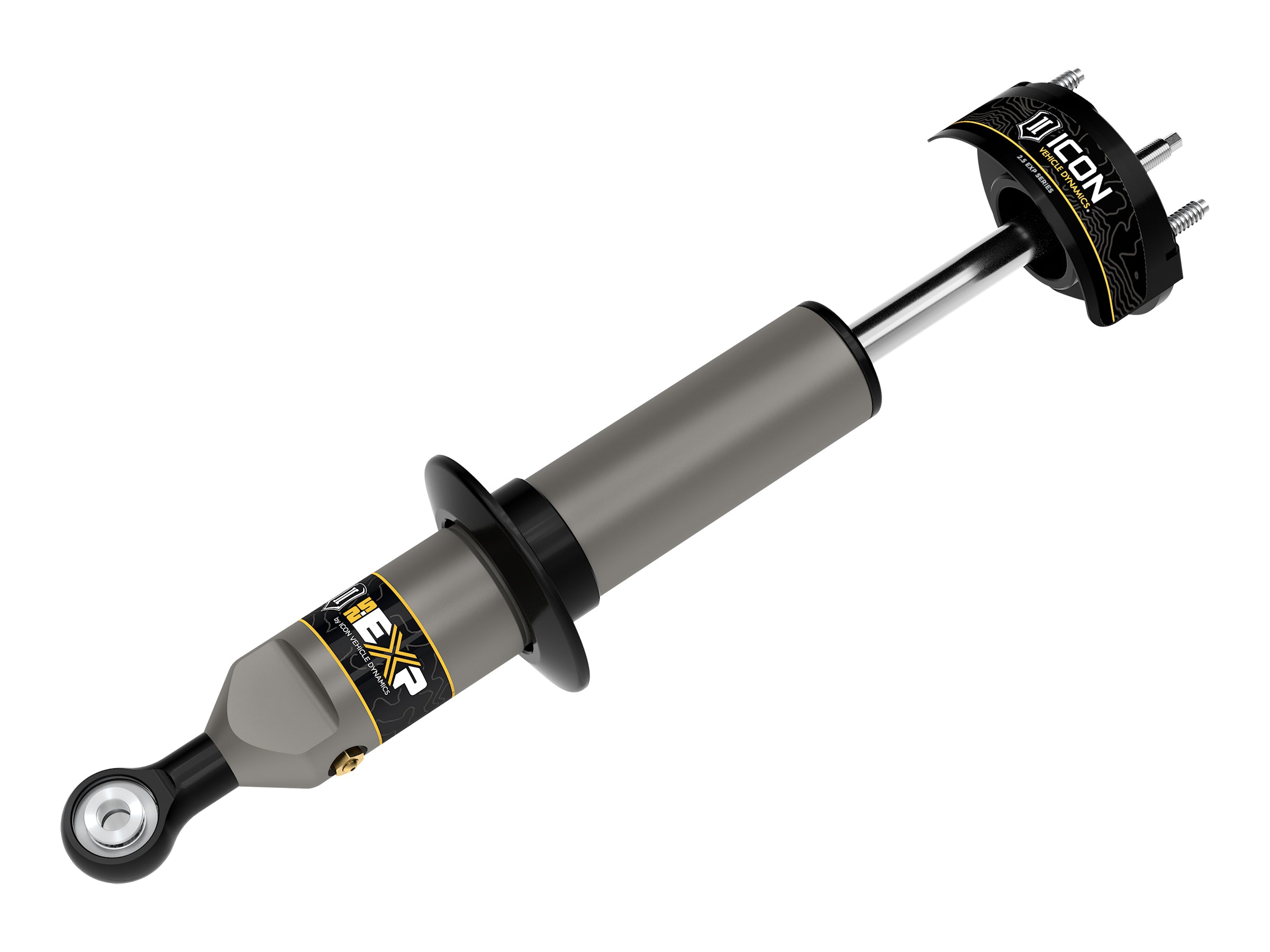

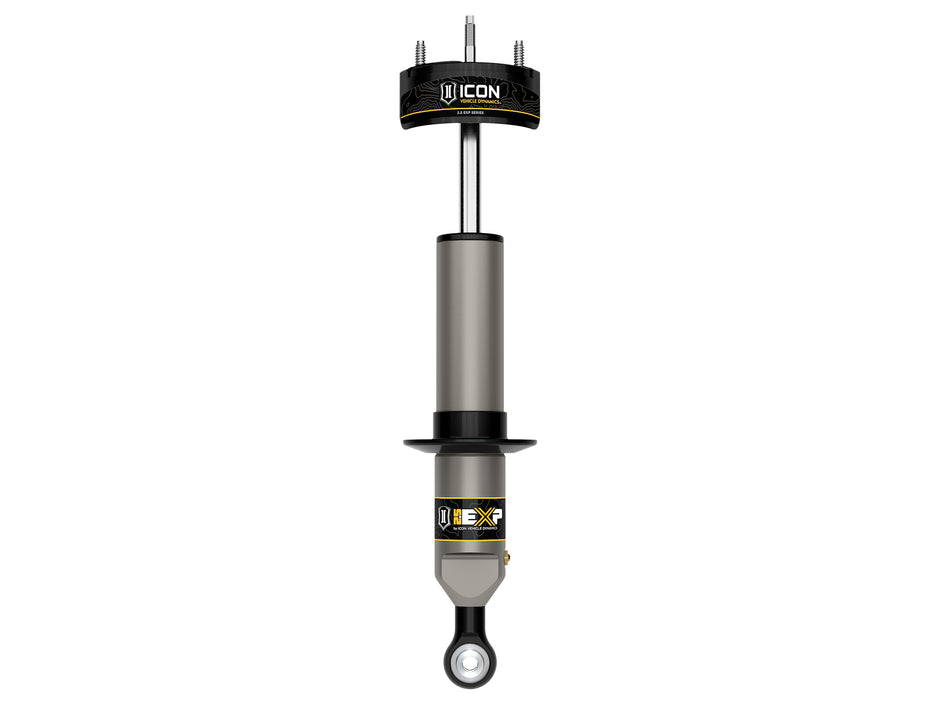

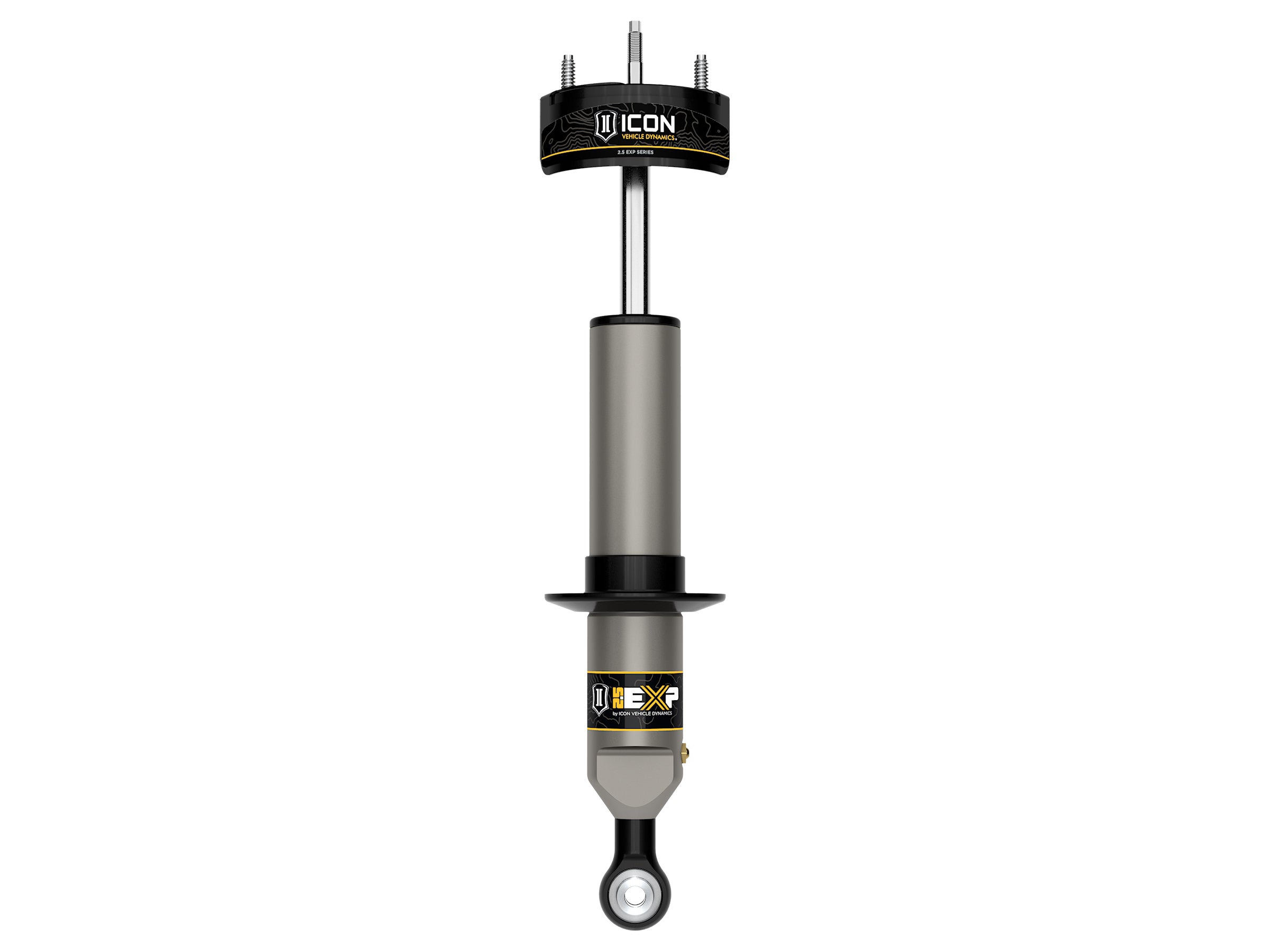

ICON 2005-2023 Toyota Tacoma Front EXP Coilover

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tacoma in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

• Vehicle specific design for 2005-2023 Toyota Tacoma
• Fully rebuildable and re-tunable
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection

Vehicle Specific

• ICON 05-23 TACOMA FRONT 2.5 EXP COILOVER

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103421063
• 37: 21.21
• 48: Eyelet
• 84: No
• 107: 15.67
• 108: 5.54
• 2329: Aluminum
• 3065: 2.5
• 3085: Single Tube
• 3390: Performance
• 5126: Gray
• 7233: No
• 8703: No
• 9621: No
• 9783: No
• 10526: Digressive
• 10527: No
• 10528: Yes
• 10529: No
• 10530: Passive
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 611030 - 05-23 TACO/07-09 FJ/03-09 T4R SWAYBAR RELOCATION KIT
• Adjustable Damping: NO
• Assembled: No
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: No
• Cylinder Finish: Hard Anodized
• Damping Type: Oil
• Gas Charged: Yes
• Material: Aluminum
• Maximum Lift: 2
• Minimum Lift: 0
• Remote Reservoir: NO
• Reservoir Style: Internal
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Center of Eyelet
• Shock Absorber Rod End Measuring Point: Shoulder of Stem
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 32.0000 x 6.0000 x 5.0000 inches
• Weight: 10.0000 POUNDS
