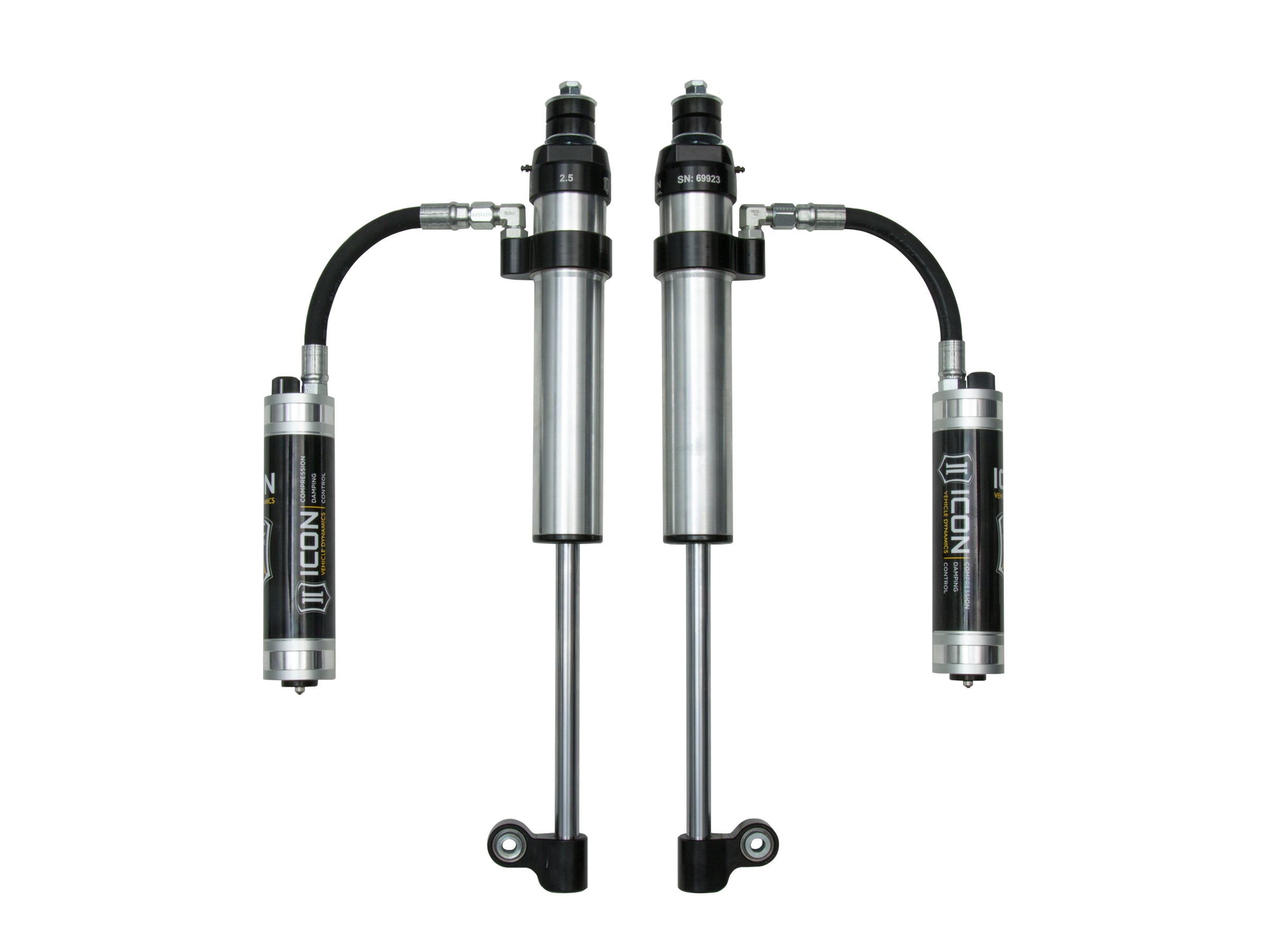

ICON 2005-2023 Toyota Tacoma Rear 2.5 RXT Remote Reservoir W/ CDCV Shocks Pair

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable
• 100% Revalveable
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Nitrogen charged monotube design with remote reservoir
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft

Vehicle Specific

• ICON 05-23 TACOMA RXT REAR 2.5 RR CDCV PAIR

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103403595
• 30: Yes
• 48: EYELET
• 49: Stem
• 50: NO
• 51: Yes
• 359: 2.5
• 408: Center of Eylet
• 409: Shoulder of Stem
• 905: 2.25
• 3390: Performance
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable Damping: Yes
• California Prop 65 Warning: Yes
• Cylinder Color: Gray
• Cylinder Diameter: 2.5
• Cylinder Material: Aluminum
• Damping Adjustment Type: Manual
• Damping Type: Oil
• External Reservoir: Yes
• Service Parts: 191015 - 10" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Shaft Material: Chrome

Extended Information:

• Country of Origin: United States
• Emissions : Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 39.0000 x 15.0000 x 9.0000 inches
• Weight: 31.0000 POUNDS
