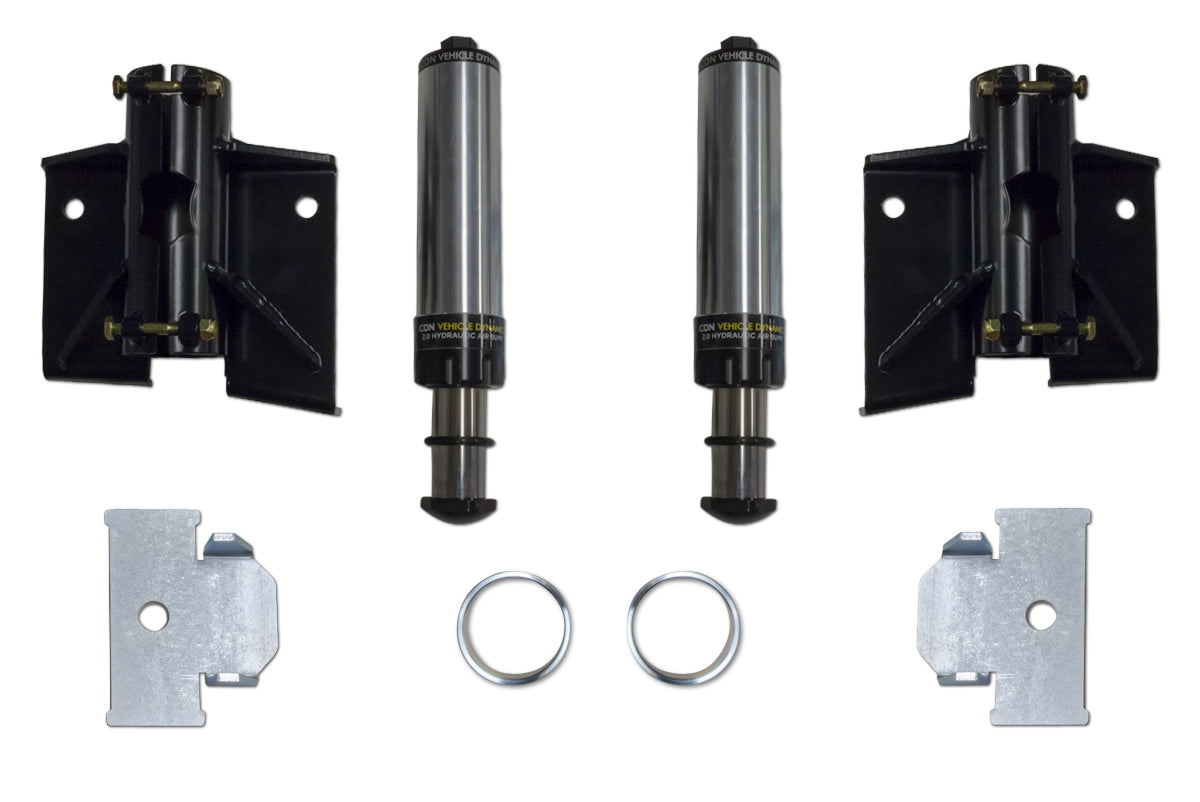

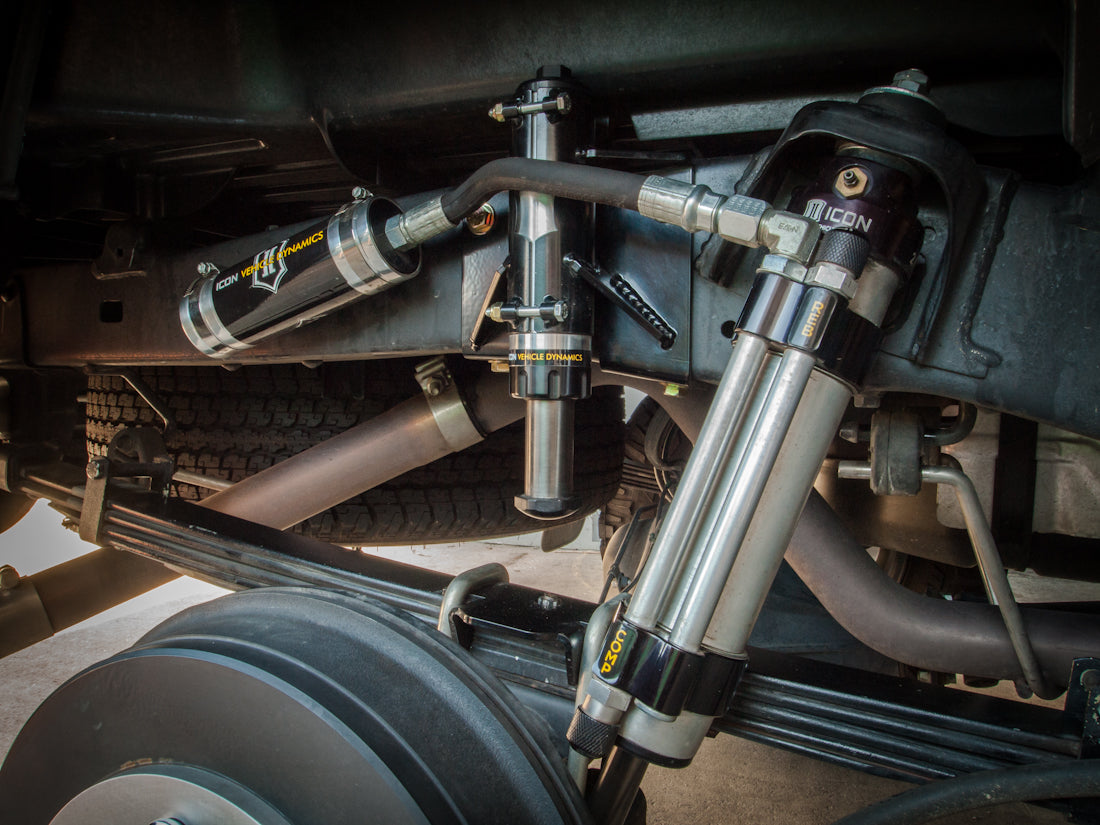

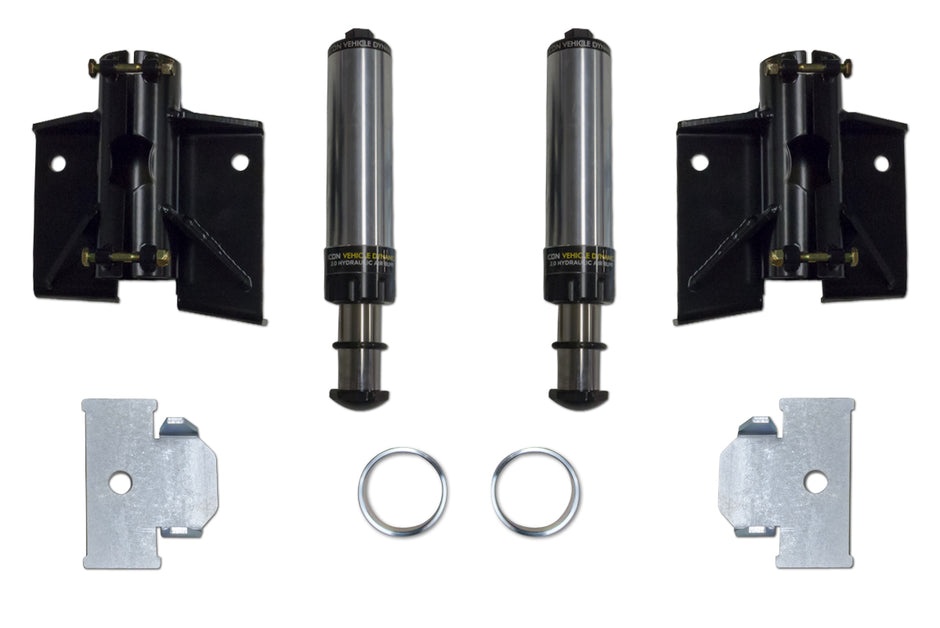

ICON 2005-2023 Toyota Tacoma Rear Hydraulic Bump Stop Kit

As part of the kit, ICON includes an industry first selectable install height for the hydraulic air bumpstop so up travel is not limited with use of an aftermarket thicker leaf pack. This allows you to upgrade your leaf springs down the road, and retain maximum up travel without having to purchase a new bump stop bracket kit.

• Bolt-on design using existing holes in frame for clean install with no cutting or welding
• User serviceable
• Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
• Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
• Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
• Can be returned to stock
• Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
• Anodized billet top cap, o-ring sealed back up cap, seal head and striker
• CAD Plated body for corrosion free service
• Urethane rod seal and wiper for long service life

Vehicle Specific

• ICON 05-23 TACOMA REAR HYD BUMP STOP KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103402956
• 3390: Performance
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Attachment Type: Bolt On
• Bumper Material: Hydraulic
• Bumper Type: Hydraulic
• California Prop 65 Warning: Yes
• Color: Black
• Diameter: 2
• Length: 2.5
• Mounting Hardware Included: yes
• Service Parts: 202004 - 2.0 AIR BUMP REBUILD KIT

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 16.0000 x 12.0000 x 8.0000 inches
• Weight: 22.0000 POUNDS
