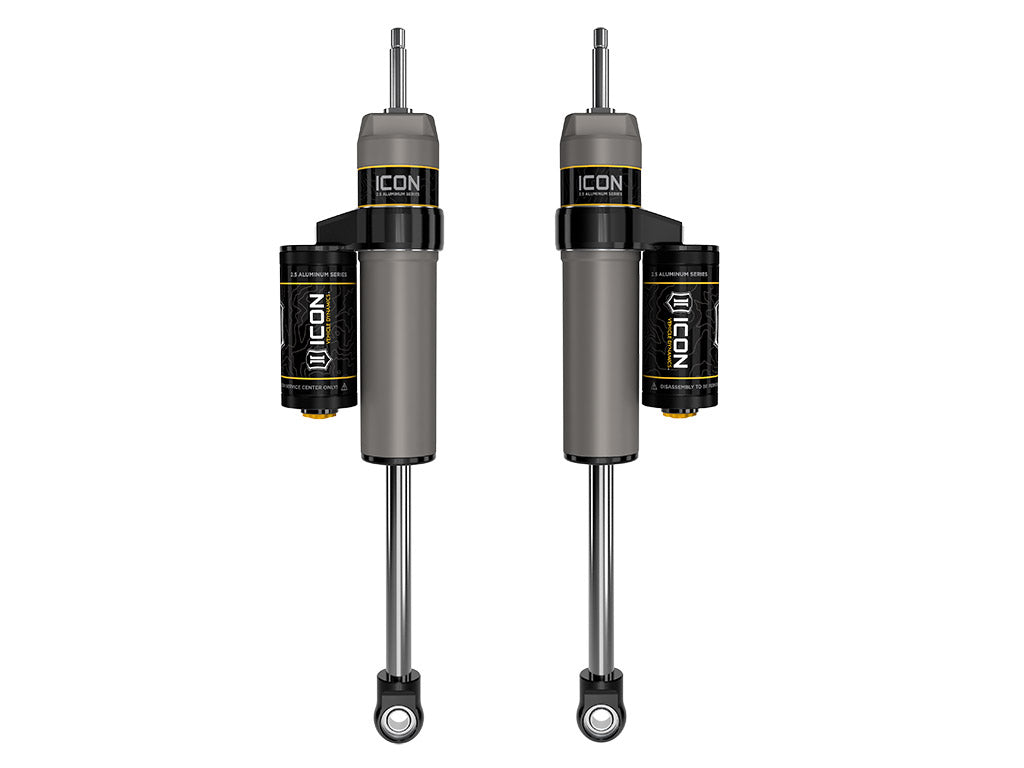

ICON 2005-2025 Ford Super Duty 4WD 0-2.5” Lift Front. V.S. 2.5 Aluminum Series Shock Absorbers Piggyback Reservoir Pair

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON's unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV).

• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• 100% Rebuildable
• 100% Revalveable
• Nitrogen charged monotube design with piggyback reservoir
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• 6061 aircraft grade aluminum CNC machined components
• One piece, hard anodaized, digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 7/8" diameter induction hardened, chrome plated shock shaft
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware

Vehicle Specific

• ICON 05-25 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103405865
• 30: Yes
• 40: NO
• 48: Eyelet
• 49: Stem
• 50: NO
• 51: Yes
• 359: 2.5
• 408: Center of Eylet
• 409: Shoulder of Stem
• 905: 2.25
• 3390: Performance
• 9783: No
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Cylinder Color: Gray
• Cylinder Diameter: 2.5
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: Piggyback Reservoir
• Reservoir Type: Piggyback
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Shaft Diameter: 0.875
• Shaft Material: Chrome
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 39.0000 x 10.0000 x 9.0000 inches
• Weight: 23.0000 POUNDS
