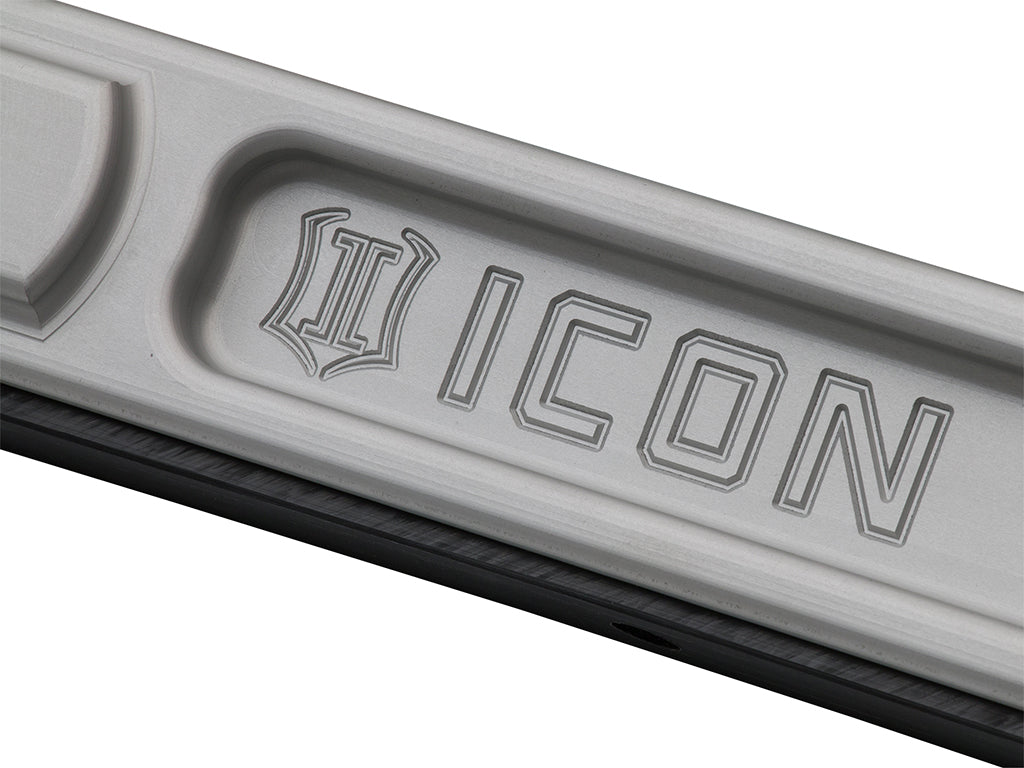

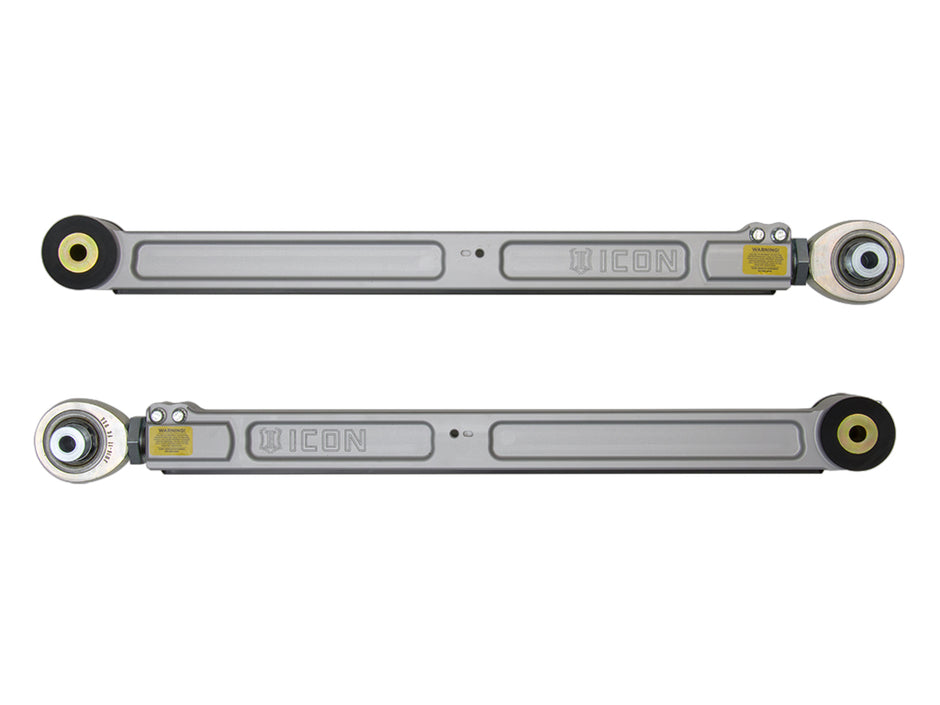

ICON's Billet Aluminum Rear Trailing Arms for the Toyota FJ Cruiser, 4Runner, 200 Series Land Cruiser, and Lexus GX are a great replacement for weak factory lower links. These trailing arms are light, strong, and have been engineered to increase the off-road ride quality the vehicle. Constructed out of 6061 CNC-machined billet aluminum, these arms also stand out when bolted up on the vehicle. They include 16T Rod Ends that have a load rating of over 40,000 lbs of pressure as well as a dual rate bushing on the axle side for excellent articulation characteristics with minimal deflection. A replaceable nylon rock slider is incorporated into the design of the arm to prevent any hang-ups on the trail.
- On vehicle length adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
- Vehicle specific, high clearance design for reduced link contact with obstacles
- Replaceable Nylon ROCK Slider to protect the link from damage
- CNC machined 6061 aluminum construction
- Large FK Bearing JMX16T PTFE-lined rod ends
- Greaseable, multi-piece polyurethane bushings for maximum angularity and noise isolation
- Covered by ICON’s Limited Lifetime Warranty
Vehicle Specific
- ICON 07-14 FJ/03-24 4RNR/08-21 LC 200/03-23 GX BILLET LOWER TRAILING ARM KIT
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103402826
-
30: yes
-
40: yes
-
73: Polyurethane
-
1260: Yes
-
2330: No
-
2339: yes
-
2354: Performance
-
2371: yes
-
2383: Threaded
-
2384: Yes
-
2389: Aluminum
-
3390: Performance
-
4888: Silver
-
9617: Air
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
-
Ball Joint Mounting Type: Thread in
-
Bushing Color: Black
-
California Prop 65 Warning: Yes
-
Color: Gray
-
Construction: Billet
-
Control Arm Construction: Billet
-
End 1 Type: Rod End Bearing
-
End 2 Type: Bushing
-
Finish: Anodized
-
Material: Aluminium
-
Service Parts: 614509 - 54000 BUSHING AND SLEEVE KIT
Extended Information:
-
Country of Origin: United States
-
Emissions : 4
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 30.0000 x 8.0000 x 4.0000 inches
-
Weight: 24.0000 POUNDS
