Continue shoppingICON 2007-2018 Jeep Wrangler JK Ultimate Front End Kit Stage 3
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$1,390.45
-0%
Regular price
$1,390.45
Regular price
$1,390.45
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
Being able to set the Caster Alignment into proper specifications is critical for balance and stability of your Jeep Wrangler JK. Rounding out Stage 3 is an ICON Vehicle Dynamics JK Alignment Cam Kit to provide additional adjustment over stock to align your Jeep JK back into factory spec when lifted with our 3" or 4.5" suspension systems. Jeep JK Alignment Cams ensure that your vehicles suspension and steering are working in precise coordination, improving overall drivability.

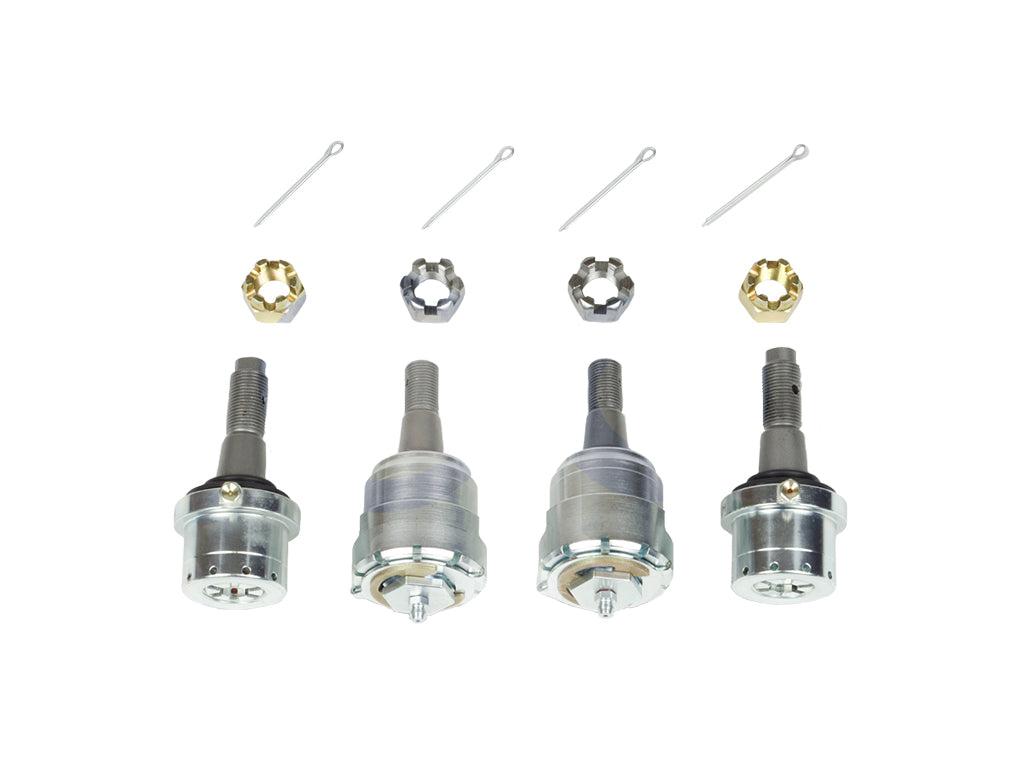

- Full set of genuine Dynatrac front upper and lower ball joints
- Provides symmetrical steering feel throughout input range
- Adjustable “Drive Zone” with 9 clicks of steering damping adjustment

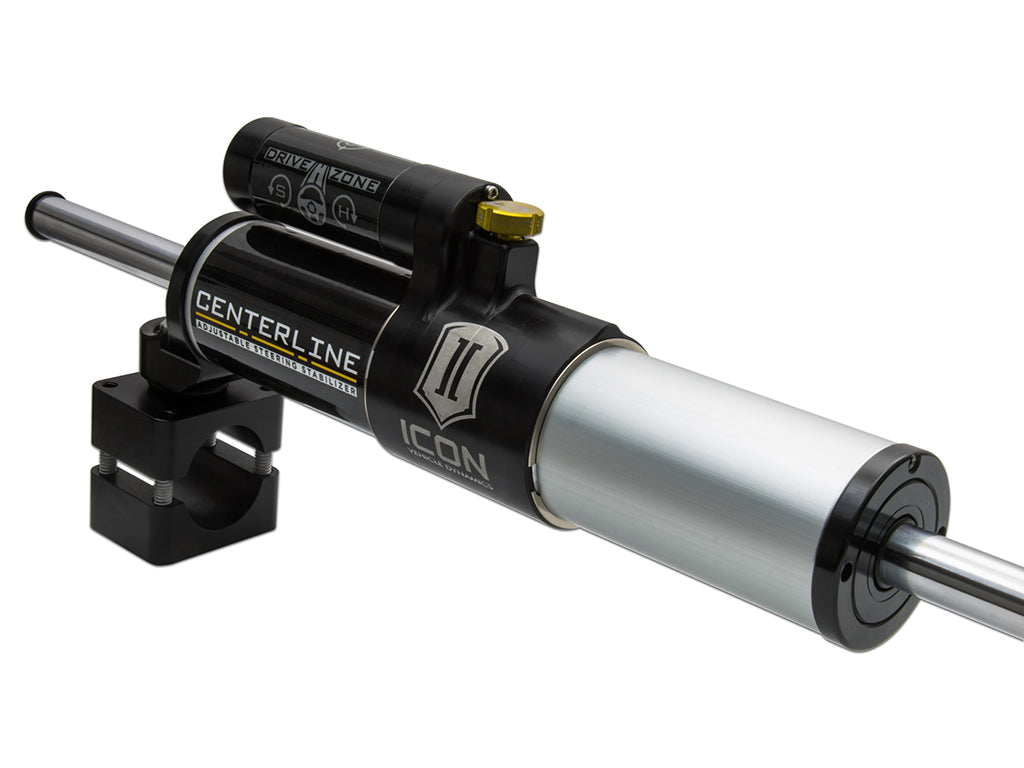

- Centerline steering stabilizer is a fully serviceable ICON 2.0 Aluminum Series piggyback reservoir shock
- 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
- 5/8” chrome plated hardened steel shock shafts
- 5WT shock oil for consistent suspension damping along a wide temperature range
- FK Rod End bearings in steering stabilizer for precise function
- Alignment cams add caster adjustment to ensure accurate front end alignment
- +/- 1.5 Degree caster angle adjustability
- Cam bolts are made of heavy-duty alloy steel.
- Improves steering feel and vehicle control
- CNC machined, high-strength components
- Heat-treated, high-strength billet bodies with chromoly stems
- Heat-treated, precision-ground stainless-steel ball
- Sealed, greaseable design and PTFE coated wear points ensure long service life
- Snap ring prevents unwanted movement in axle housing
- On-vehicle rebuildable ball joint design
- Increased steering damping over stock unit

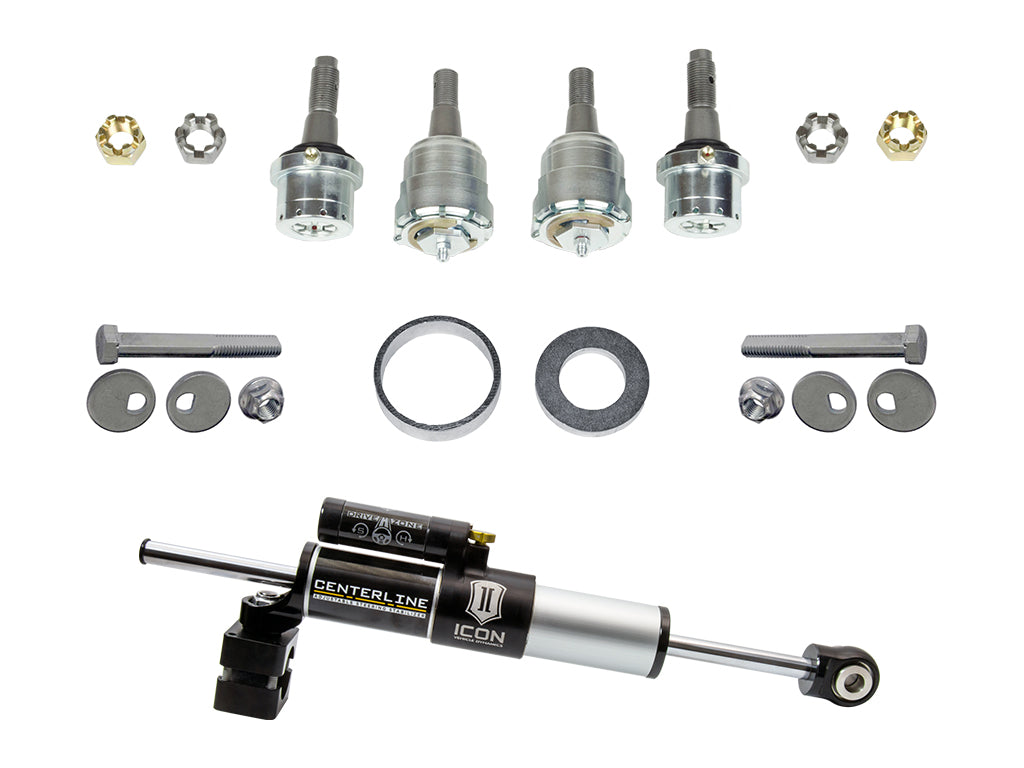

- ICON 07-18 JEEP JK STAGE 3 ULTIMATE FRONT END KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103429670
- Add-On Part: 22044 - 18-23 JL/20-23 JT/07-18 JK 1" FRONT BUMP STOP SPACER KIT
- Adjustable: Yes
- Adjustable Ball Joints: No
- Adjustable Damping: Yes
- California Prop 65 Warning: Yes
- Cotter Pin Hole: Yes
- Dust Boot Included: Yes
- Grade Type: Heavy Duty
- Grease Fitting Included: Yes
- Greaseable: Yes
- Mount Type: Press In
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 7.0000 x 4.0000 inches
- Weight: 16.0000 POUNDS
PDF:
