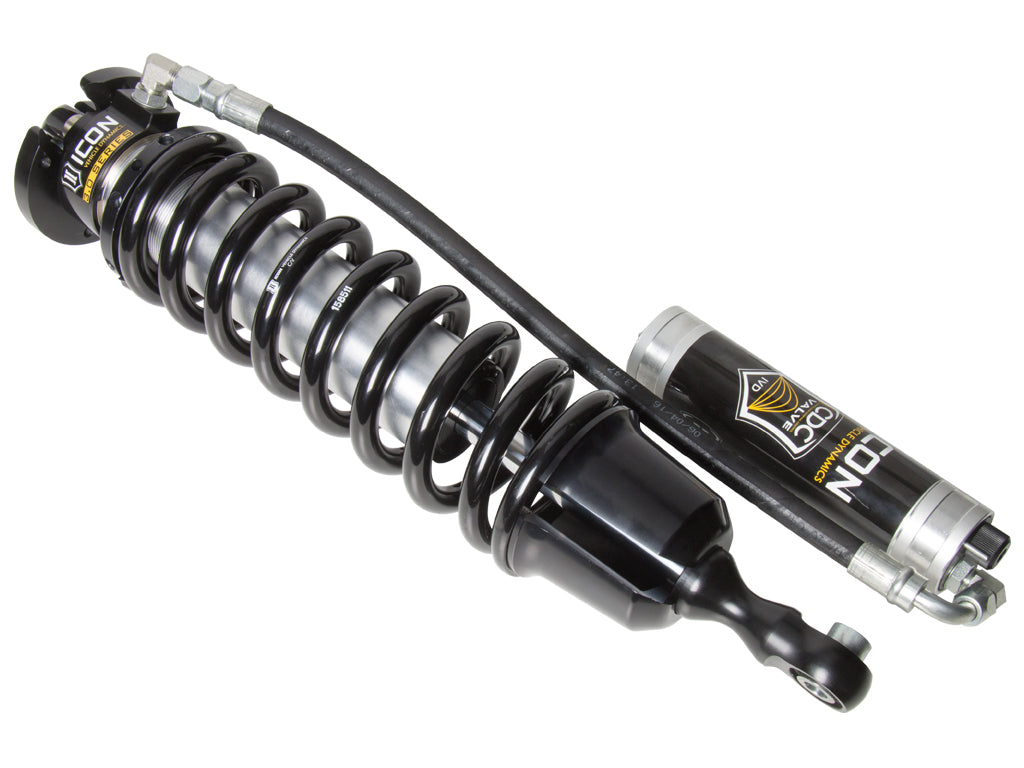

Continue shoppingICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia V.S. 3.0 Series Coilover Kit Remote Reservoir W/ CDCV
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$3,932.32
-0%
Regular price
$3,932.32
Regular price
$3,932.32
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 1.63-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as ICON engineered coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.
- Significant increase in damping ability for excellent performance in extreme off-road conditions
- Multi stage CAD plated shock body with hard anodized piston and top cap
- Direct bolt-in to OEM shock location makes for an easy install
- Fully serviceable
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Adjustable coilovers provide 1.63-3.5” of front lift height over stock
- Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
- ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
- High quality ICON-engineered coil springs offer increased travel and performance
- PTFE lined COM12 spherical bearings ensure maximum strength and durability
- Heavy duty 1” CNC machined shock shafts
- ICON 07-21 TUNDRA/08-22 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103404554
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: No
- 10107: 600
- 10527: Yes
- 10528: Yes
- 10530: Passive
- 10531: Ceramic Coated
- 10535: 3.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
- Adjustable Damping: Yes
- Body Diameter: 3
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 18.63
- Cylinder Color: Gray
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Extended Length: 25.4
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3
- Minimum Lift: 1.63
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shaft Diameter: 1
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: CENTER OF EYELET
- Spring Rate: 600
- Spring Rate Type: Linear
- Travel Length: 6.77
- Upper Mount Type: Mounting Plate
- Valving Type: Compression: Linear
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 33.0000 x 15.0000 x 10.0000 inches
- Weight: 85.0000 POUNDS
