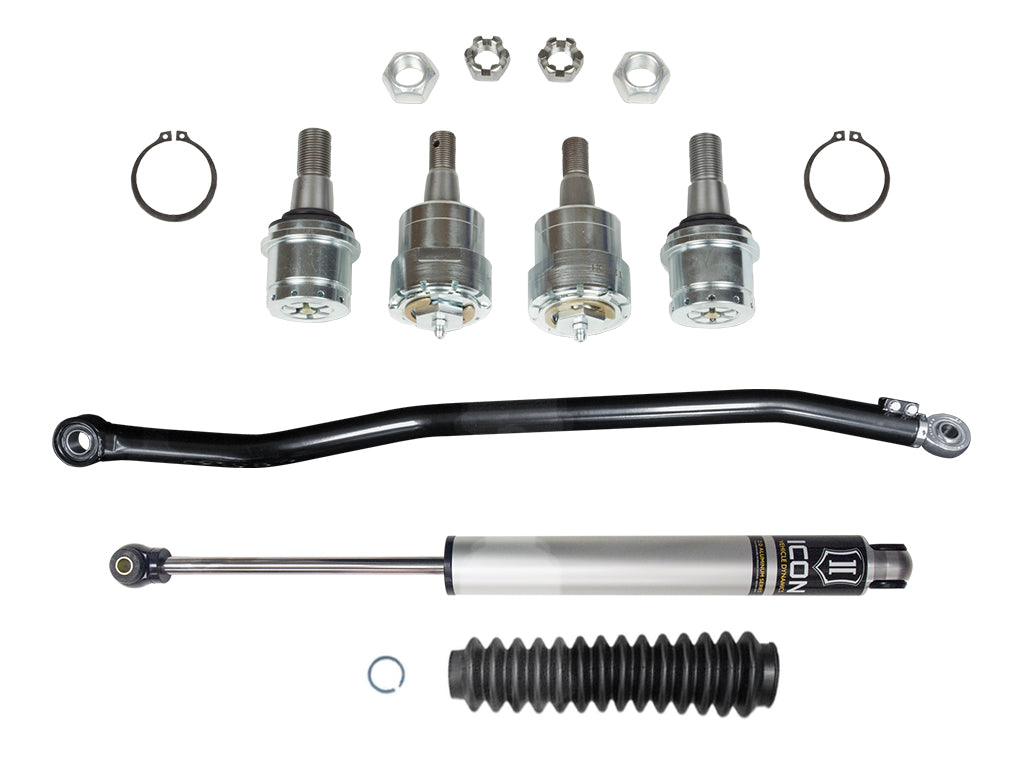

ICON 2009-2013 Ram 2500/2009-2012 Ram 3500 4WD Ultimate Front End Kit Stage 2

Rounding out Stage 2 is a stock-replacement steering stabilizer based on the ICON 2.0 Aluminum Series shock absorber line, and has been specifically tuned to compensate for the additional weight of larger wheels and tires on the RAM 3/4-ton trucks. The ICON 2.0 stabilizer is a direct fit replacement, meaning install is as simple as removing the original unit, and bolting up the ICON part in its place. Ease of installation combined with Increased damping ability over stock, a corrosion-resistant shock body, and a fully rebuildable design make the ICON steering stabilizer the best choice for replacing or upgrading worn out 2009-2013 Ram 2500/3500 components.

• Full set of genuine Dynatrac front upper and lower ball joints
• On-vehicle adjustable for precise track alignment
• Constructed with CNC machined and bent 1 1/2" x .250 wall 1026 seamless DOM tubing
• Allows for full suspension articulation without binding
• Nitrogen charged monotube steering stabilizer design with internal reservoir
• Internal floating piston design eliminates dead zone typical in emulsion shocks
• 6063 Anodized aluminum body for superb heat dissipation, excellent corrosion resistance
• 6061 aluminum rod end and internals insure strength and durability
• Polyurethane bushings and zinc plated sleeves for OE factory type fitment
• Improves steering feel and vehicle control
• CNC machined, high-strength components
• Heat-treated, high-strength billet bodies with chromoly stems
• Heat-treated, precision-ground stainless-steel ball
• Sealed, greaseable design and PTFE coated wear points ensure long service life
• On-vehicle rebuildable design

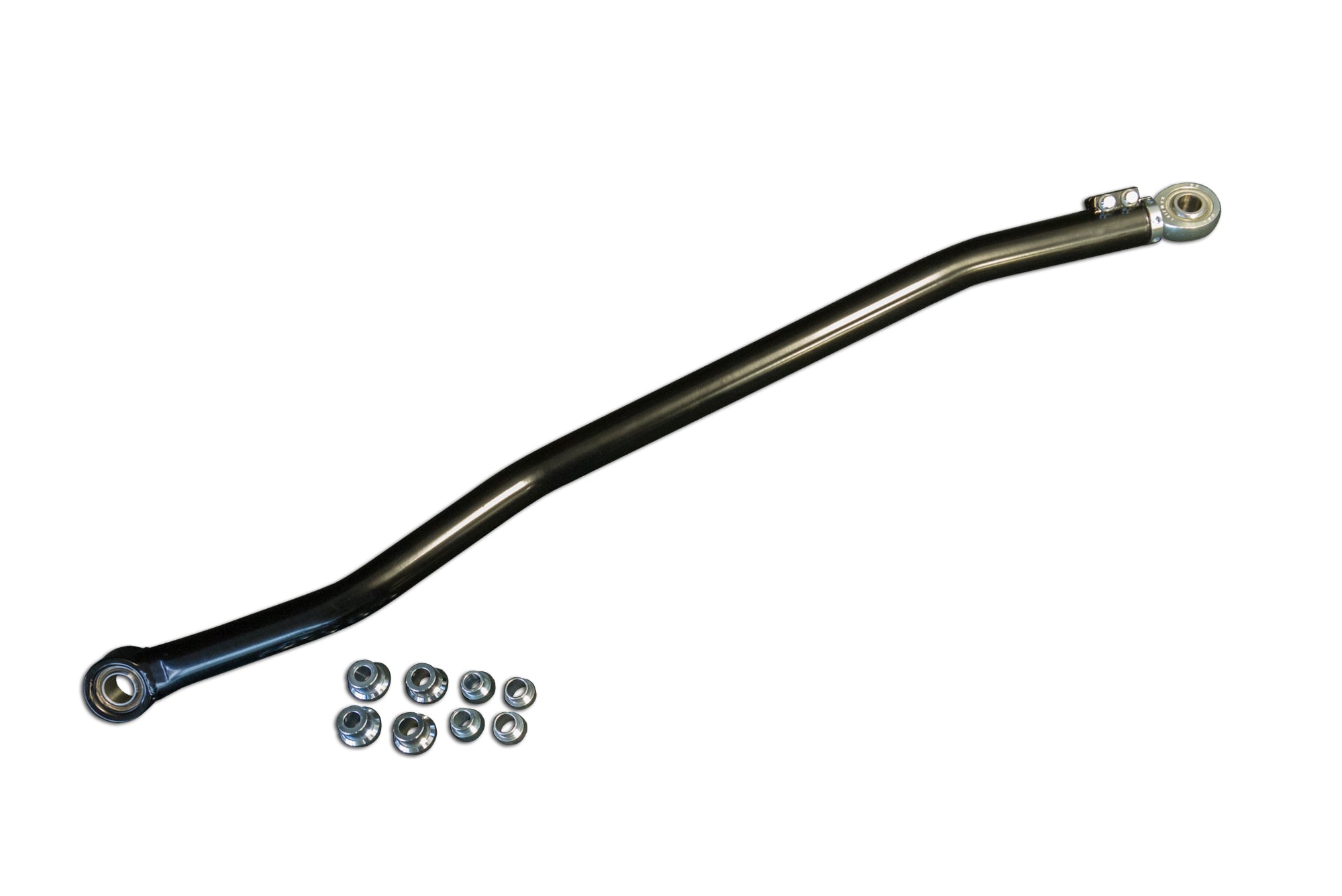

• Track bar uses upgraded 1" uniball on the driver side and PTFE lined rod end on the passenger side produces minimal to no deflection
• Easy install using OEM mounts and included application-specific hardware

Vehicle Specific

• ICON 09-13 DODGE RAM 2500/3500 STAGE 2 ULTIMATE FRONT END KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103429854
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Adjustable: Yes
• Adjustable Damping: No
• California Prop 65 Warning: Yes
• Cotter Pin Hole: Yes
• Dust Boot Included: Yes
• Grade Type: Heavy Duty
• Grease Fitting Included: Yes
• Greaseable: Yes
• Mount Type: Press In

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 43.0000 x 3.0000 x 3.0000 inches
• Weight: 30.0000 POUNDS
