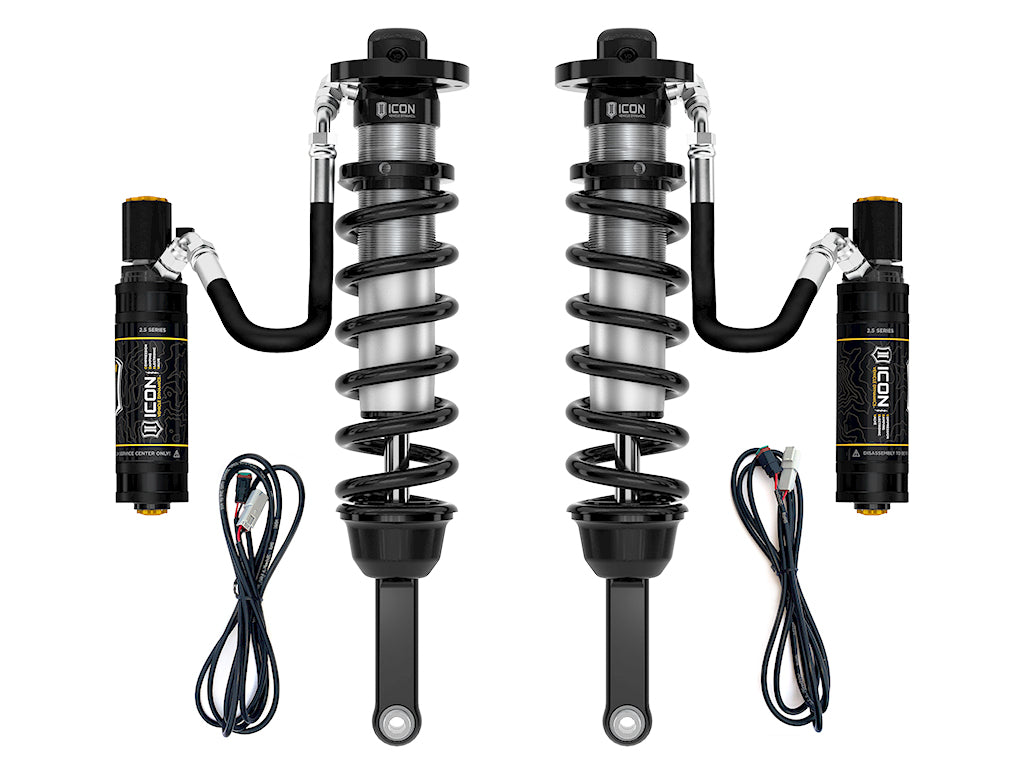

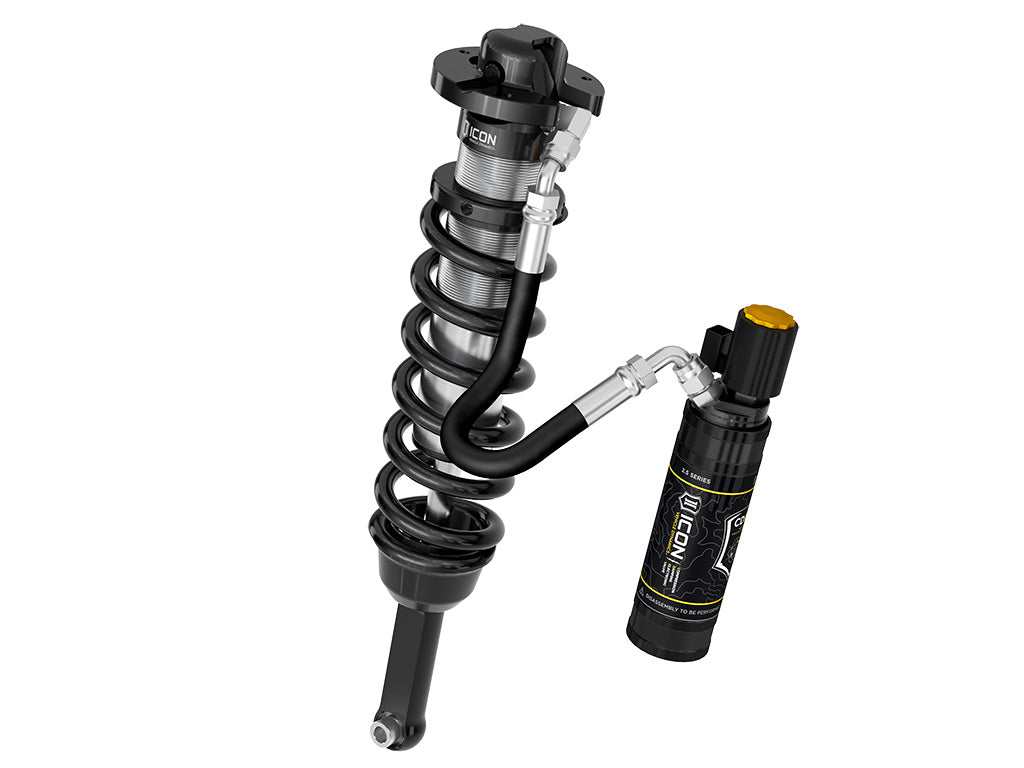

Continue shoppingICON 2010-2024 Toyota 4Runner 0-3.5" Lift V.S. 2.5 Series Extended Travel Coilover Kit Remote Reservoir W/ CDEV 700 Lbs/in Coils
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$2,972.27
-0%
Regular price
$2,972.27
Regular price
$2,972.27
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Bolt-on kit - no cutting or welding necessary for installation
- 100% Rebuildable
- 100% Revalveable
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 0-3.5" of lift height over stock
- ICON engineered coil springs with 700 lbs/in spring rate
- External reservoirs to attain cooler operating temperatures during extended off-road use
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- FK rod end bearings for extended longevity and minimal deflection
- ICON 10-24 4RUNNER EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT 700LB
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103423869
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: No
- 10107: 700
- 10527: Yes
- 10528: Yes
- 10530: Active
- 10535: 3.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Damping: Yes
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 17.42
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- Extended Length: 22.57
- Gas Charged: yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3.5
- Minimum Lift: 0
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate Type: Linear
- Travel Length: 5.16
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 8.0000 inches
- Weight: 64.0000 POUNDS
