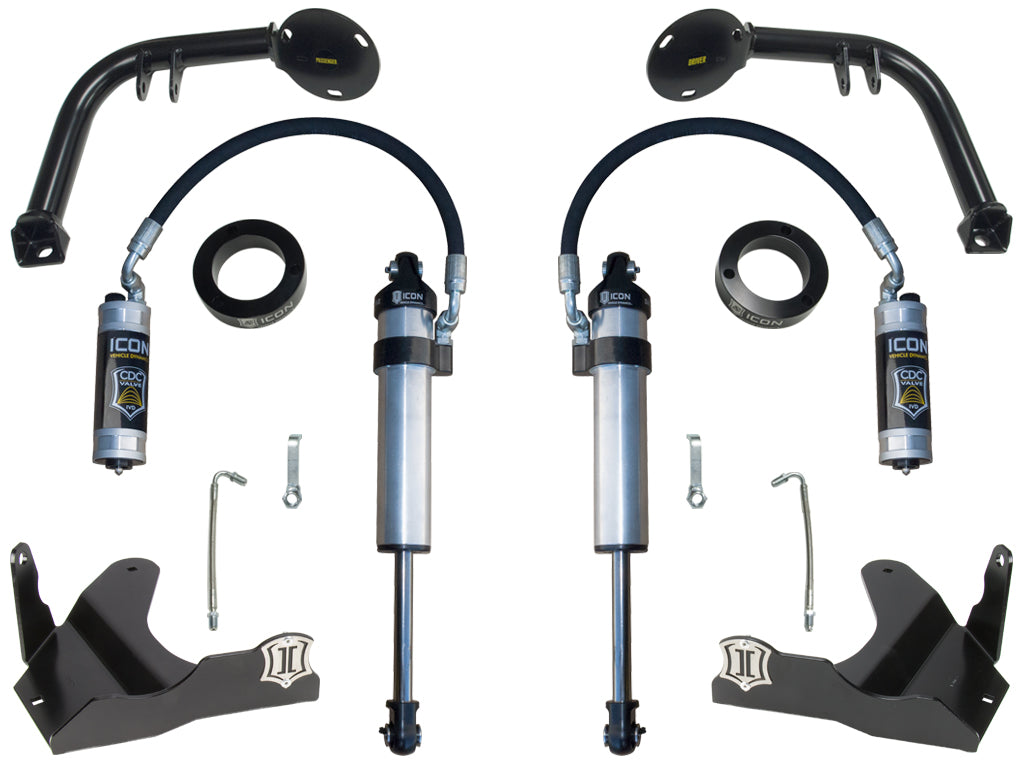

ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser Stage 2 S2 Secondary Shock Upgrade System

The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.

• Drastically improves vehicle damping ability off-road
• Increased vehicle stability on-road
• Utilizes factory lower control arms
• Maintains OE track width
• Vehicle-specific tuned secondary shocks provide increased damping and oil volume
• CDC Valve technology allows for quick and easy compression damping adjustment
• 2.5 Aluminum Series secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Shocks are fully rebuildable and revalveable
• Mostly bolt-on design makes for straightforward install

Vehicle Specific

• ICON 10-24 4RUNNER/10-14 FJ S2 STAGE 2 UPGRADE SYSTEM

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103417271
• 30: Yes
• 48: Eyelet
• 49: Eyelet
• 502: 0.875
• 2327: 2.5
• 2328: Oil
• 2329: Aluminum
• 3085: Single Tube
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: No
• 10526: Digressive
• 10527: Yes
• 10528: No
• 10530: Passive
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Adjustable Damping: Yes
• Bushings Included: Yes
• California Prop 65 Warning: Yes
• Cylinder Color: Grey
• Cylinder Finish: Anodized
• Damping Adjustment Type: Manual
• Gas Charged: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Shaft Material: Chrome
• Shock Mounts Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 62.0000 POUNDS
