ICON 2011-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD 0-3.5” Lift Front V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir W/ CDXS Pair

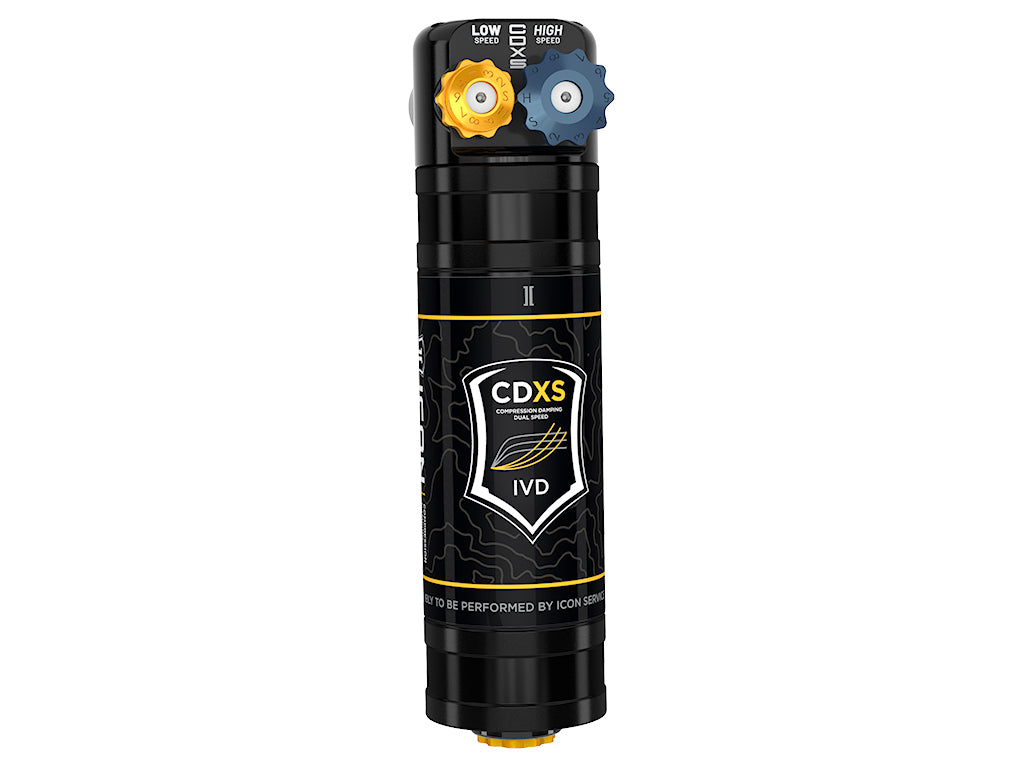

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

• Compatible with 0-3.5" of front lift over stock
• Press in, bonded rubber bushing/bar pin assembly damps road vibration and provides OE factory type fitment
• 6061 aircraft grade aluminum CNC machined components
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• Extended travel length requires aftermarket front upper control arms and provides maximum wheel travel
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with remote reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft

Vehicle Specific

• ICON 11-26 GM 2500/3500 HD 0-3.5" FRONT VS 2.5 RR CDXS PAIR

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103436258
• 30: Yes
• 37: 19.61
• 40: Yes
• 48: Clevis
• 49: Bar Pin
• 50: NO
• 51: Yes
• 107: 14.08
• 359: 2.5
• 408: Center of Clevis Holes
• 409: Flats on Bar Pin
• 905: 2.25
• 3390: Performance
• 7586: 5.53
• 9783: No
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Cylinder Color: Gray
• Cylinder Diameter: 2.5
• Cylinder Material: Aluminum
• Damping Adjustment Type: Dual Speed/Manual
• Damping Type: Oil
• External Reservoir: Yes
• Reservoir Type: Remote
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Shaft Material: Chrome
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 30.0000 POUNDS
