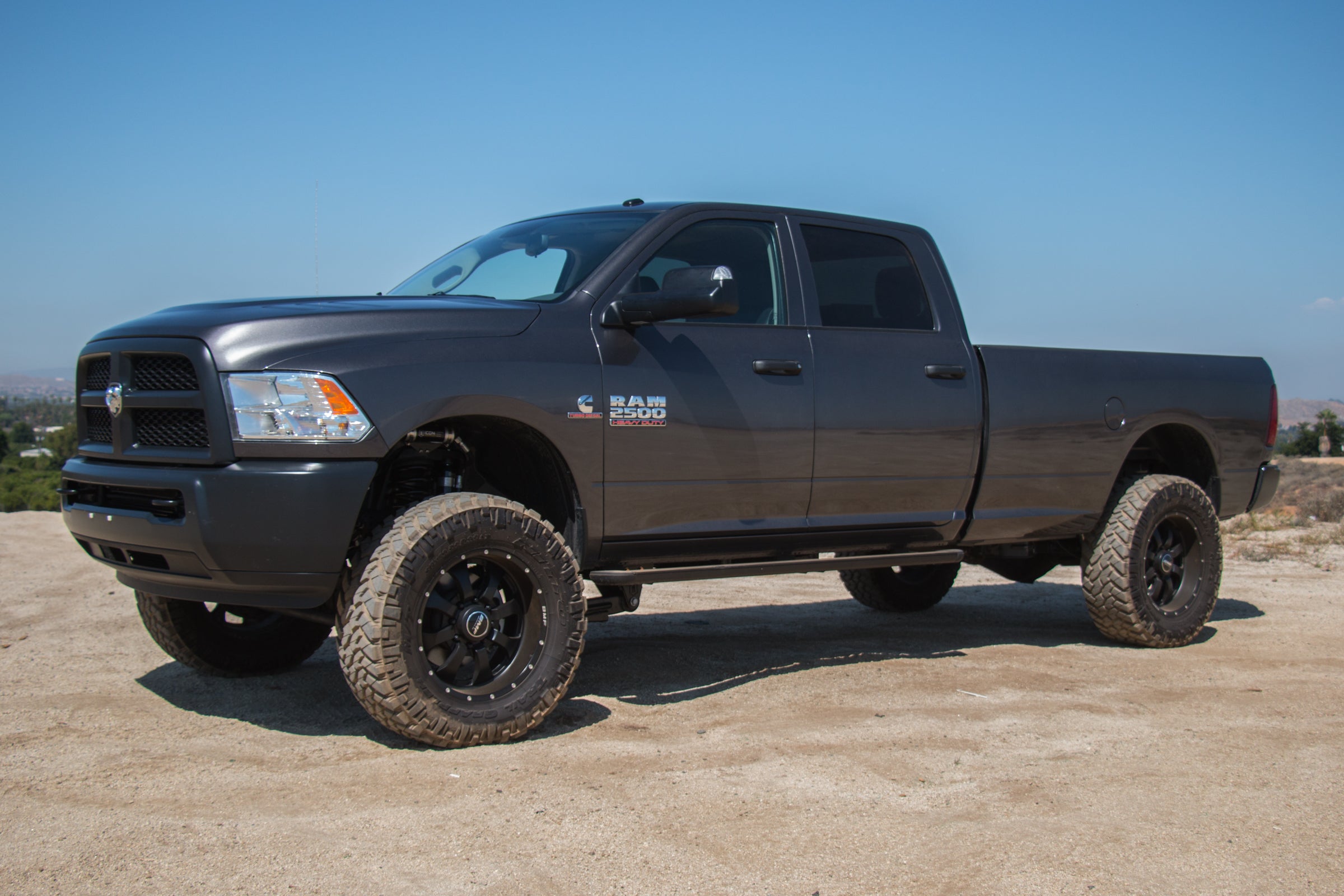

ICON 2014-2026 Ram 2500 4WD Diesel Coil Spring Rear 4.5" Lift Stage 2 Suspension System W/ Performance Rear Coil Springs

This system includes triple-rate rear coil springs for a more compliant ride. The lighter initial rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary ride rate allows the truck to maintain exceptional ride quality, while the aggressive third overload rate helps prevent bottom outs and provides payload support (at a reduced ride height). These performance systems were specifically developed for the 3/4 ton truck enthusiast who enjoys aggressive off-road adventures and does not tow or haul heavy loads.

• ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
• Level stance from front to rear of vehicle
• Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
• Vehicle specific tuned front 2.5 Aluminum Series remote reservoir shocks provide superior damping and ride quality
• Increased wheel travel and suspension performance over stock
• Adjustable front track bar realigns front axle and improves strength
• PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
• Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
• Performance triple rate rear coil springs provide 2" of rear lift and more compliant ride quality
• 2.5 Aluminum Series piggyback reservoir rear shocks compliment rear coils in both length and damping tune for increased rear wheel travel and suspension performance

Vehicle Specific

• ICON 14-26 RAM 2500 4WD 4.5" STAGE 2 SUSPENSION SYSTEM (PERFORMANCE)

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103436838
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 4.5
• 5782: Open
• 5783: Open
• 7325: 2
• 10107: 412
• 11410: 4.5
• 11411: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Front Spring Rate Type: Progressive Dual Rate
• Minimum Lift Front: 2.5
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5
• Rear Spring Rate: 230
• Rear Spring Rate Type: Progressive Triple Rate
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 19.0000 x 10.0000 inches
• Weight: 285.0000 POUNDS
