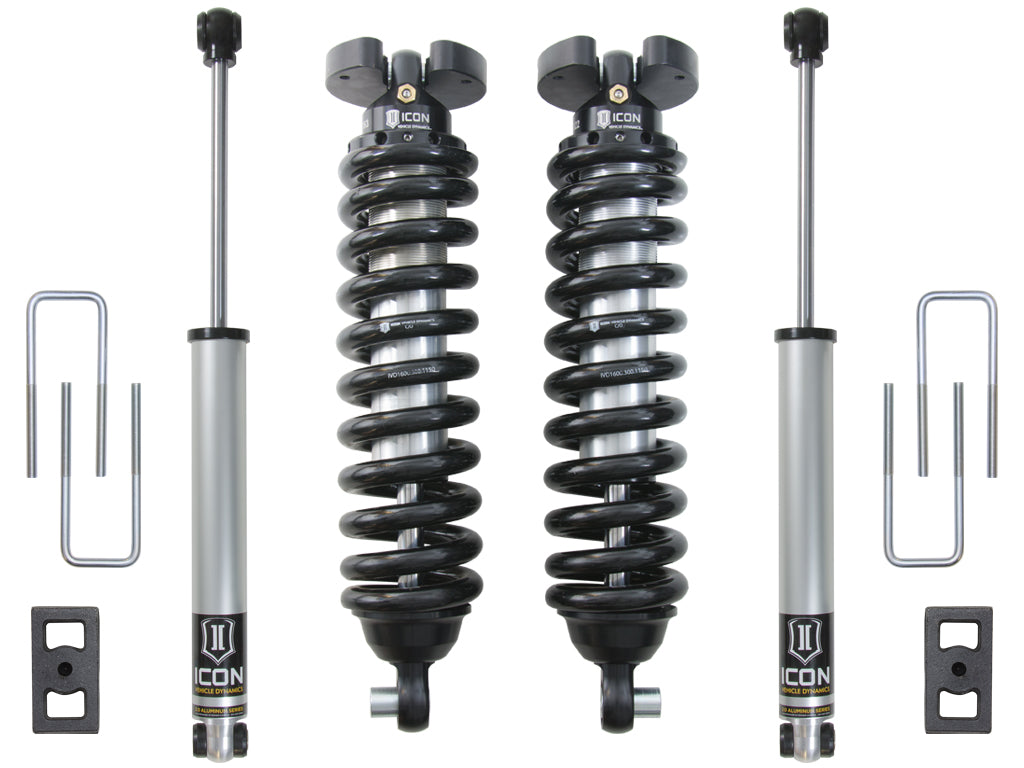

The 2016-2023 Nissan Titan XD is a truck with a heavy-duty build that’s aimed to blend the lines between ½ ton efficiency and ¾ ton capability. With this in mind, ICON Vehicle Dynamics has developed a complete suspension system designed from the ground up for improved performance on and off-road, increased wheel travel over stock, and the best ride quality on the market. The Stage 1 system includes ICON 2.5 Series coilovers, 2.0 Aluminum Series rear shocks, rear lift blocks, and u-bolts. These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none. The ICON Vehicle Dynamics 2016-2023 Nissan Titan XD Stage 1 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Fits 2WD / 4WD applications
- 100% bolt-on system
- Increased ride quality over stock with no change in towing capacity
- Approximately 32% increased front wheel travel over stock
- Adjustable coilovers provide 2.5-3" of lift height
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
- FK Rod End bearings for extended longevity and minimal deflection
Vehicle Specific
- ICON 16-23 NISSAN TITAN XD 3" STAGE 1 SUSPENSION SYSTEM
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103419459
-
30: Yes
-
2064: Steel
-
2371: Yes
-
3096: Black
-
3097: Yes
-
3390: Performance
-
5520: 3
-
7325: 2
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
-
California Prop 65 Warning: Yes
-
OEM Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
-
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 26.0000 x 13.0000 x 7.0000 inches
-
Weight: 84.0000 POUNDS
